Chapter 5 Component Definition and Maintenance
1. Press F9 [DIAGS] key on the main screen to display ‘Diagnostics’ screen
as shown in the picture below.

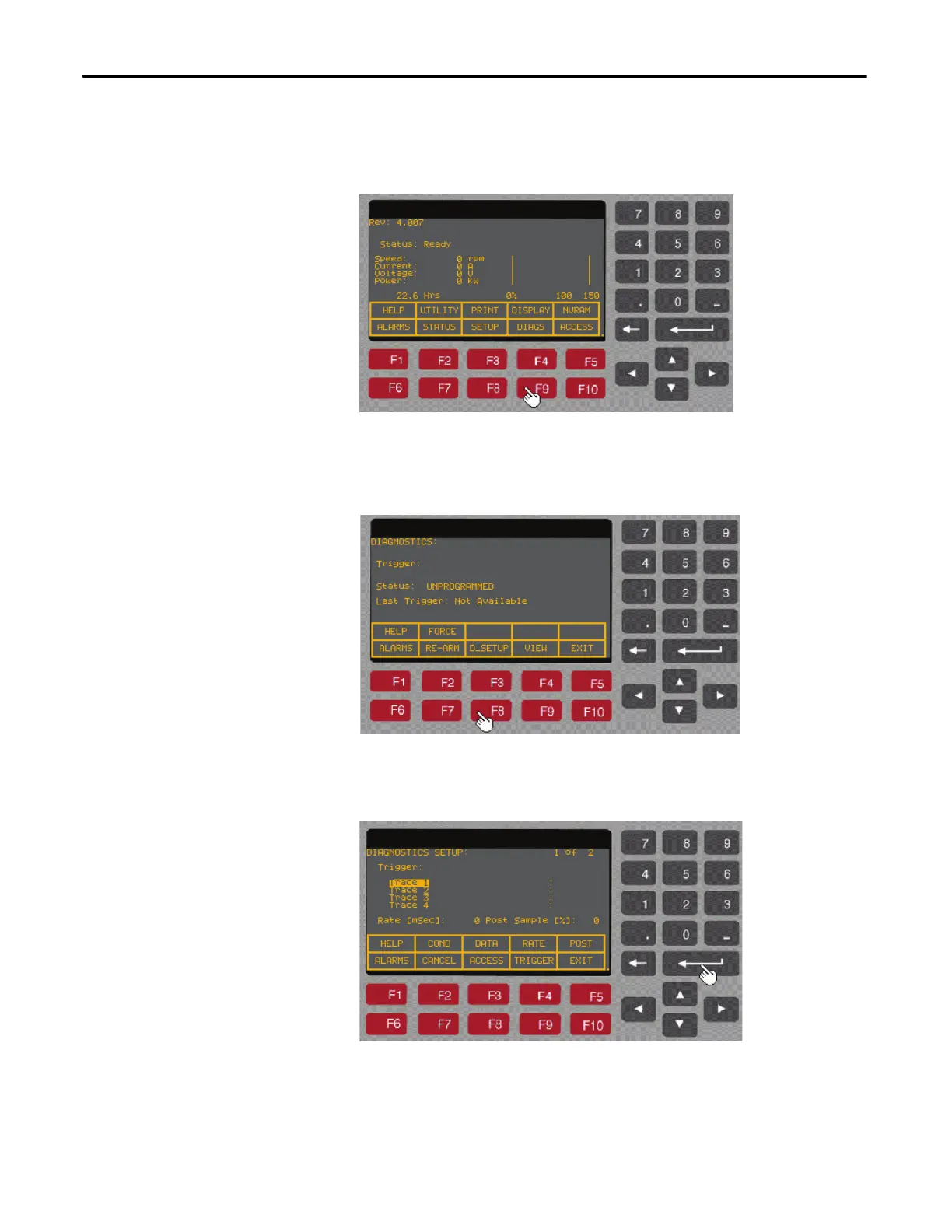

Figure 317 - Diagnostics screen
2. Press F8 [D_SETUP]. The display will change to ‘Diagnostics Setup’
screen as shown in the picture below.
Figure 318 - Diagnostics Setup
3. With Tra c e - 1 selected, press Enter key as shown in the picture below.
Figure 319 - Trace-1
To Next Page
