Chapter 2 Drive Installation

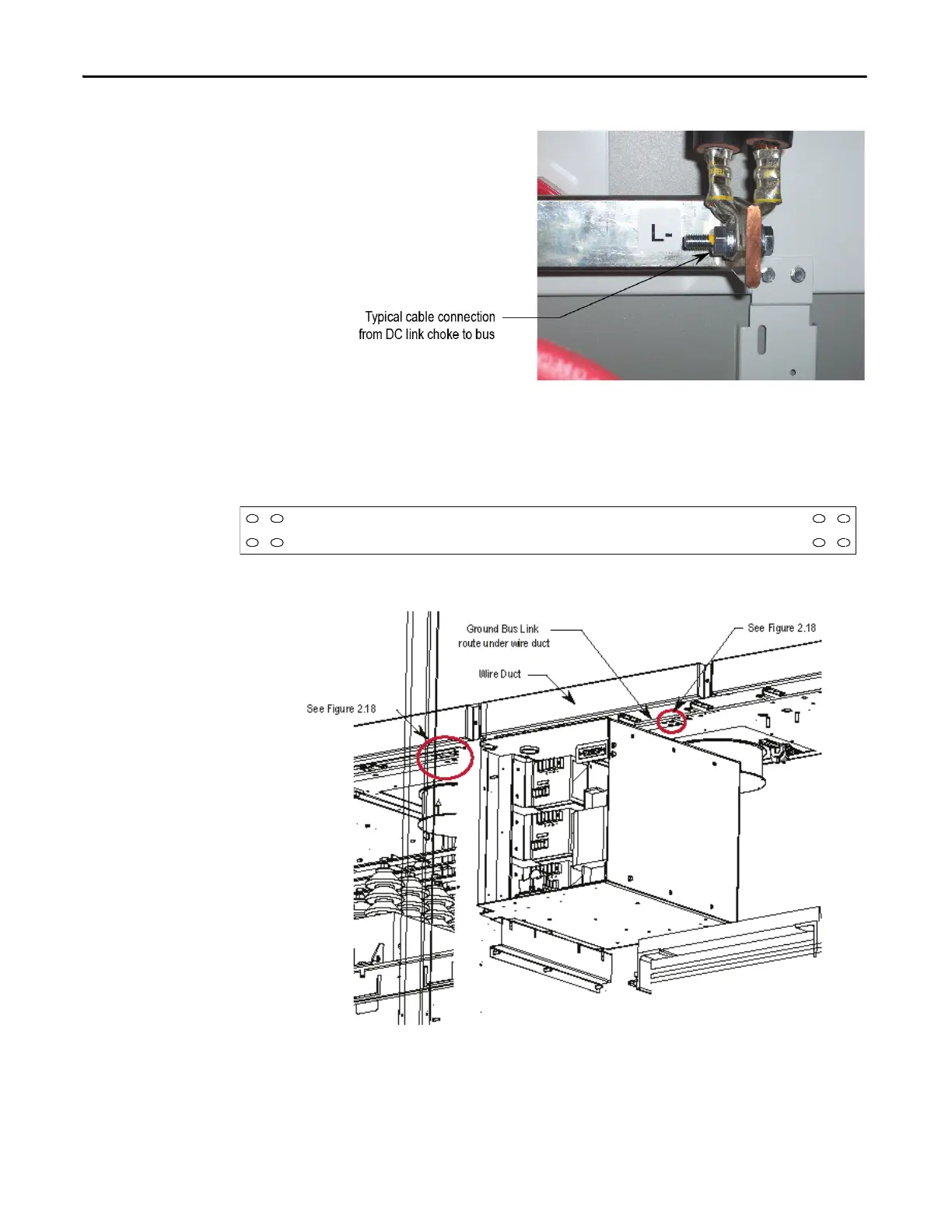

Figure 26 - DC Link Choke Cabinet Typical Cable Connection
• Connect Ground Bus Link from top left of DC Link Choke cabinet to
ground bus in adjacent capacitor cabinet by sliding underneath wire duct.
Use supplied hardware.
Figure 27 - Ground Bus Link
Figure 28 - Install Ground Bus Link
