Chapter 2 Drive Installation

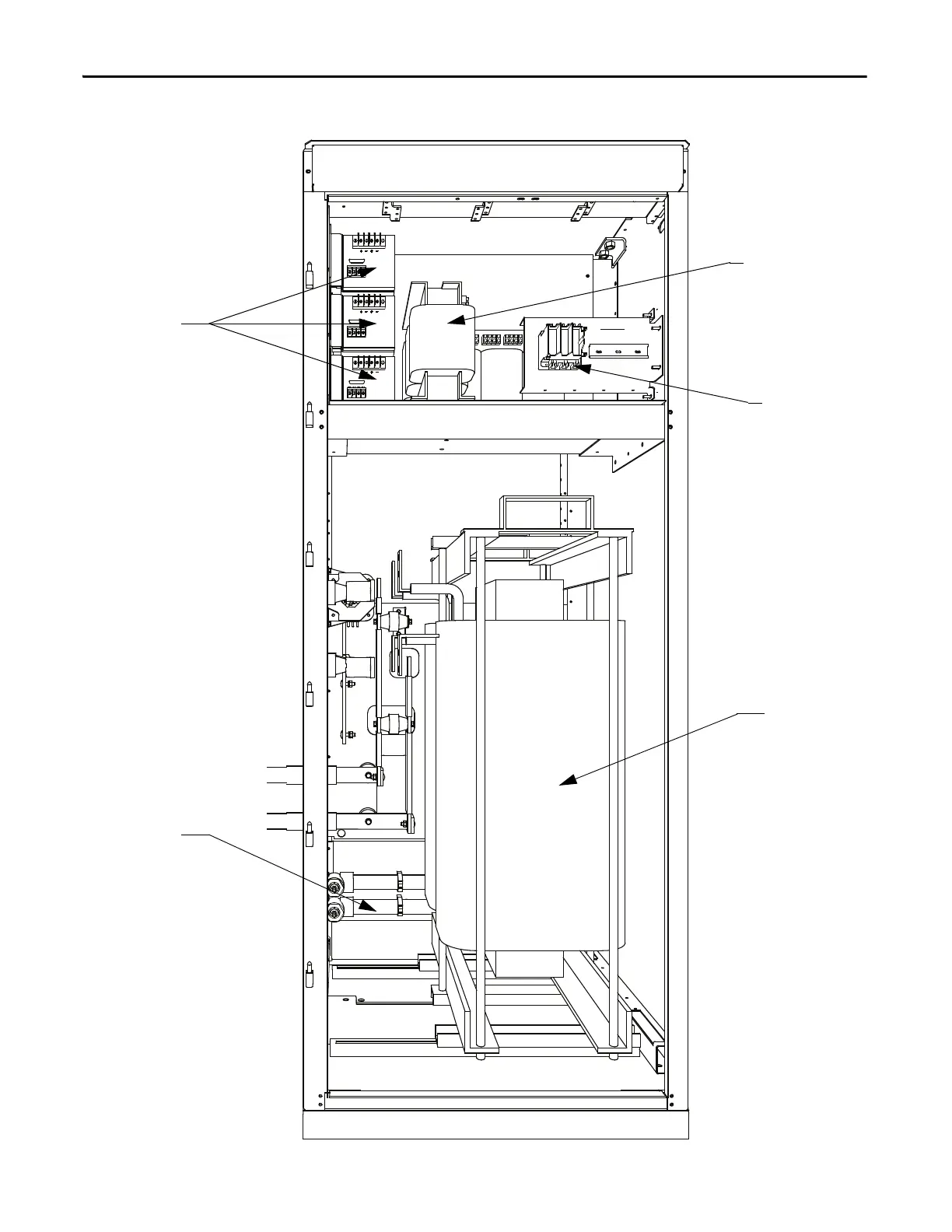

Figure 55 - DC Link Inductor Cabinet
Liquid-cooled
DC Link Reacotr
Fuse Blocks
Power
Transformer
AC/DC Power
Supplies
Cooling Pipes
