14 Rockwell Automation Publication 2711R-IN001B-EN-P - September 2022
PanelView 800 HMI Terminals Installation Instructions

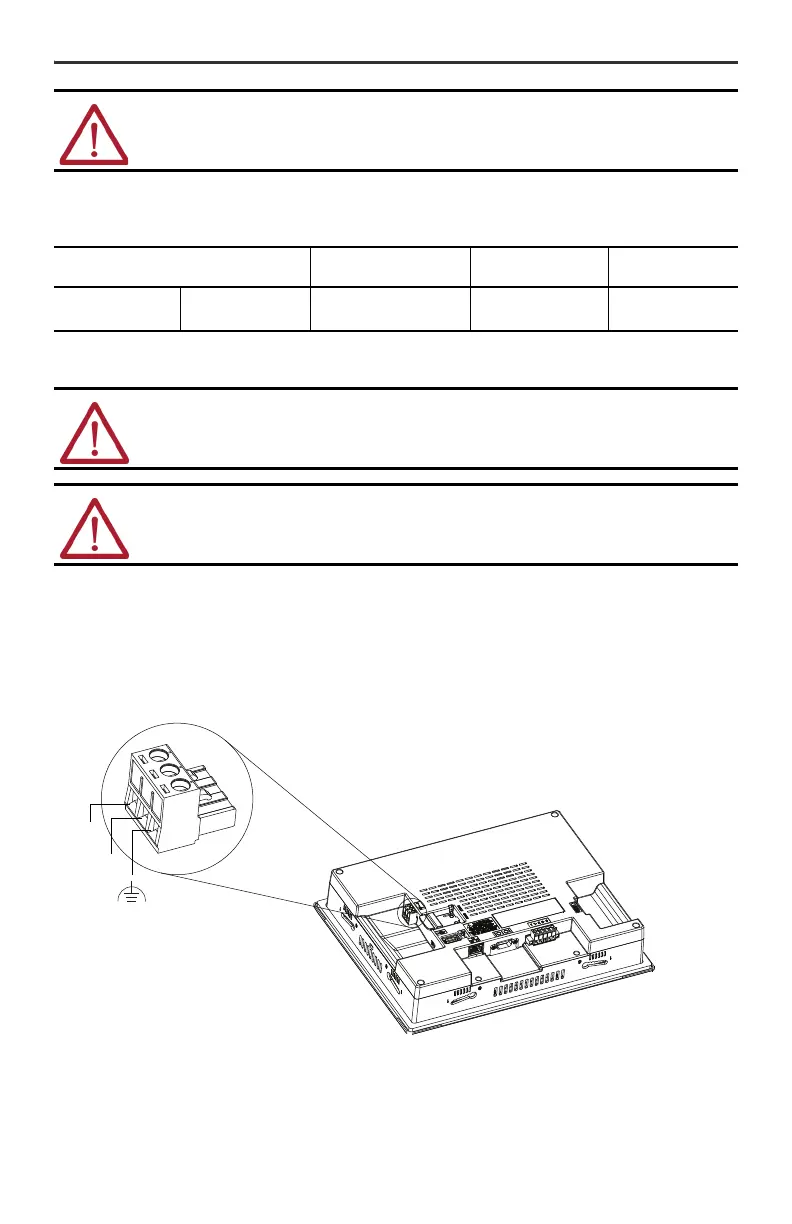

The input power terminal block supports these wire sizes.
Follow these steps to connect power.
1. Verify that the terminal is not connected to a power source.
2. Secure the 24V DC power wires to the terminal block.
3. Secure the functional earth ground wire to the functional earth ground terminal screw on the terminal
block.
4. Apply 24V DC power to the terminal.
WARN ING: If you connect or disconnect wiring while the power is on, an electrical arc can
occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
Wire Specifications for Input Power Terminal Block
Wire Type
Dual-wire Gauge
(1)
(1) Two-wire maximum per terminal.
Single-wire Gauge
Terminal Screw
Torque
Stranded or solid Cu 90 °C (194 °F)
0.33…1.31 mm
2
(22…16 AWG)
0.33…2.08 mm
2
(22…14 AWG)
0.45…0.56 N•m
(4…5 lb•in)
ATTENTION: Disconnect all power before installing or replacing components. Failure to
disconnect power may result in electrical shock or damage to the terminal.
ATTENTION: Do not wire more than 2 conductors on any single terminal.
Functional earth ground
to ground bus
DC+
DC-
