B-12 Accessories and Dimensions
PowerFlex 40 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22B-UM001I-EN-E

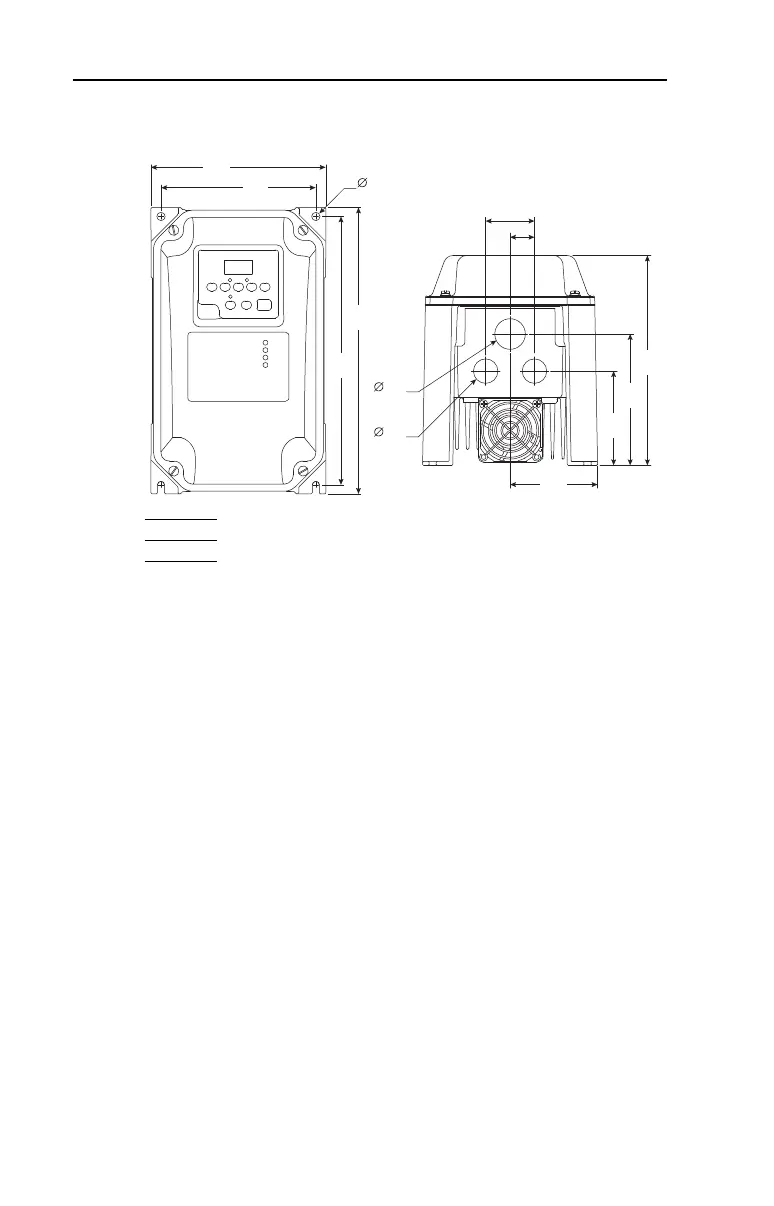

Figure B.7 IP66, NEMA Type/UL Type 4X – Dimensions are in millimeters and (inches)
Weights are in kilograms and (pounds).
Weight
5.2 (11.5)
165
(6.50)
146
(5.75)
6.5
(0.26)
270
(10.63)
253
(9.96)
82.5
(3.25)
46
(1.81)
23
(0.91)
89
(3.50)
124
(4.88)
198
(7.80)
28
(1.10)
22
(0.87)
