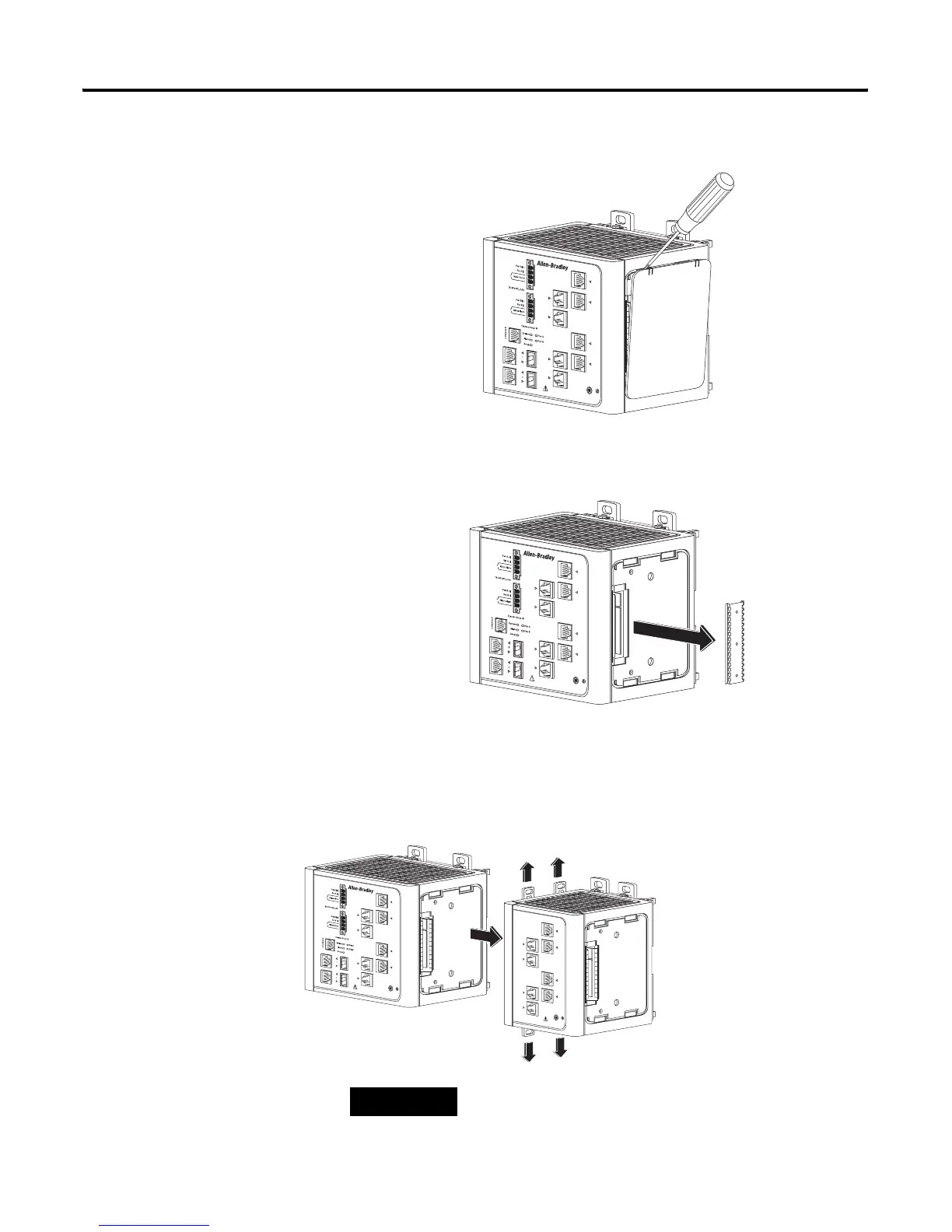

If necessary, use a screwdriver to pry open the side panel.

2. Remove the protective EMI-connector cover from the side panel.

3. Push the upper module latches up and the lower module latches down.

Then slide the switch and module together.

31779-M

31787-M

31780-M

TIP

The expansion module is shown with the side panel removed.

Do not remove this panel unless you plan to install another

module.
