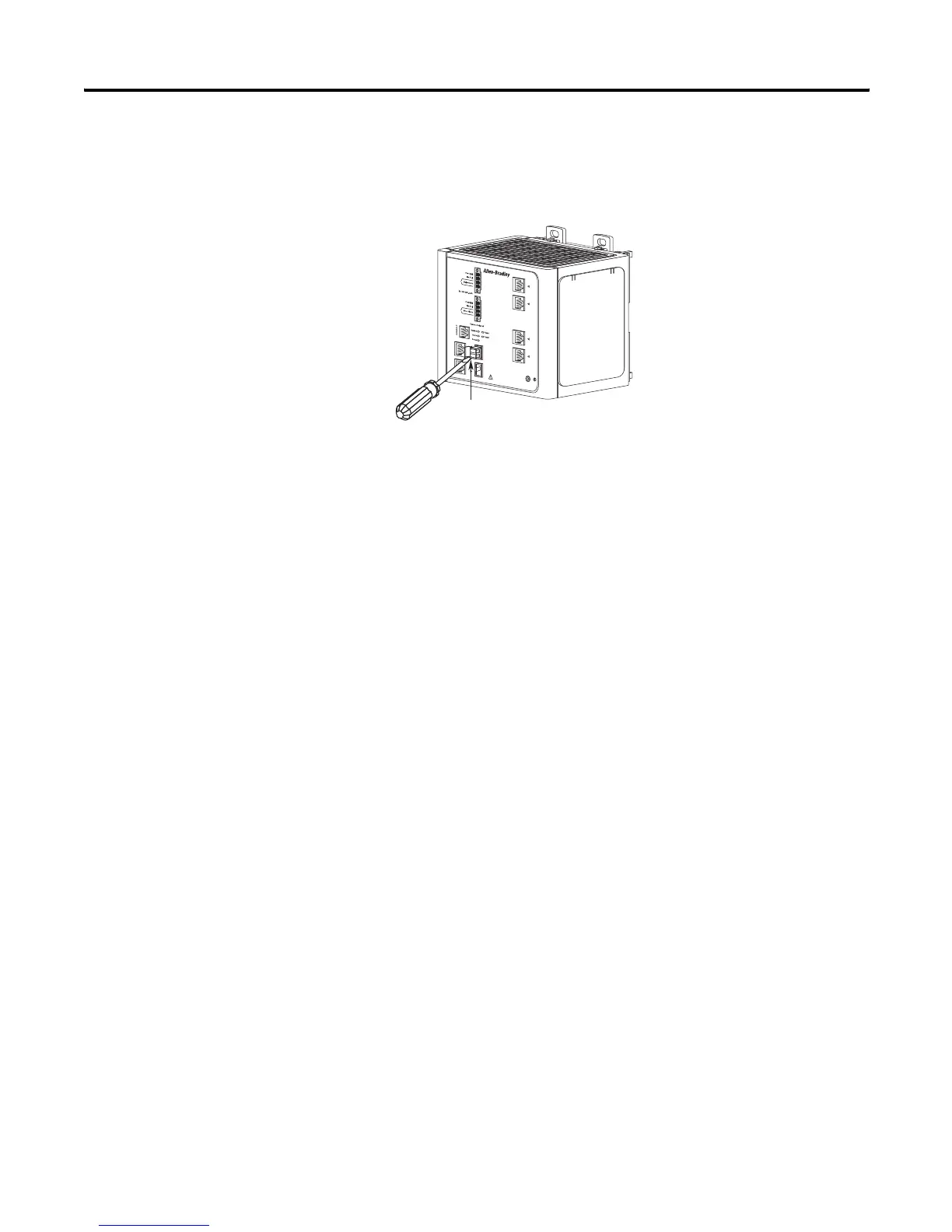

4. Unlock and remove the SFP module, as shown the following figure.
5. If the module has a bale-clasp latch, pull the bale out and down to eject
the module.
If the bale-clasp latch is obstructed and you cannot use your index
finger to open it, use a small, flat-blade screwdriver or other long,
narrow instrument to open the bale-clasp latch.
6. Grasp the SFP module between your thumb and index finger, and
carefully remove it from the module slot.
7. Place the removed SFP module in an antistatic bag or other protective
environment.
.
Bale Clasp Latch
