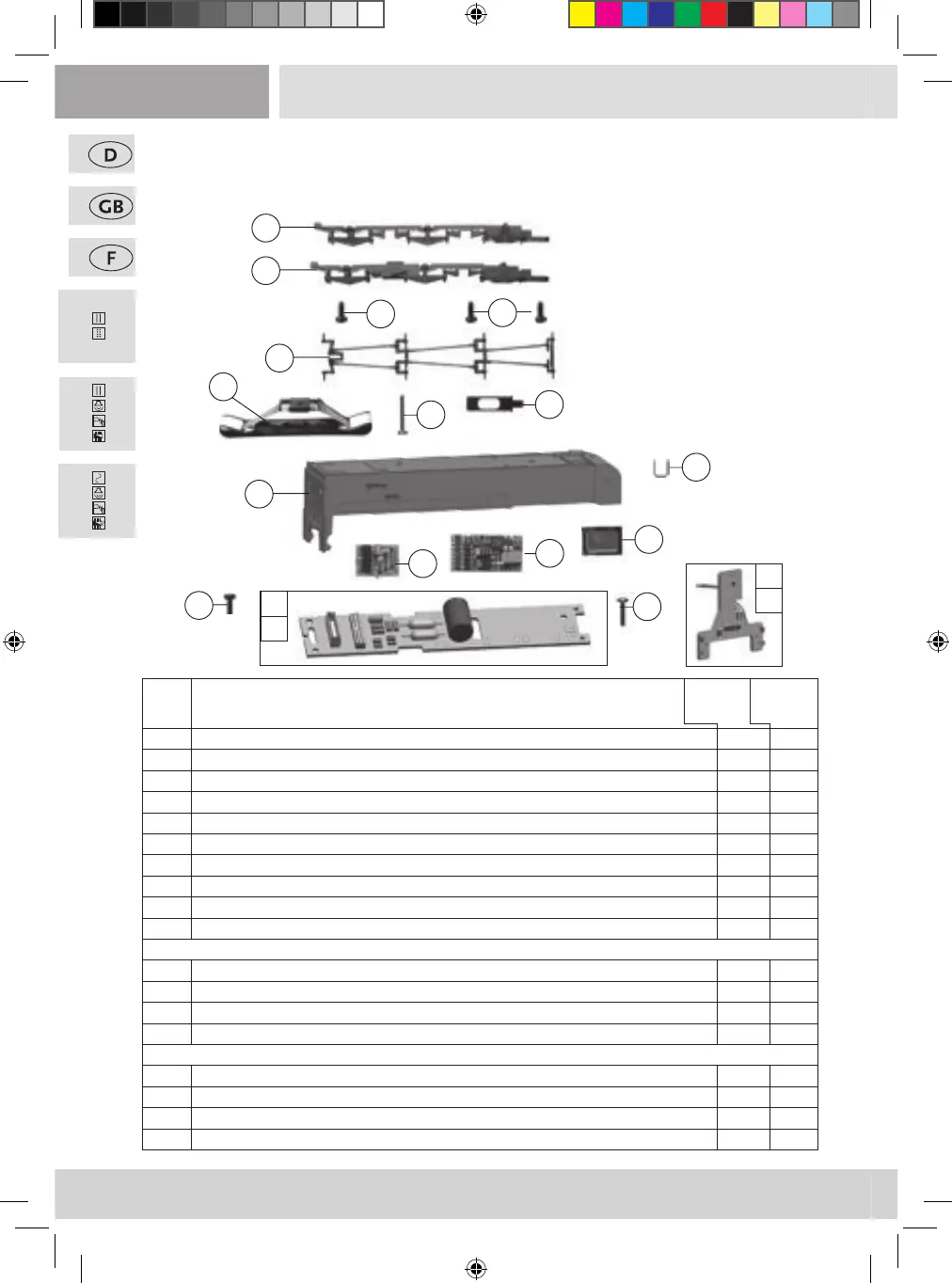

roco BR 10 002 - Sound System and AC Parts; Sound System Spare Parts; AC Operation Spare Parts

48
48
62193
68193
62192
Symbolische Darstellung
Symbolic Illustration
Illustration figurative
2
1
3
16
18
3
1 Lokboden / Loco bottom / Base de locomotive 105938 12
2 Bremsgestänge / Brake rod / Timonerie de frein 105945 7
3 GF-Schraube M2x5 / GF-Screw M2x5 / GF-Vis M2x5 114966 3
4 GF-Schraube M1,6x4 / GF-Srew M1,6x4 / GF-Vis M1,6x4 114850 3
5 GF-Schraube M1,6x8 / GF-Srew M1,6x8 / GF-Vis M1,6x8 115037 3
6 Brückenstecker 16 Plux / Connector 16plux / Cavalier 16Plux 129630 8
7 Tenderplatine kpl. / Printed circuit ass
. for tender / Tendre carte de circuit imprimé 130766 20
8 T
enderaufsatz Öl lack. / Tender part / Essai d‘appel d‘ores 133228 9
9 Tender-LED-Platine - 5 LED´s / LED printed circuit ass. for tender / Tendre LED conseil d‘administration
130800 16
10 Gristange kurz / Handrail short / Manipuler, à court 130808 6
Sound
11 Sound-Steckdec.. 22 Plux / Sound-decoder 22plux / Décodeur audio 22Plux 129000 39
12 Lautsprecher / Loudspeaker / Haut-parleur 129524 16
13 Tenderplatine kpl. / Printed circuit ass. for tender / Tendre carte de circuit imprimé 130799 19
14 Tender-LED-Platine - 5 LED´s / LED printed circuit ass. for tender / Tendre LED conseil d‘administration 130944 16
AC-Wechselstrom
15 Schleifer / Slider / Moulin 86033 14
16 Lokboden / Loco bottom / Base de locomotive 106204 12
17 GF-Schraube M1,6x10 / GF-Screw M1,6x10 / GF-Vis M1,6x10 114881 3
18 Schleiferkontakt / Slider contact / Contacter 117483 4
