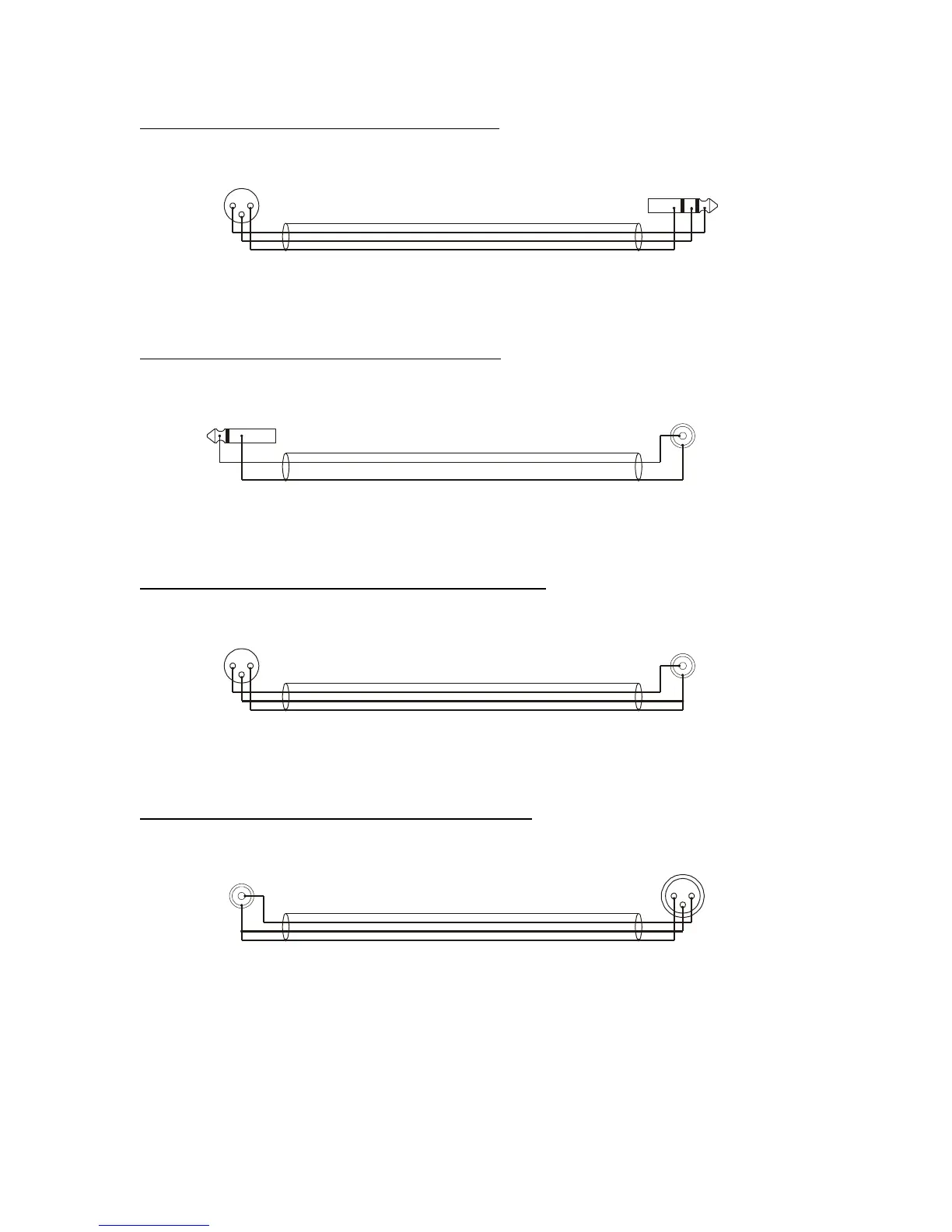

3) Symmetrical XLR female to JACK 3pole male cable:
Symmetrical
XLR 3 pole female
Symmetrical
JACK 3 pole 1/4 inch male
12
3
Used for connections between: microphone, amplifier, loudspeaker-processor, etc. and mixing
panel.
For stereo connections, you need 2 of these cables
4) Asymmetrical JACK 2 pole male to RCA male cable:
Asymmetrical
JACK 2 pole 1/4 inch male
Asymmetrical
RCA male
Used for connections between: electronic musical instrument, synthesizer, sampler, effects-
machine, amplifier, recorder, etc. and mixing panel.
For stereo connections, you need 2 of these cables
5) Symmetrical XLR female to asymmetrical RCA male cable:
Symmetrical
XLR 3 pole female
Asymmetrical
RCA male
12
3
Used for connections between: professional CD-player, professional MD-player, sampler, effects-
machine, etc. and mixing panel.
For stereo connections, you need 2 of these cables
6) Asymmetrical RCA male to symmetrical XLR male cable:
Asymmetrical
RCA male
Symmetrical
XLR 3 pole male
1
2
3
Used for connections between: professional recorder, sampler, effects-machine, amplifier, etc. and
mixing panel.
For stereo connections, you need 2 of these cables
