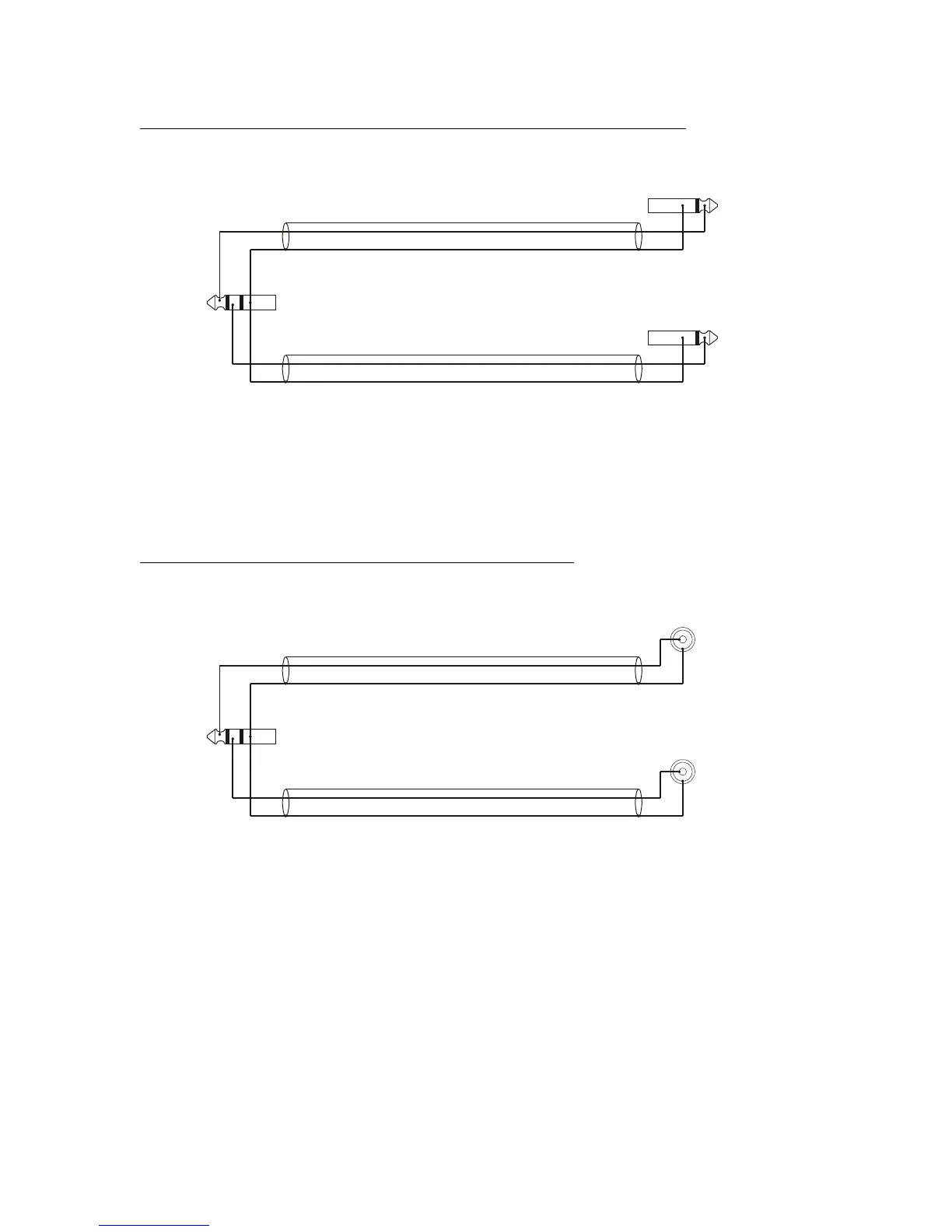

7) JACK 3 pole 1/4 inch male to 2 times JACK 2 pole 1/4 inch male (Y-split) cable:
JACK 2 pole 1/4 inch male
JACK 2 pole 1/4 inch male
Symmetrical
JACK 3 pole 1/4 inch male
Used for connections between: effects-machine, audio-filter, delay-loop, etc. and mixing panel.
For stereo connections, you need 2 of these cables.
The upper 2 pole JACK is the signal send cable, this has to be connected to the input of the effects-
machine.
The lower 2 pole JACK is the signal return cable, this has to be connected to the output of the
effects-machine.
8) JACK 3 pole 1/4 inch male to 2 times RCA male (Y-split) cable:
Symmetrical
JACK 3 pole 1/4 inch male
RCA male
Used for connections between: effects-machine, audio-filter, delay-loop, etc. and mixing panel.
For stereo connections, you need 2 of these cables
The upper RCA is the signal send cable, this has to be connected to the input of the effects-
machine.
The lower RCA is the signal return cable, this has to be connected to the output of the effects-
machine.
