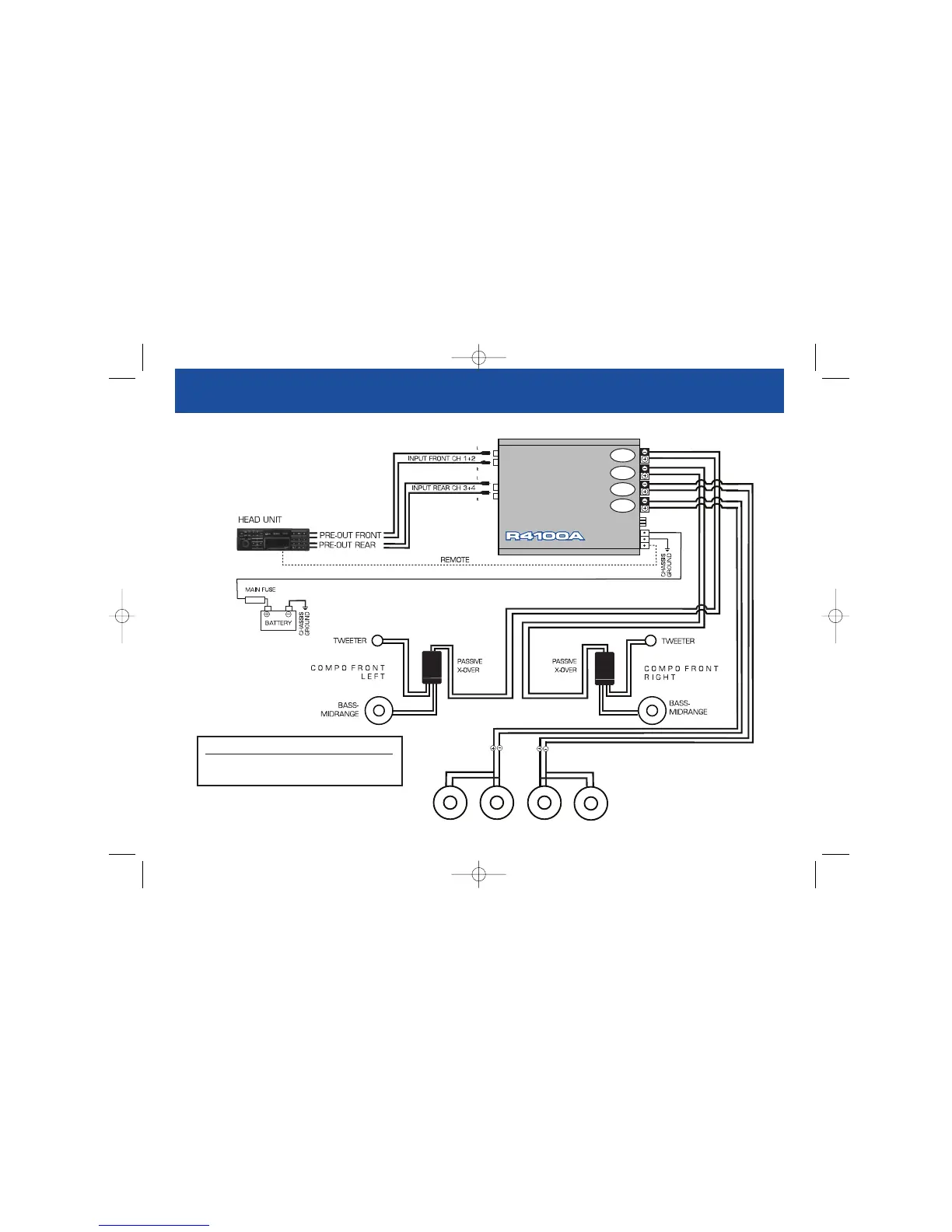

System Connecting Diagrams R4100A
16CM
KICKBASS SYSTEM
16CM
KICKBASS SYSTEM
CH4
CH3
CH1
CH2
OPERATION MODE SELECTOR
CH1/2 set to HP
CH3/4 set to BP
