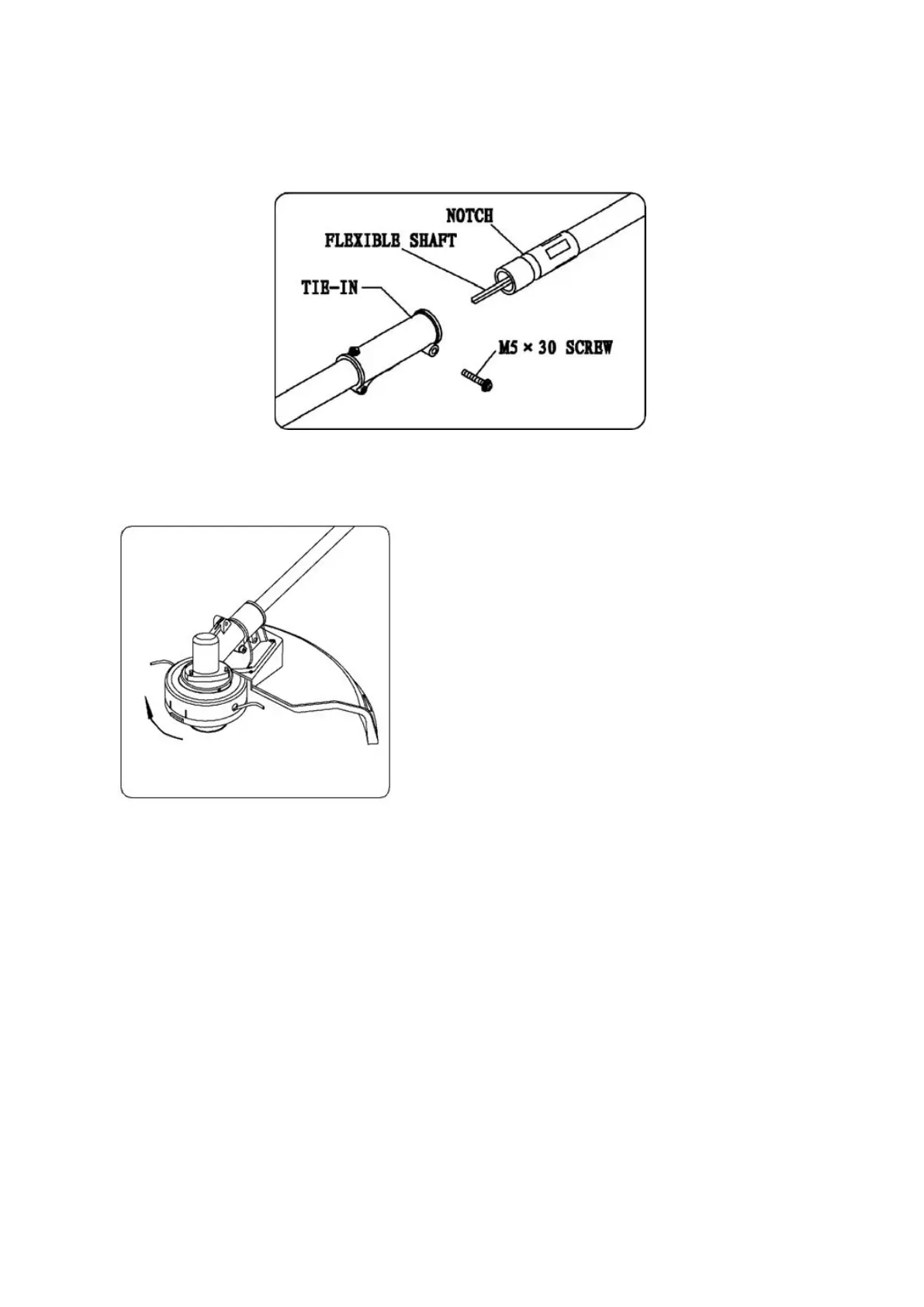

Fix the square head of flexible shaft onto the square hole of the connector and after fixing
the screw hole on the flexible shaft, then tighten it by a screw sized M5X20.
NYLON HEAD INSTALLATION
Align the holes on the shaft and adapter
and fix them with each other, then turn it
clockwise until securely tightened, lock it
as it is in the figure.
BLADE INSTALLATION
Install holder A, the tri-blade, holder B, teeth washeri in this order, then clamp with a
lefthand thread net. Align hole of gear case and holder A, and insert S=4 mm bar wrench.
Rotate blade-fastening nut withplug box wrench in clockwise direction until securely
tightened. Install the pin 2x16 and disjoin it.
