ROE Air Frame - Page 19

Air Frame Manual No. AF-180709
18

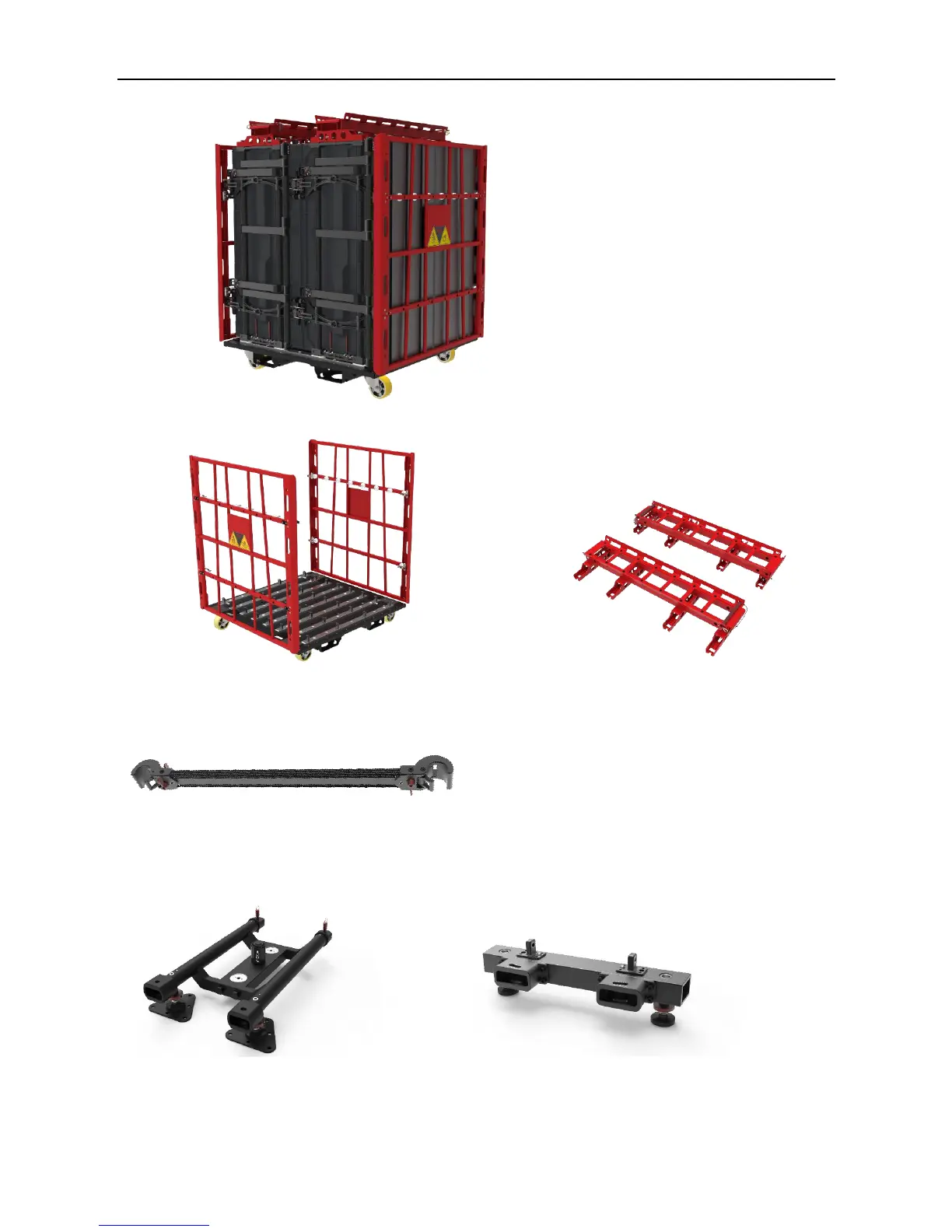

Full dolly:
1150 x 1277 x 1537mm (with stackers)
504kg
1150 x 1277 x 1429mm (no stackers)
490kg
Empty dolly: 85kg
Dolly Stackers:14kg/set
Baby arm:
640 x 50 x 60mm
0.875kg
Stacker base truss:
680 x 463 x 184mm
12.55kg
1W base stand:
600 x 180 x 180mm
6.8kg
