Air Frame Manual No. AF-180709
6

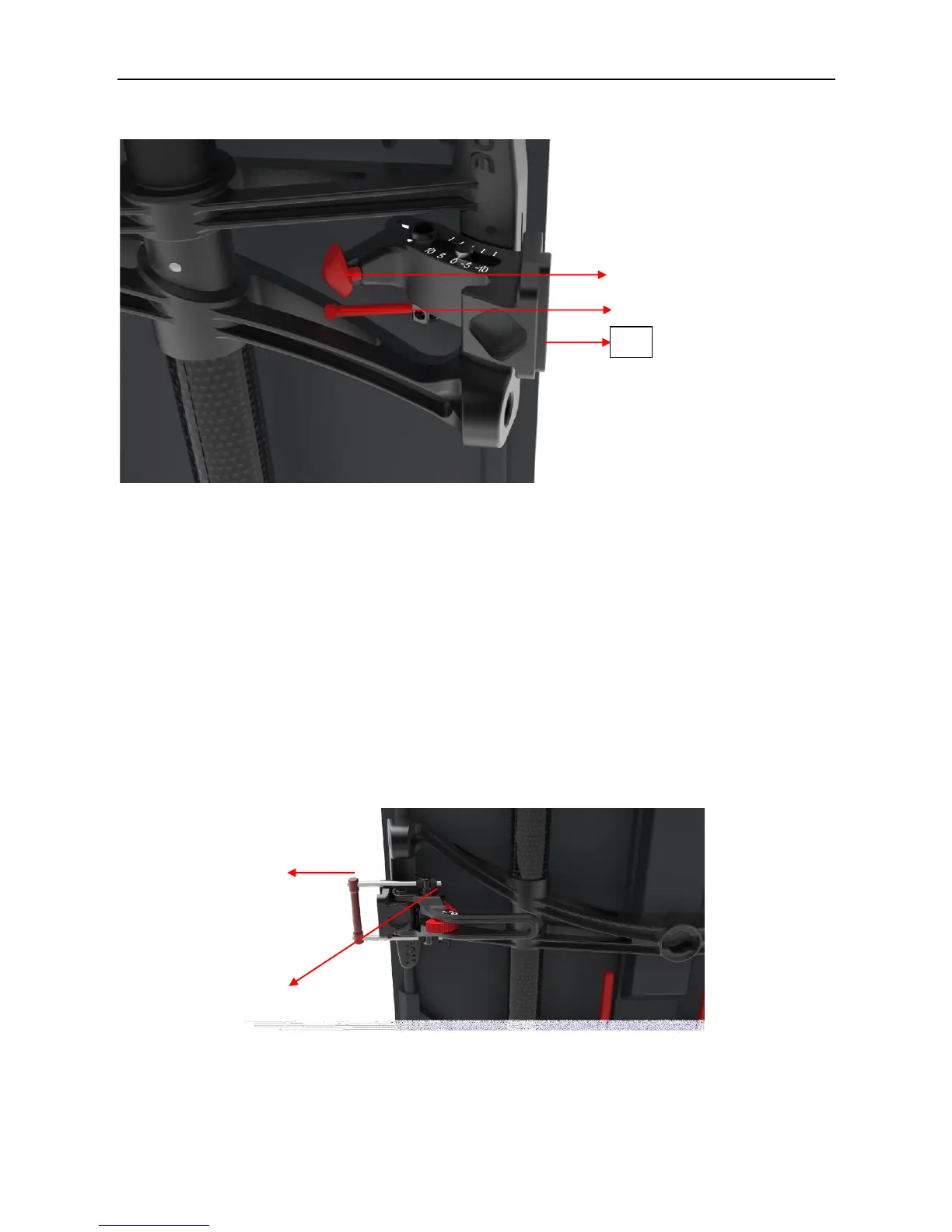

2.2 Side Lock
The frame can be put in a +10 / +5 / 0 / -5 / -10 degree position.
Also, any angle between +10 and -10 can be achieved by just tightening A to the correct position.
To achieve this, part A needs to be loosened by turning 90 degrees away from the tile.
Pull part B and position part C in the desired position. Retighten part A.
Push lever D to unlock.
Always put locking handle D and latch E in this position for transport, to prevent damage to the next tile in the
dolly.
