User Manual P11
Flat Installation
Just turn the Adjusting Screw, to make the Clamps close, the Hanging Bar will be xed on the
Truss safely.

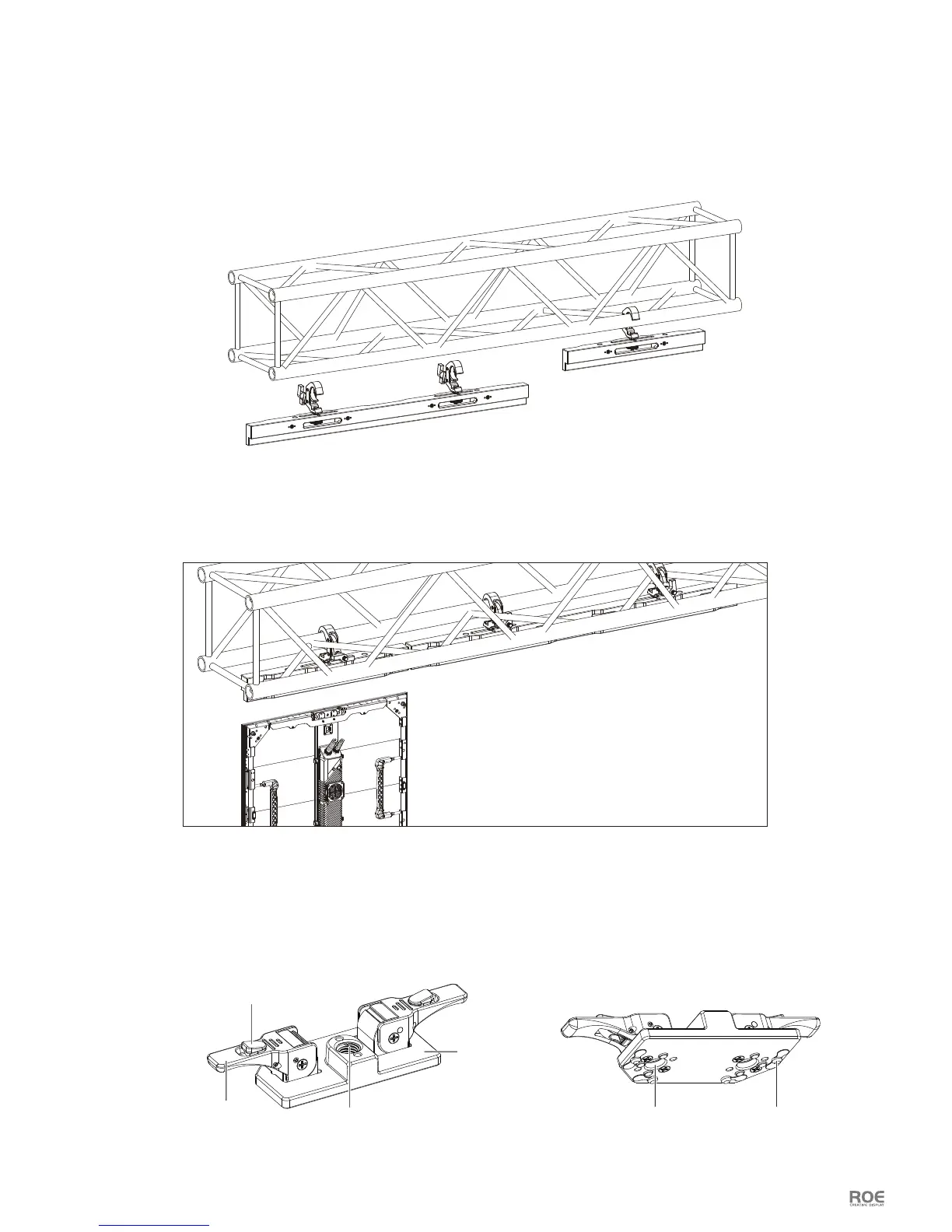

1. Fix the Hanging Bar on the Truss
Tiles will be attached to the Hanging Bar by Magnets automatically.
Notes: (For Safety) Please do this by two persons.
2. Connect Carbon tiles with the Hanging Bar
connection plate diagram:
Control Button
Handle
Connection Plate
Bolt Hole for celling
(
Round screw M10×10mm)
3. Fix Carbon tiles on Hanging Bar by Connection Plate
Locating Hole Position Pin
To Next Page
