ROE CB3 - Connection; Hanging System Setup; Power and Data Connections

03
Connection
User Manual P7
Processor
AC 220V
CAT-5
DVI
①
②
Carbon 5 Built in Power Supply
Input Voltage AC 220V

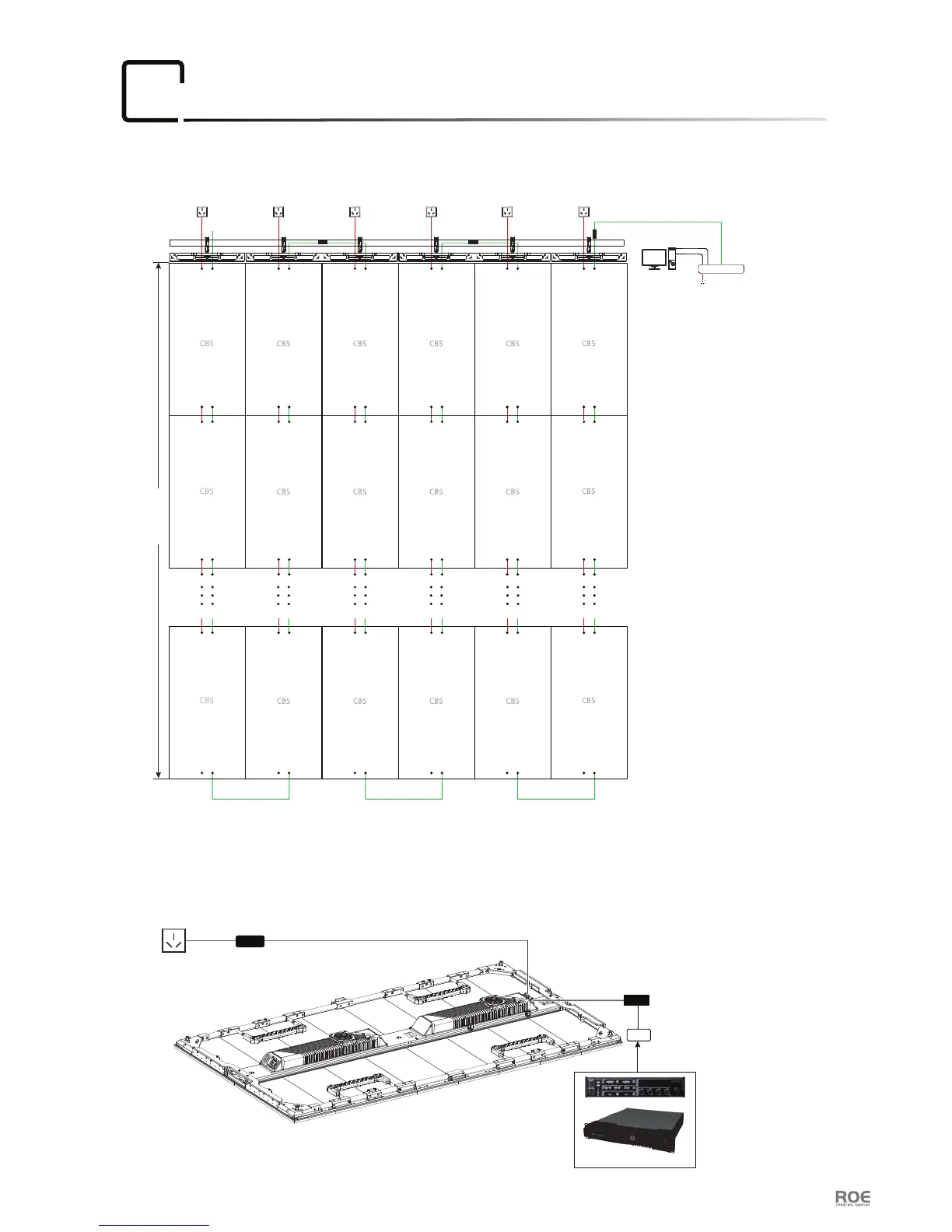

Hanging System
1. Neither Hanging Bar nor Vertical Connector can load more than 20 tiles of Carbon 5.
2. When the Input Voltage is 220V, one Power Cable can load 4 tiles of Carbon 5; and the Input Voltage is 110V,
one Power Cable can load 2 tiles of Carbon 5.
Notes:
AC 220V AC 220V AC 220V AC 220V AC 220V AC 220V
③
④
⑤ ⑤
⑤
⑥
4 tiles high
CB5
CB5
CB5
CB5
CB5
CB5
Power and Data connections of Carbon tiles
Data
WeiPu
Brompton
Power
Data Adaptpr
