User Manual P8

Processor

AC 220V

CAT-5

DVI

①

②

Carbon 8 Built in Power Supply

Input Voltage AC 220V

Hanging System

1. Neither Hanging Bar nor Vertical Connector can load more than 20 tiles of Carbon 8.

2. When the Input Voltage is 220V, one Power Cable can load 8 tiles of Carbon 8; and the Input Voltage is 110V,

one Power Cable can load 4 tiles of Carbon 8.

Notes:

AC 220V AC 220V AC 220V AC 220V AC 220V AC 220V

③

④

⑤ ⑤

⑤

⑥

8 tiles high

CB8

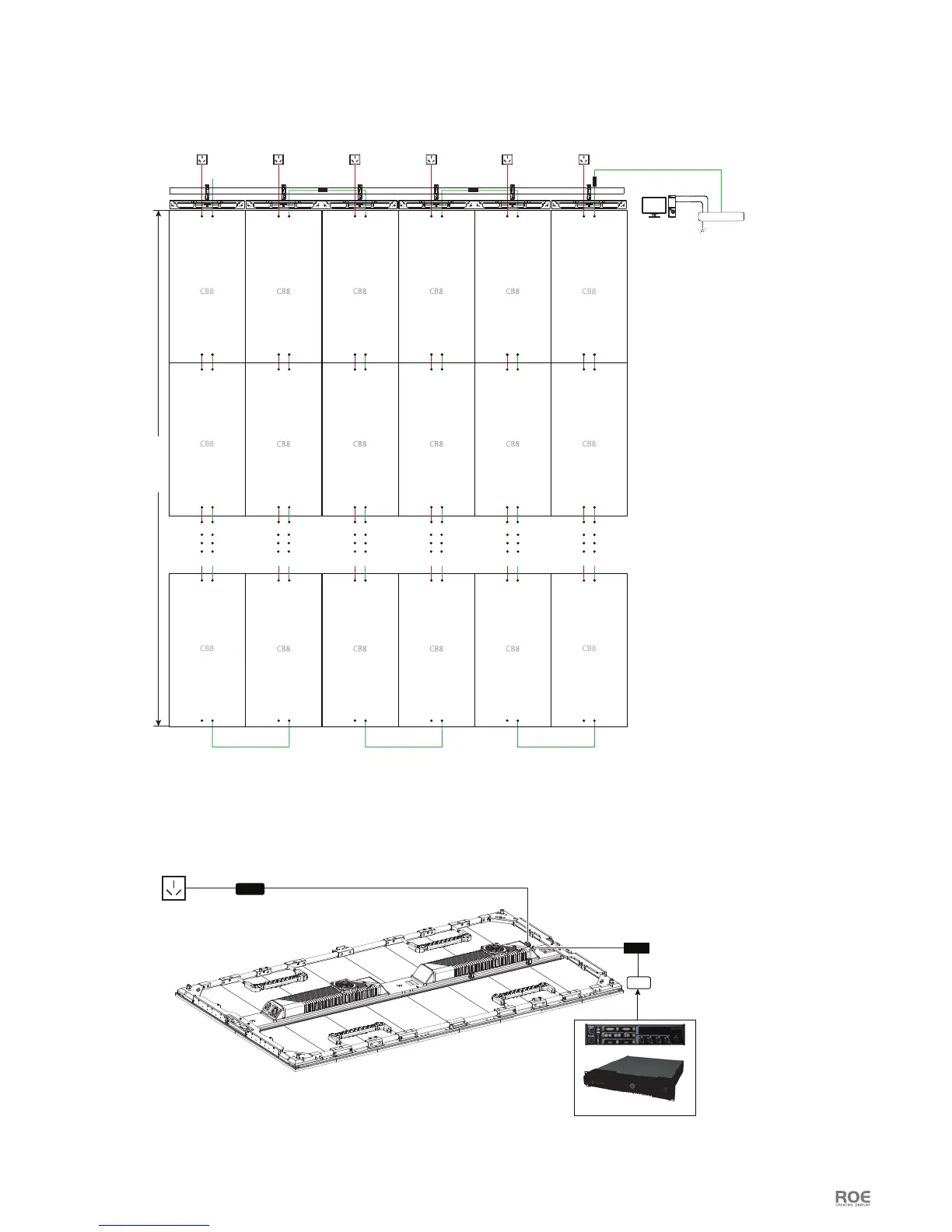

Power and Data connections of Carbon tiles

Data

WeiPu

Brompton

Power

Data Adaptpr
