ROE CB3 User Manual

Service and Maintenance:
08
User Manual P22
2. Notice the data cable and power cable connected to the HUB board in the spine when
replacing the spin. Don’t be forced to remove the spine in case of dragging out
the cables and broken the connectors.
Maintenance:

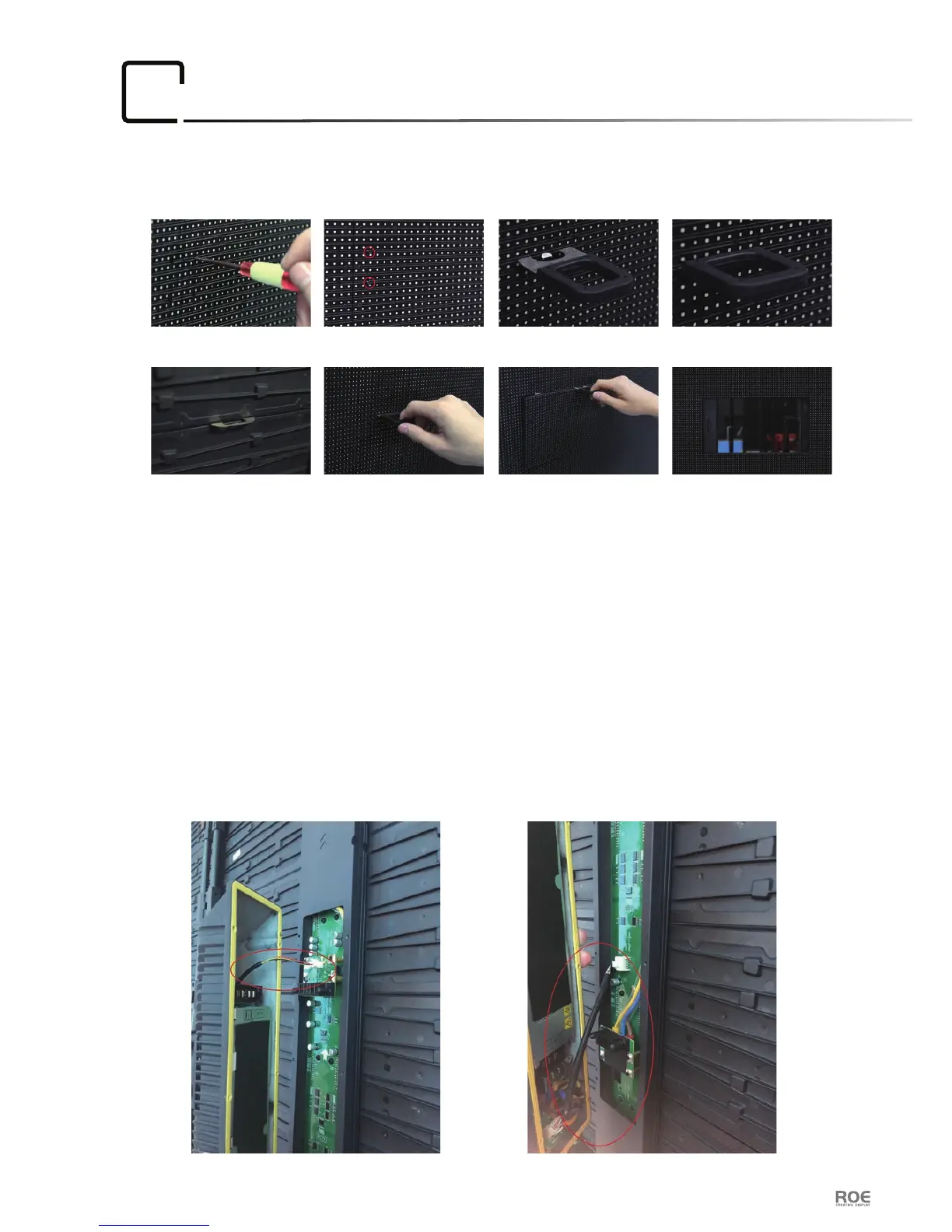

Picture 1 Picture 2 Picture 3 Picture 4
Picture 5 Picture 6 Picture 7 Picture 8
1. Loosen the screw(a total of six screws) on the front of the module.
2. The loosened screws can be remained on the tile.
3. Insert the tool into the gap on the top of the module that you want to take out.
4. Make sure that the iron piece at the front of the tool is fully inserted in the gap.
5. You can check it at the back.
6. Pull the handle.
7. The module comes out, be caution that the module falls o.
8. Take the module out from the tile.
1. Maintenance on overall installation, just replace the bad module.
(twist force: 1.8kg f-cm)
.
