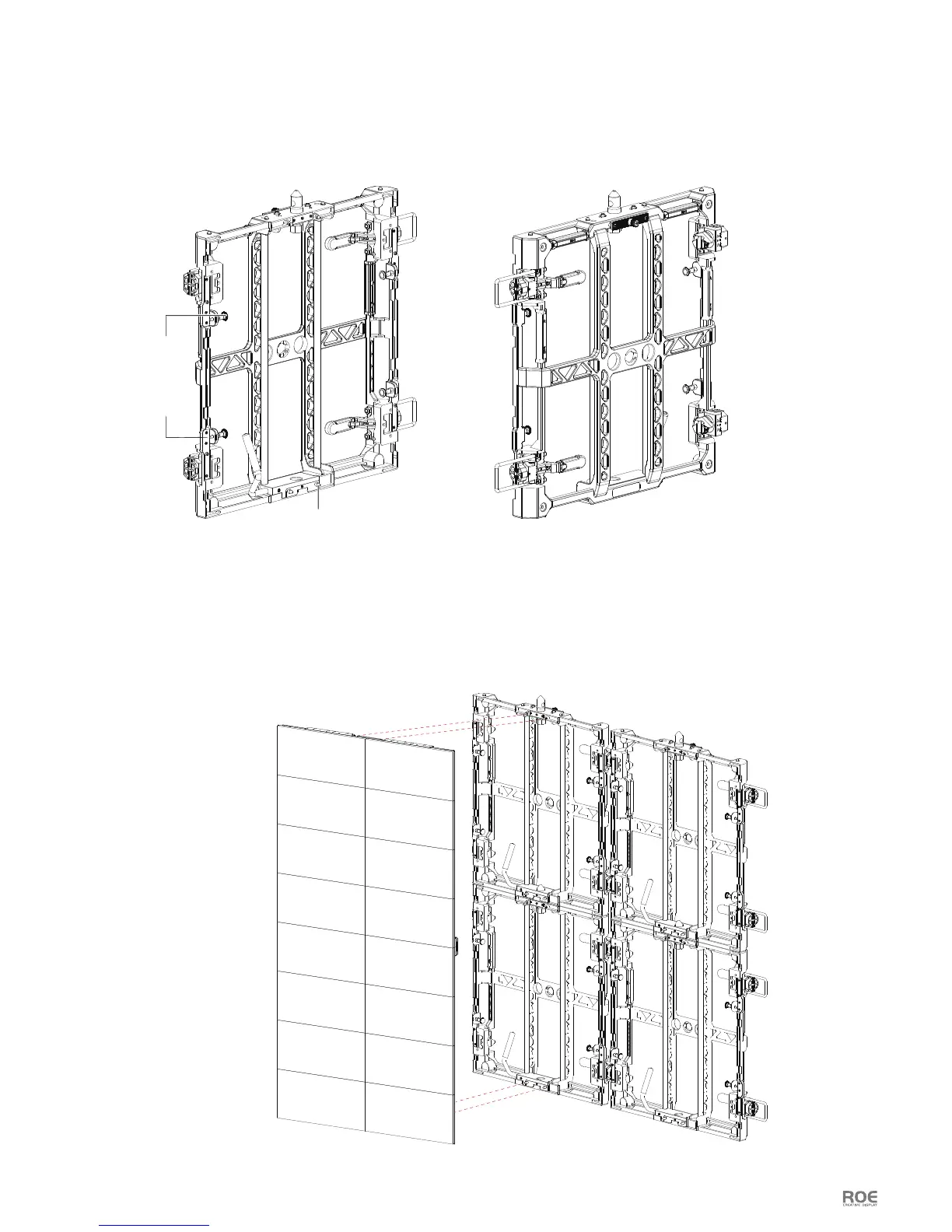

Diagram: Touring Frame - T2
Magnet
Position Pin
Connect CB tiles with T2 Touring Frame
Keep the lock pin of T2 Open.
Alignment the position pin of T2 and locating hole of CB, it will be attached to T2 by Magnets automatically.
Then loosen the lock pin for locking.
②
①
③
Lock Pin
