ROE MC-7H - Base Bar Assembly

- 9 -

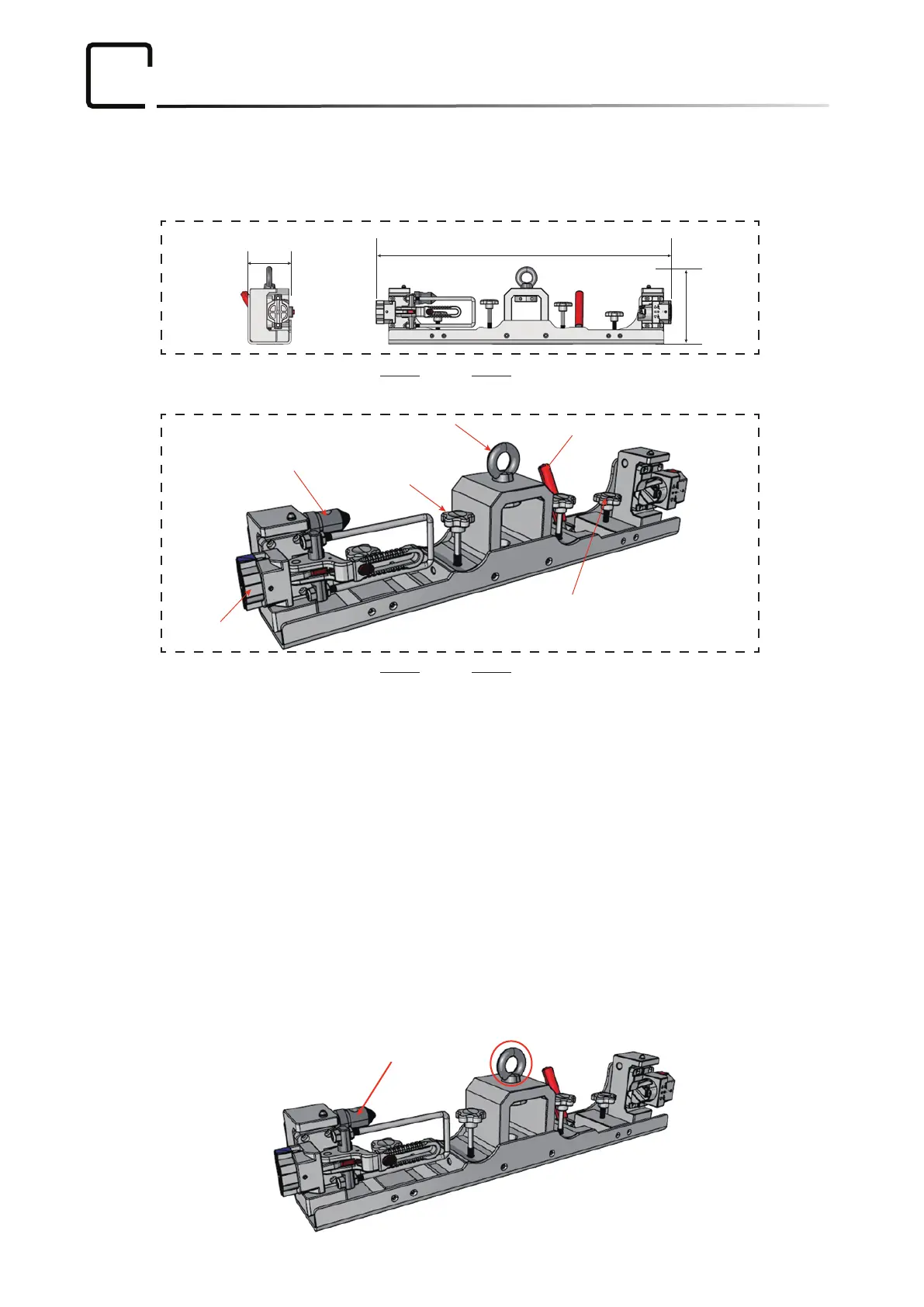

Base Bar Assembly:
05
A
B
D
E
F
C
Hanging System
89mm
605mm
175mm
Base Bar
Hanging Installation
Figure 1
Figure 2
A: Horizontal connector
E: Lock of base truss
F: Ring(For hanging installaon)
B: Level adjusng screw
C: Locaon Pin(For stacking installaon)
D: Vercal connecon lock
Note:
Ring and Locaon pin can be removed and exchange with each other.
Before hanging installaon, please make sure the ring is on the top of the bar.
Adjust the level adjustment and make sure the boom of the base bar is flat.
Open the vercal connecon lock.
