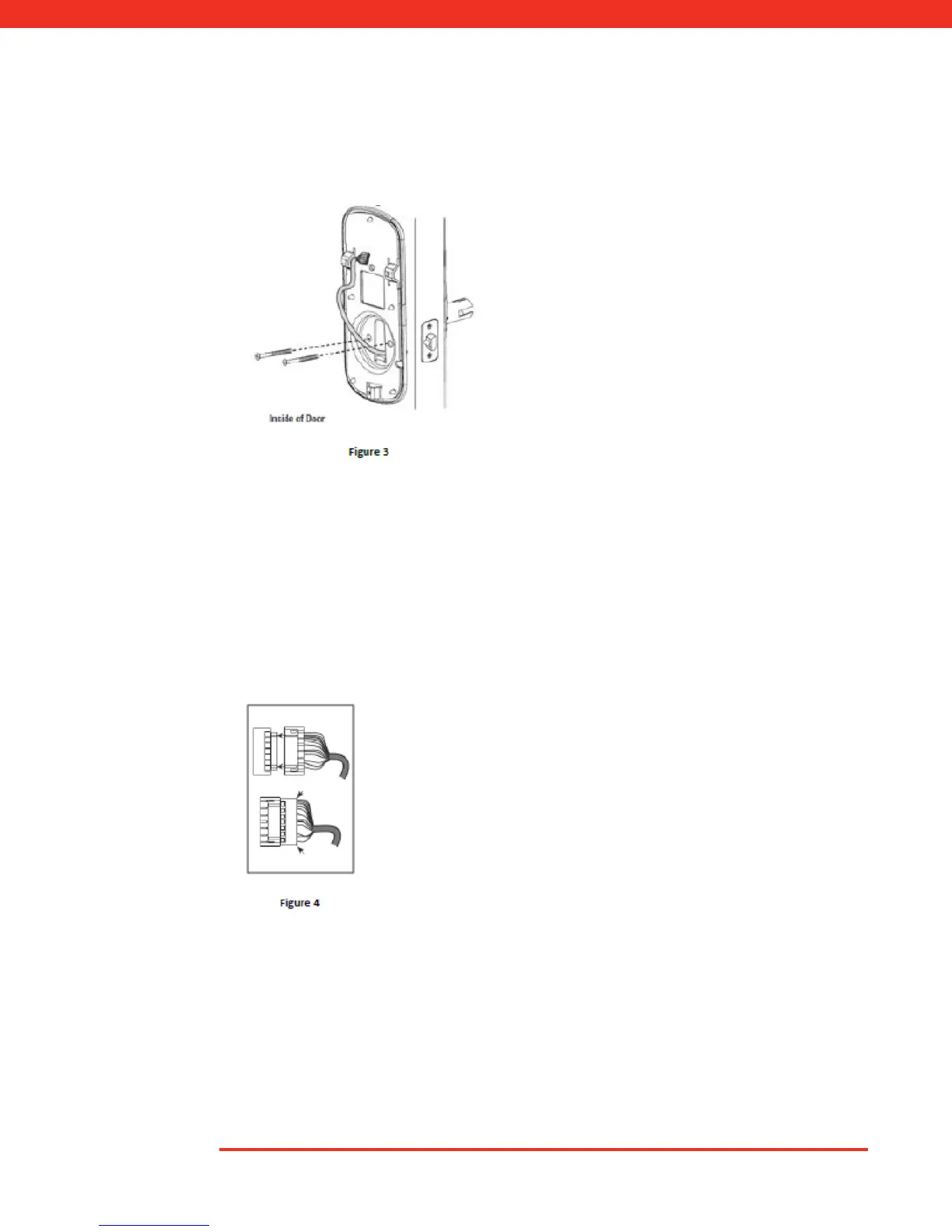

3. Secure both assemblies using (2) M6 x 59.5mm pan head machine screws (Fig. 3),
making sure that outside of the lock is vertically aligned. Do not over tighten.
4. Attach cable assembly connector to the inside part of the lock PC board by lining up
notches on top of cable connector to slots on PCB connector (Fig. 4).
Connector should be pressed in firmly until completely seated.
