5. Using care position and bend cable to ensure that the cable lies against the back
recessed area of the latch side of the lock.

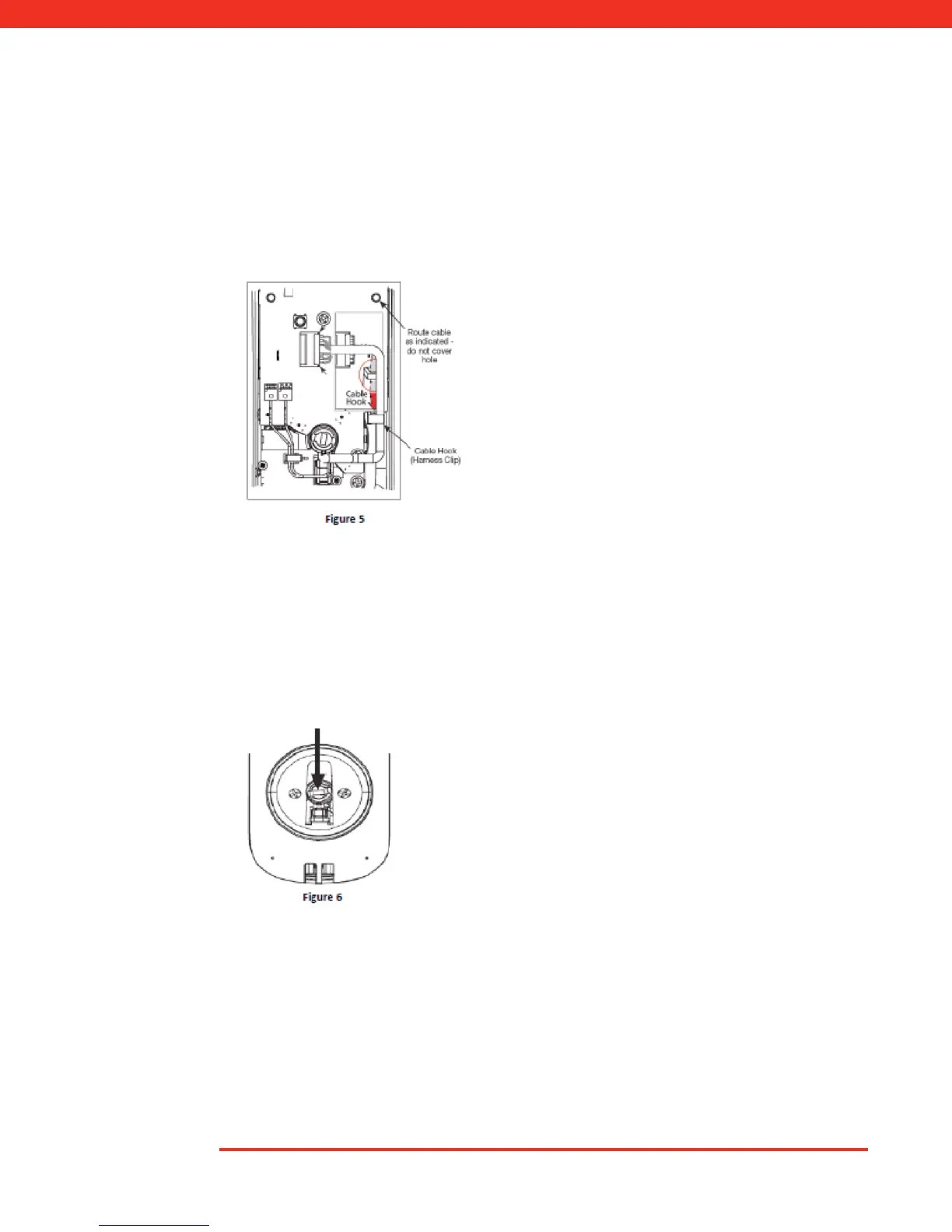

Hook the cable under the cable hook (Note: label on circuit board) to prevent binding
when installing the latch side of the lock over the mounting plate (Fig. 5).
6. Install the Inside Latch side of the lock on the inside mounting plate. Note: the
horizontal orientation of the tailpiece as you insert the latch side; the latch should
be vertical (Fig. 6).
