Plain View
fig.heimen.eps

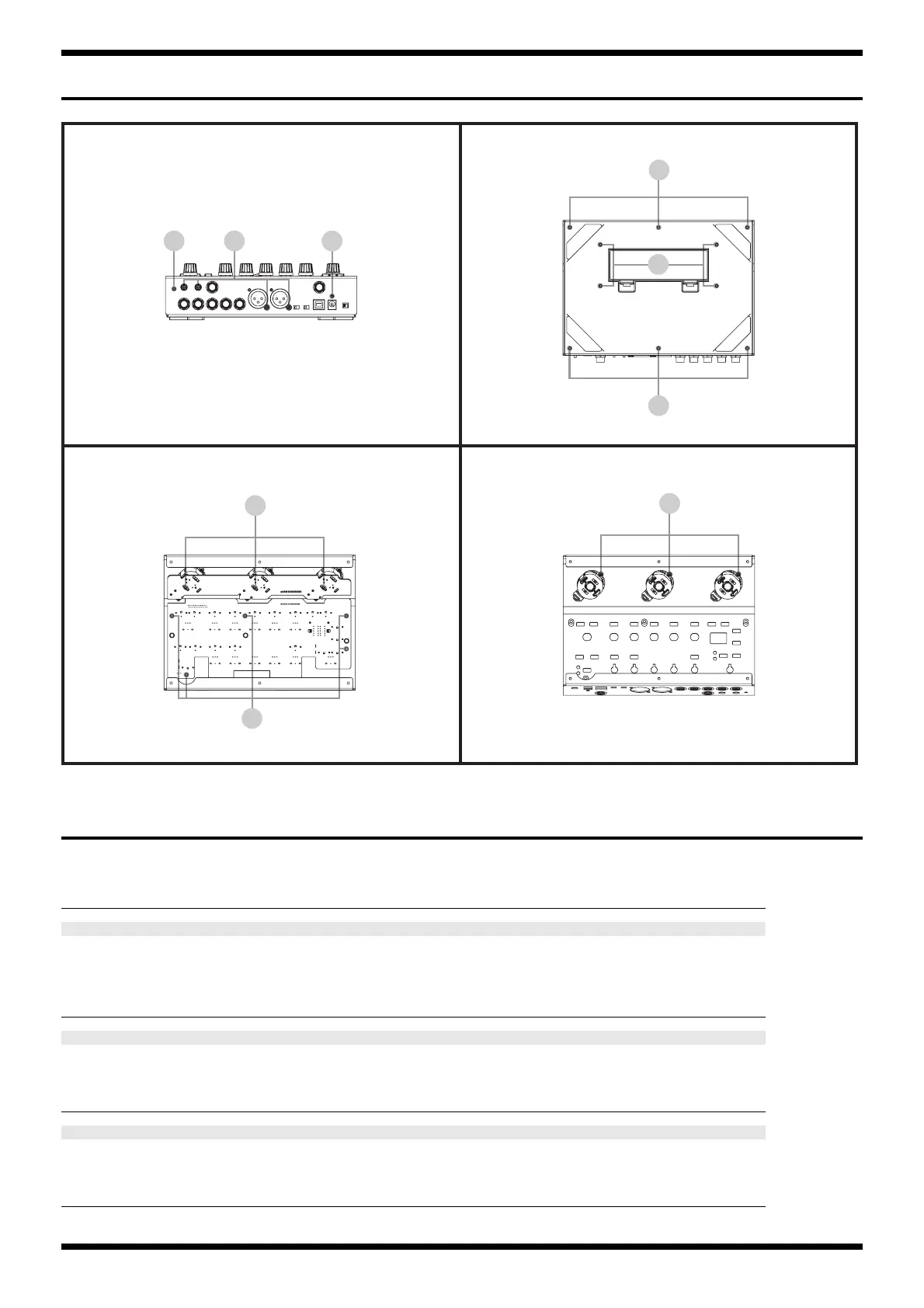

Plain View Parts List
View 1
View 2
View 3
View 4
a
d
a
e
ac
b
g
e
View 1 View 2
View 3 View 4
No. Part Code Part Name Description Q’ty
a 40012534 SCREW 3X6 BINDING TAPTITE S FE BZC 1
b 5100036736 SCREW 2.9X9 BINDING TAPTITE B SERRATE BZC 4
c 40342712 SCREW M3X6 PAN MACHINE W/SW+SMALL PW BZC 1
No. Part Code Part Name Description Q’ty
a 40012534 SCREW 3X6 BINDING TAPTITE S FE BZC 6
e 40011301 SCREW 3X6 BINDING TAPTITE P FE BZC 4
No. Part Code Part Name Description Q’ty
d 40017934 SCREW M3X6 PAN MACHINE W/SW+PW(L) FE ZC 5
e 40011301 SCREW 3X6 BINDING TAPTITE P FE BZC 3
No. Part Code Part Name Description Q’ty
g 5100008243 SCREW 2.6X5 (H5019430R0) BINDING TAPTITE P FEZC 3
