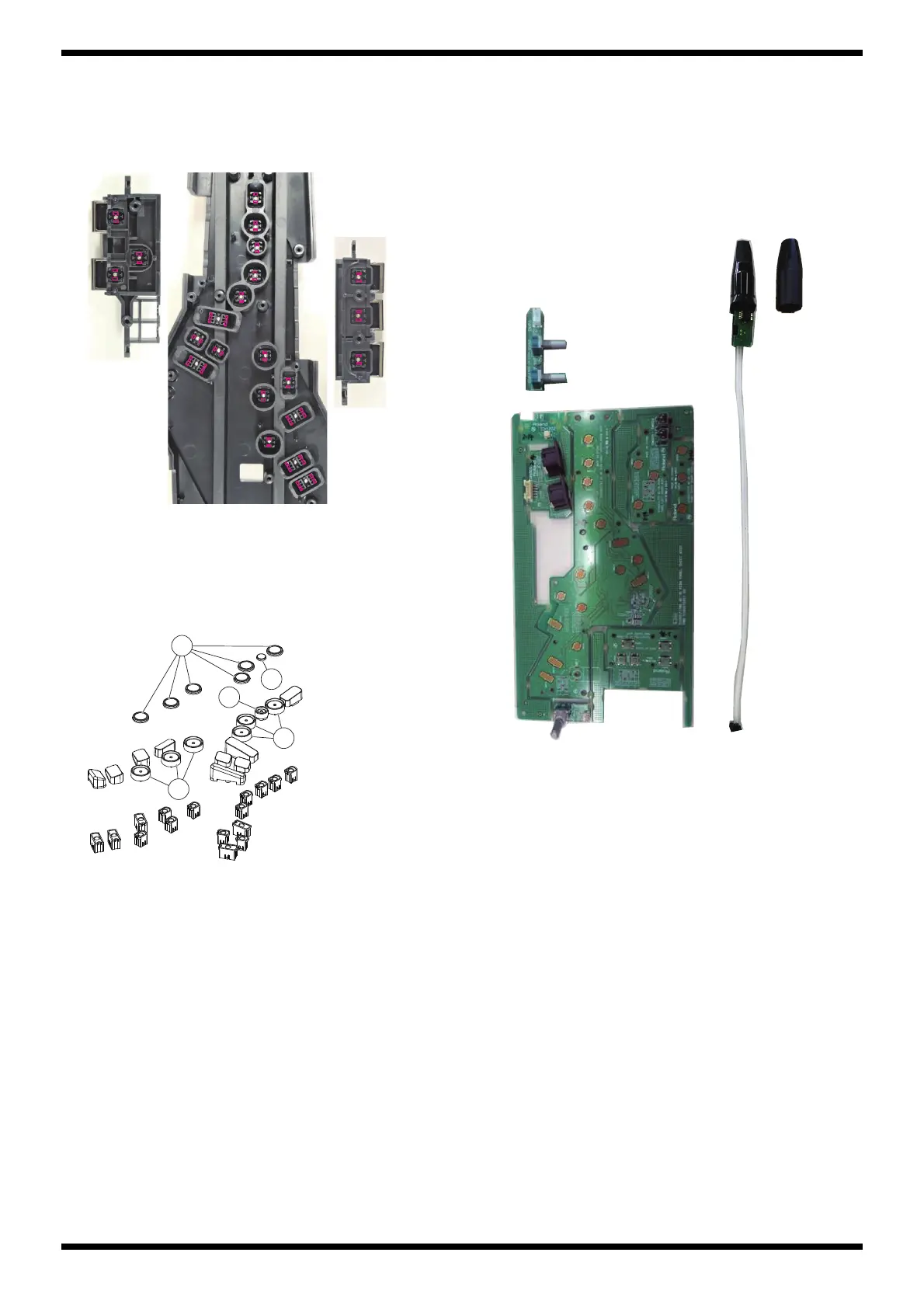

About Application of Grease
When replacing the key or the key base, apply a small amount of grease
(#5100032252) to the locations shown in the figure below using a brush.
Be sure to verify the operation of the key after applying grease.
Also, when applying it too much, wipe it with a soft cloth.
fig.kumitate-key.eps
About Key and Key Base
The Key and the Key Base are secured with the screws g.
(Plain View (Fig. A), View A3, A4 and A5)
Also, all of No.1 Key Cap A are fixed to No.2 R-Key A, and No.3 Key Cap
B is fixed to No.4 R-Key B with adhesive (#40122445).
fig.kumitate-button.eps
About Peripheral Sheet Assy
(#5100073057)
Peripheral Sheet Assy (#5100073057) consists of a Panel-Center, Pedal-
Left, Pedal-Right, MIDI, Pressure, Bender, Menu, Volume Board and
Mouthpiece Assy.
Also, Mouthpiece Assy includes a Sensor Board, Tube, Tube Escutcheon,
Mp Cover, Mouth Piece, Reed, OP-AE05MPH and others. The sensor
board can not be detached because it is adhered to the MP Holder with
adhesive.
fig.Peripheral-St.eps
