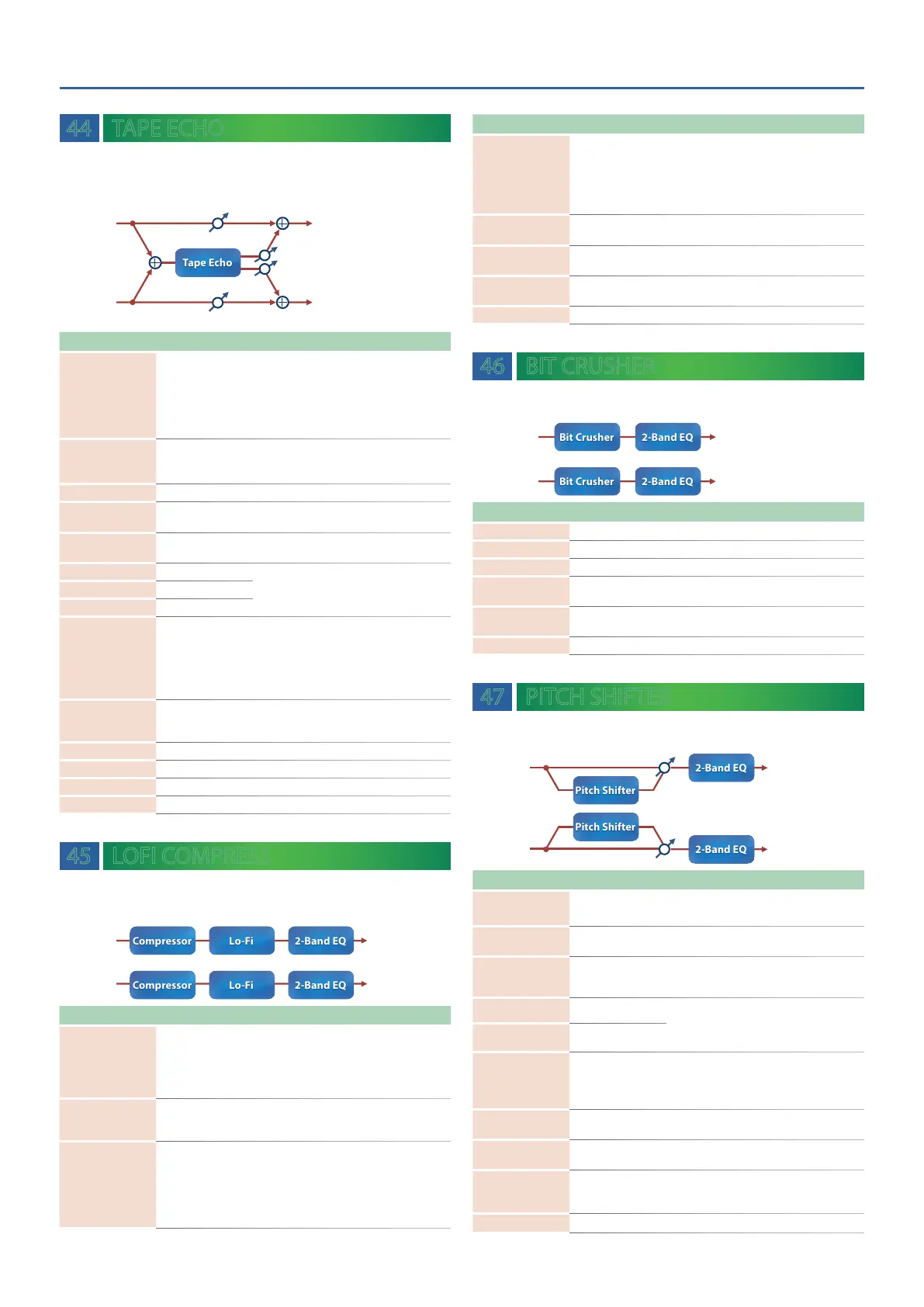

MFX/IFX Parameters
57
44 TAPE ECHO
A virtual tape echo that produces a realistic tape delay sound. This
simulates the tape echo section of a Roland RE-201 Space Echo.
R out
L out
Echo Level
Echo Level
Direct Level
Direct Level
L in
Tape EchoTape Echo
R in
Parameter Value Explanation
Mode
S, M, L, S+M, S+L,
M+L, S+M+L
Combination of playback heads to use
Select from three different heads with
different delay times.
S: short
M: middle
L: long
Repeat Rate 0–127
Tape speed
Increasing this value will shorten the
spacing of the delayed sounds.
Intensity 0–127 Amount of delay repeats
Bass -15–+15 [dB]
Boost/cut for the lower range of the echo
sound
Treble -15–+15 [dB]
Boost/cut for the upper range of the echo
sound
Head S Pan L64–63R
Independent panning for the short,
middle, and long playback heads
Head M Pan L64–63R
Head L Pan L64–63R
Distortion
(Tape Distortion)
0–5
Amount of tape-dependent distortion to
be added
This simulates the slight tonal changes
that can be detected by signal-analysis
equipment. Increasing this value will
increase the distortion.
Wf Rate
(W/F Rate) 0–127
Speed of wow/flutter (complex variation
in pitch caused by tape wear and
rotational irregularity)
Wf Depth
(W/F Depth) 0–127 Depth of wow/flutter
Echo Level 0–127 Volume of the echo sound
Direct Level 0–127 Volume of the original sound
Level 0–127 Output Level
45 LOFI COMPRESS
This is an effect that intentionally degrades the sound quality for
creative purposes.
CompressorCompressor
Lo-FiLo-Fi
2-Band EQ2-Band EQ
CompressorCompressor
Lo-FiLo-Fi
2-Band EQ2-Band EQ
L in L out
R outR in
Parameter Value Explanation
Pre Filter
(Pre Filter Type)
1, 2, 3, 4, 5, 6
Selects the type of filter applied to the
sound before it passes through the Lo-Fi
effect.
1: Compressor off
2–6: Compressor on
LoFi Type 1, 2, 3, 4, 5, 6, 7, 8, 9
Degrades the sound quality. The sound
quality grows poorer as this value is
increased.
Post Filter
(Post Filter Type)
OFF, LPF, HPF
Type of filter
OFF: No filter is used
LPF: Cuts the frequency range above the
Cutoff Freq
HPF: Cuts the frequency range below the
Cutoff Freq
Parameter Value Explanation
Cutoff
(Post Filter Cutoff)
200, 250, 315, 400,
500, 630, 800,
1000, 1250, 1600,
2000, 2500, 3150,
4000, 5000, 6300,
8000 [Hz]
Basic frequency of the Post Filter
Low Gain -15–+15 [dB]
Amount of boost/cut for the low-
frequency range
High Gain -15–+15 [dB]
Amount of boost/cut for the high-
frequency range
Balance
D100: 0W–D0:
100W
Volume balance between the direct
sound (D) and the effect sound (W)
Level 0–127 Output Level
46 BIT CRUSHER
Produces an extreme lo-fi effect.
L in L out
R outR in
Bit CrusherBit Crusher
2-Band EQ2-Band EQ
Bit CrusherBit Crusher
2-Band EQ2-Band EQ
Parameter Value Explanation
Sample Rate 0–127 Adjusts the sample rate.
Bit Down 0–20 Adjusts the bit depth.
Filter 0–127 Adjusts the filter depth.
Low Gain -15–+15 [dB]
Amount of boost/cut for the low-
frequency range
High Gain -15–+15 [dB]
Amount of boost/cut for the high-
frequency range
Level 0–127 Output Level
47 PITCH SHIFTER
A stereo pitch shifter.
R out
L out
2-Band EQ2-Band EQ
2-Band EQ2-Band EQ
L in
Pitch ShifterPitch Shifter
Pitch ShifterPitch Shifter
R in
Parameter Value Explanation
Coarse -24–+12 [semi]
Adjusts the pitch of the pitch shifted
sound in semitone steps.
Fine -100–+100 [cent]
Adjusts the pitch of the pitch shifted
sound in 2-cent steps.
Dly Sync
(Delay Time
(sync switch))
OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Tempo” (p. 8)
Dly Msec
(Delay Time (msec))
1–1300 [msec]
Adjusts the delay time from the direct
sound until the pitch shifted sound is
heard.
Dly Note
(Delay Time (note))
Note
& “Note” (p. 72)
Feedback -98–+98 [%]
Adjusts the proportion of the pitch
shifted sound that is fed back into the
effect.
Negative (-) settings will invert the phase.
Low Gain -15–+15 [dB]
Amount of boost/cut for the low-
frequency range
High Gain -15–+15 [dB]
Amount of boost/cut for the high-
frequency range
Balance
D100: 0W–D0:
100W
Volume balance between the direct
sound (D) and the pitch shifted sound
(W)
Level 0–127 Output Level
