Roland CPM-300 Service Notes

2
Apr,1999CPM-300

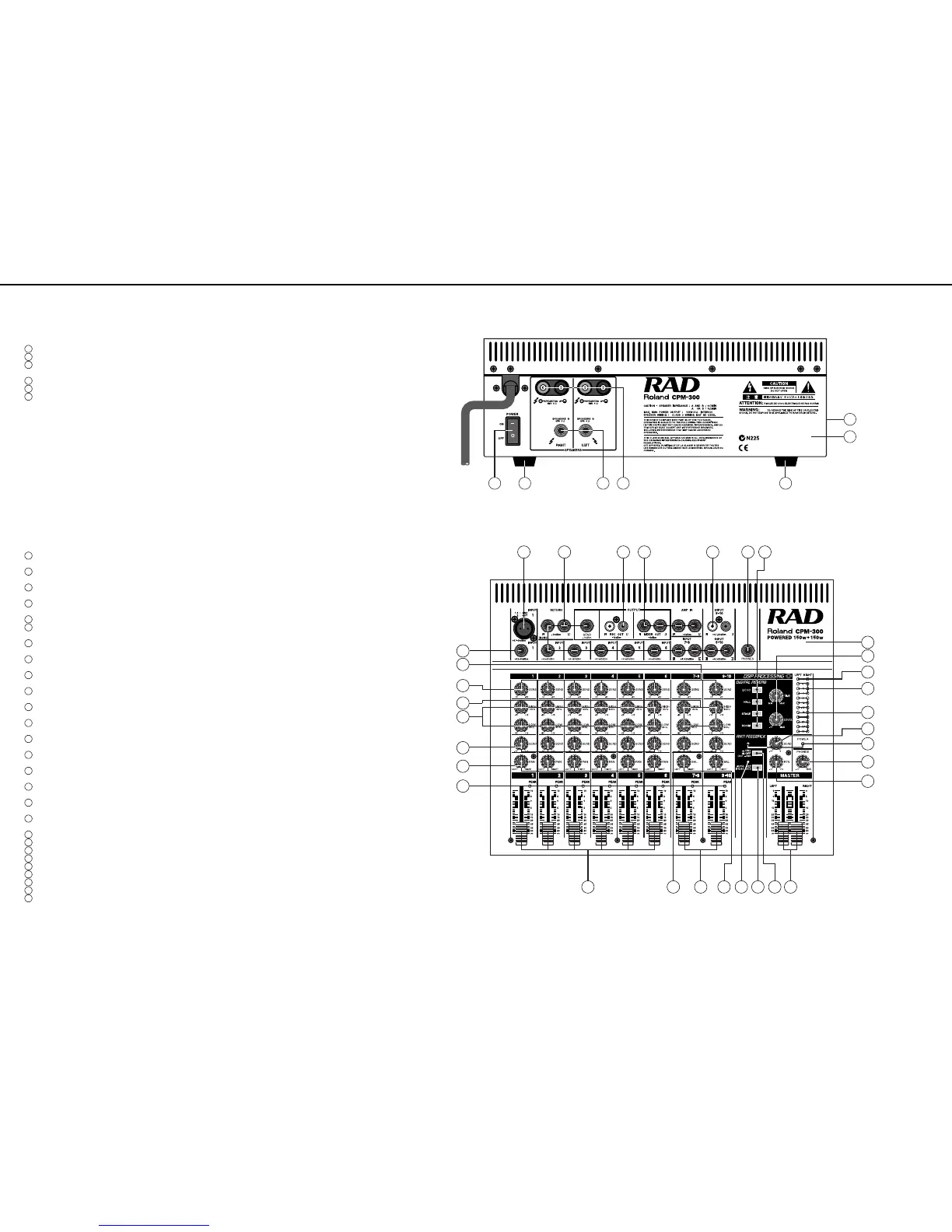

LOCATION OF CONTROLS
23 12
27
13
2524252621
22
7
5
20
19
5
16
18
17
6141196
5
4
151910
3
2
8
1
6
5
44 21 3
No. PART CODE PART NAME DESCRIPTION
01457190 SEESAW SWITCH SDDJF1003A
01673712 JACK JY-6353-01-130
F3459107 SPEAKER TERMINAL A215C
F2369808 COVER SR-4 230V 240V only
22355334 BASE (FOOT BASE) 235-334
G2817128 BOTTOM CHASSIS
12319402 HANDLE 231-402(H20)
1
2
3
4
5
6
No. PART CODE PART NAME DESCRIPTION
01451789 ROTARY POTENTIOMETER 12M/M EVJ YK5 F03 622
01452467 U R-KNOB M1 LCG BLK
01451801 ROTARY POTENTIOMETER 9M/M EVU F1L FL3 B24
01452489 U R-KNOB M1 LCG GRN
01451812 ROTARY POTENTIOMETER 9M/M EVU F0L FL3 B54
01452478 U R-KNOB M1 LCG RED
01451801 ROTARY POTENTIOMETER 9M/M EVU F1L FL3 B24
01452445 U R-KNOB M1 LCG BLU
01453012 LED LN88RPX
01349423 KNOB U S-KNOB M1 LCG DCG
01563356 SLIDE POTENTIOMETER 45M/M RS45111A6
01451778 ROTARY POTENTIOMETER 12M/M EVJ Y15 F03 B54
01452467 U R-KNOB M1 LCG BLK
01451767 ROTARY POTENTIOMETER 12M/M EVJ Y96 F03 B24
01452489 U R-KNOB M1 LCG GRN
01451778 ROTARY POTENTIOMETER 12M/M EVJ Y15 F03 B54
01452478 U R-KNOB M1 LCG RED
01451734 ROTARY POTENTIOMETER 12M/M EVJ YK6 F03 403
01452445 U R-KNOB M1 LCG BLU
01563367 SLIDE POTENTIOMETER 45M/M RS45112A6
01349423 KNOB U S-KNOB M1 LCG DCG
13129376 SWITCH (PUSH) SPEA12 4POLES
01671723 BUTTON MCG
01451790 ROTARY POTENTIOMETER 12M/M EVU F2L FL3 B24
01452489 U R-KNOB M1 LCG GRN
13129376 SWITCH (PUSH) SPEA12 4POLES
2247064700 BUTTON
13129380 SWITCH SPEA12 NONLOCK
2247064700 BUTTON
01451790 ROTARY POTENTIOMETER 12M/M EVU F2L FL3 B24
01452478 U R-KNOB M1 LCG RED
01451756 ROTARY POTENTIOMETER 12M/M EVJ Y15 F03 B24
01452478 U R-KNOB M1 LCG RED
01451745 ROTARY POTENTIOMETER 12M/M EVJ YL5 F03 A24
01452467 U R-KNOB M1 LCG BLK
01453034 LED LN38GPX
01453023 LED LN48YPX
01453123 CANNON JACK NC3FAV2-0
01349045 JACK JY-6353A-02-250 (remove int tooth washer)
01349045 JACK JY-6353A-02-250
F3449114 JACK JY-6353A-02-130
F3429104 JACK RCA(PIN) JK0200560N
01673712 JACK JY-6353-01-130
G2817129 FRONT PANEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
