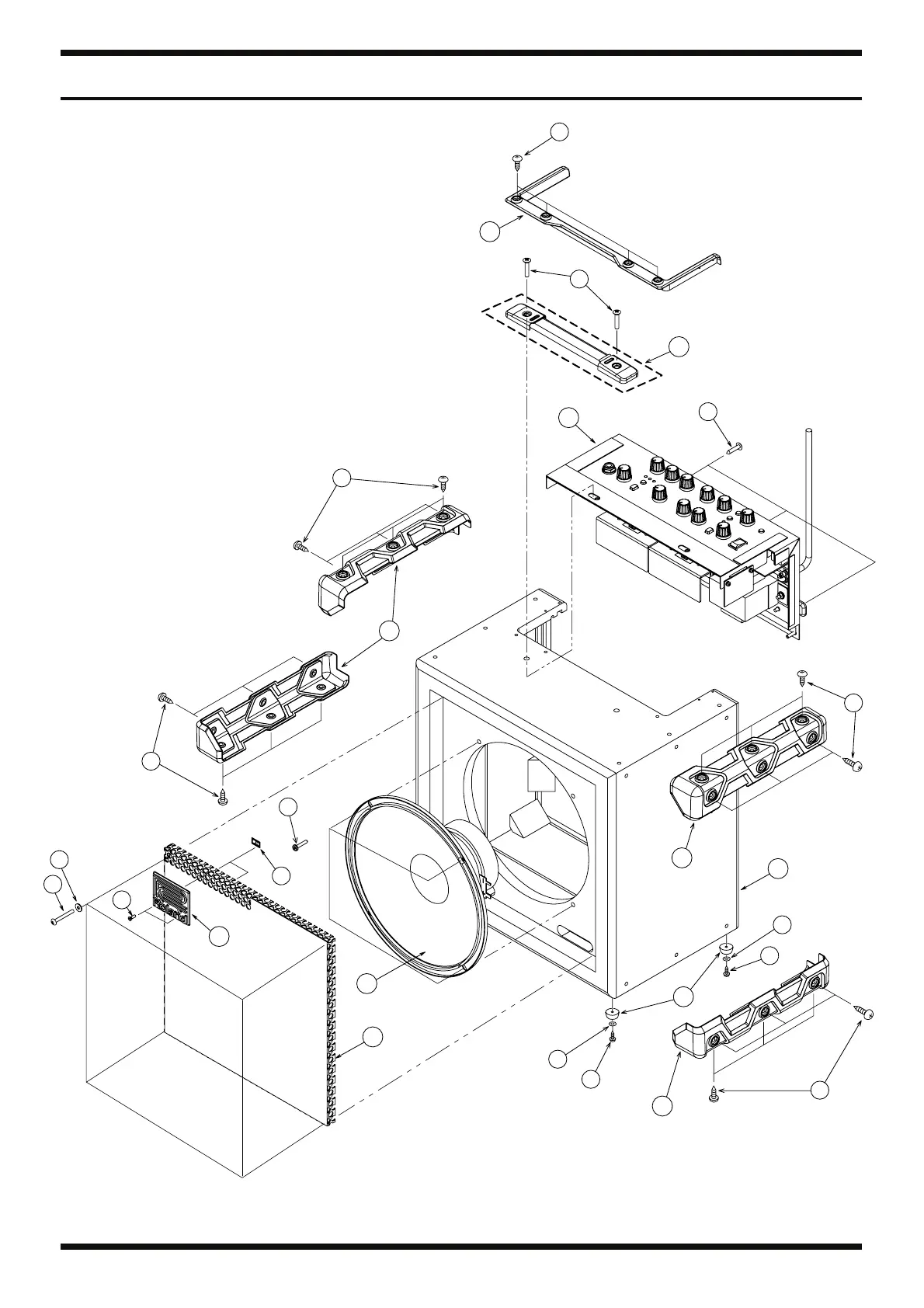

Exploded View (Cabinet)
fig.bunkaizu.eps
* Remove screws h and j first, then Chassis Assy can be removed.
1
8
7
2
9
4
4
6
4
5
a
c
e
d
b
f
e
e
e
g
g
j
j
j
i
h
3
