Roland CUBE 40XL Service Notes

8
Oct. 2010 CUBE-40XL

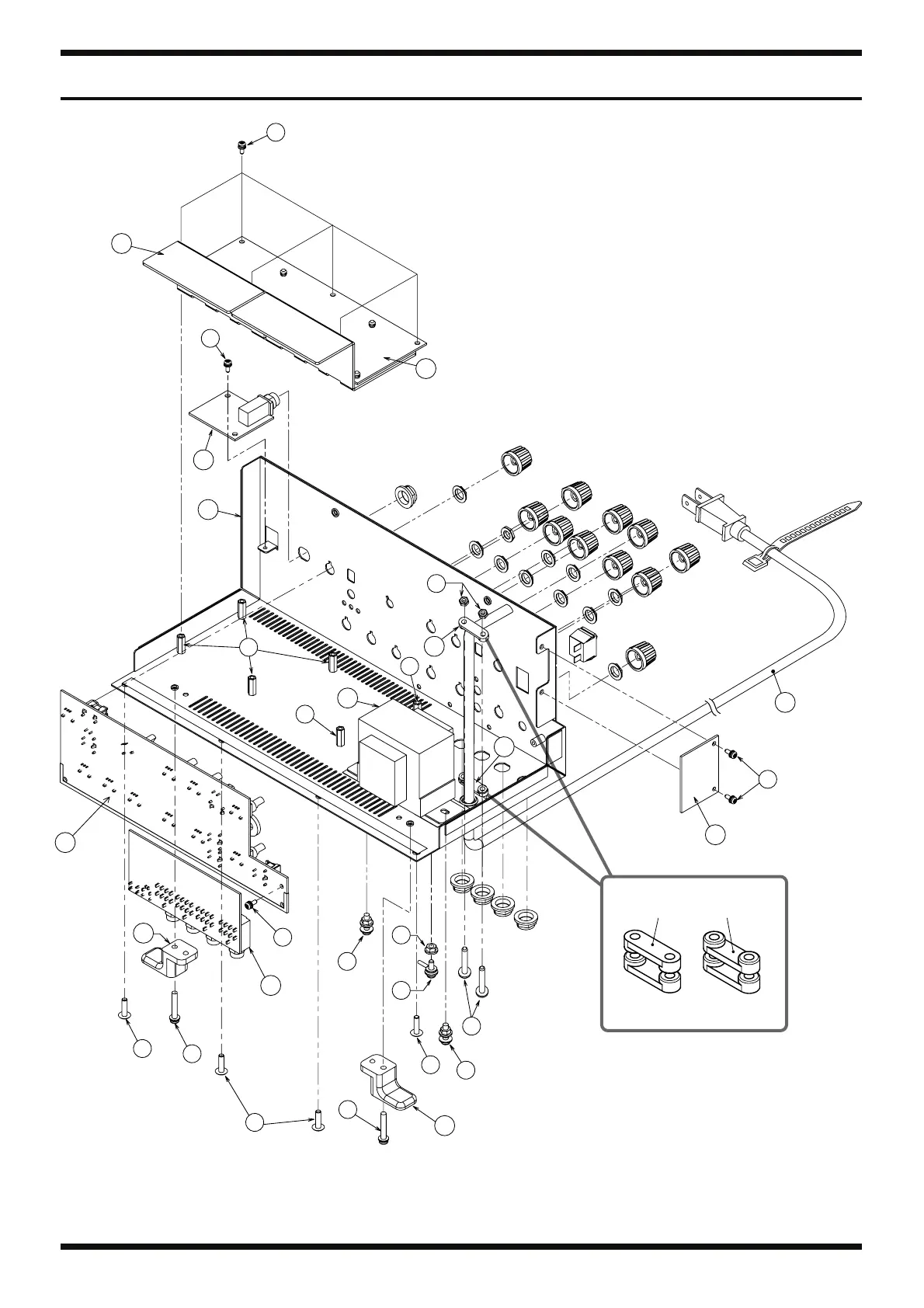

Exploded View (Chassis)
fig.chassis-e.eps
100V, 117VU,
117VU/CS
This part faces different side
according to the voltage.
others
1
3
8
5
6
10
11
7
7
2
a
a
4
9
9
b
d
c
b
e
f
h
f
g
a
a
i
i
i
c
c

Roland CUBE 40XL Specifications

General

Power Output	40W
Speaker	10 inch
Amp Models	8
Effects	Chorus, Flanger, Phaser, Tremolo
Looper	80 seconds
Inputs	Guitar Input, Aux In
Outputs	Recording Out/Phones
Channels	2 (Clean, Lead)
Footswitch	Optional (BOSS FS-5U, FS-6)
COSM Amp Models	Acoustic, JC Clean, Black Panel, Brit Combo, Classic Stack, Metal Stack, Extreme
