Panel Descriptions

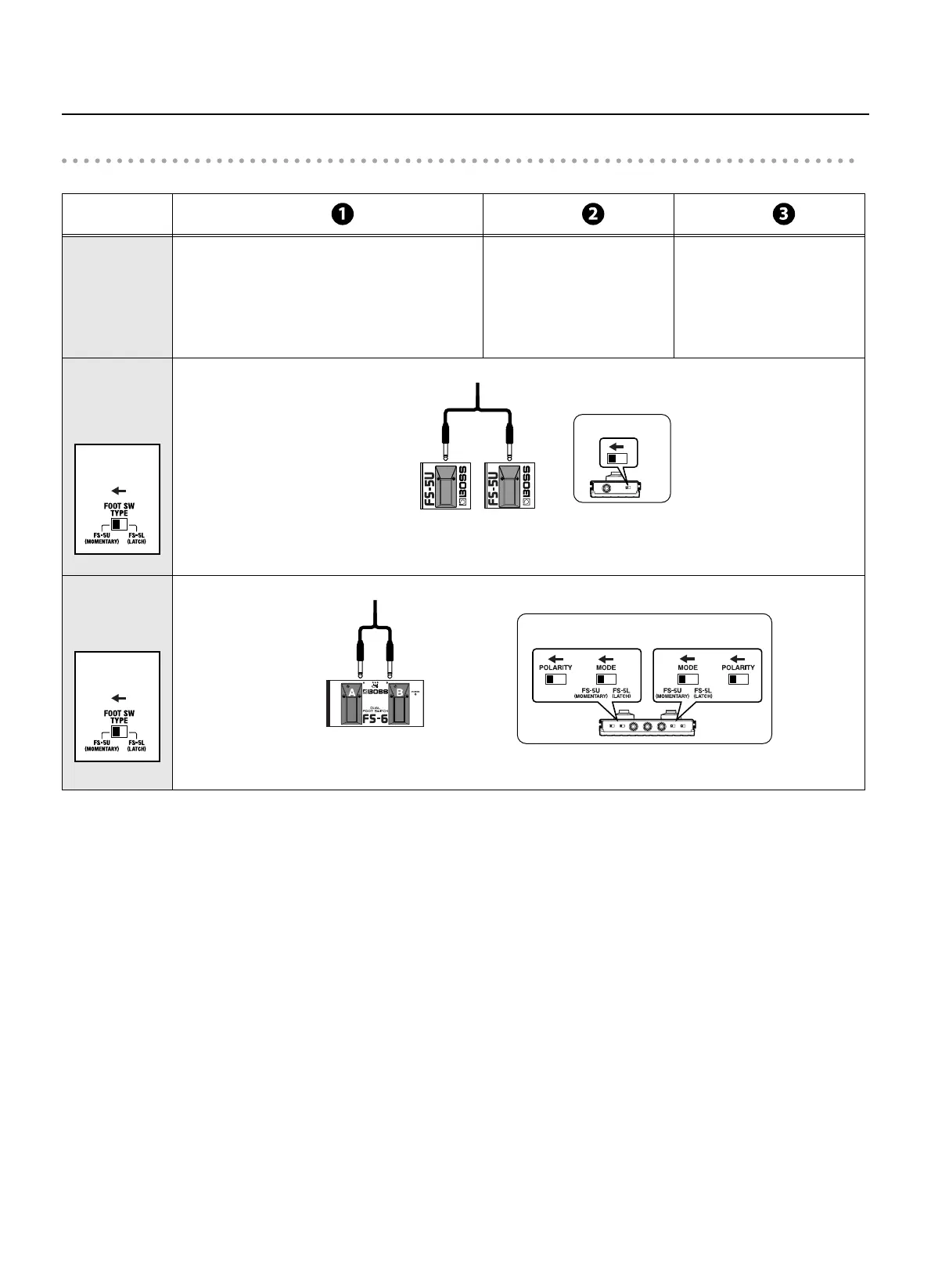

Connection and Settings When Using an FS-5U or Momentary-type Footswitch Pedal
Jack Jack Jack
Function
TIP: TAP/REC/PLAY/DUB
For DELAY: Adjusts the delay time
For LOOPER: LOOPER operation (p. 17)
TIP: EFX
Switches EFX on and off
TIP: SELECT
Switches between the JC
CLEAN and LEAD channels
RING: DELAY/LOOPER MUTE
For DELAY: Switches DELAY on and off
For LOOPER: Mutes LOOPER
RING: REVERB
Switches REVERB on and off
RING: SOLO
Calls up the SOLO function
When
connecting
the FS-5U
When
connecting
the FS-6
CUBE-80X
Rear Panel
DELAY/LOOPER MUTE
REVERB
SOLO
TAP/REC/PLAY/DUB
EFX
SELECT
Polarity switch
PCS-31
Red
(RING)
White
(TIP)
CUBE-80X
Rear Panel
BA
DELAY/LOOPER MUTE
REVERB
SOLO
TAP/REC/PLAY/DUB
EFX
SELECT
PCS-31
Red
(RING)
White
(TIP)
Set the switches as shown bellow.
