Appendices
CUBE-80X: Guitar Amplifier
● Rated Power Output
80 W
● Nominal Input Level (@ 1 kHz)
INPUT (JC CLEAN channel): -10 dBu/1 M ohms
AUX IN: -10 dBu
● Speaker
30 cm (12 inches)
● Controls
POWER Switch, SELECT Switch, TUNER Switch
<JC CLEAN CH>
BRIGHT Switch, VOLUME Knob
<LEAD CH>
TYPE Switch (ACOUSTIC SIM, BLACK PANEL, DLX COMBO,
BRIT COMBO, TWEED, CLASSIC STACK, METAL STACK, R-FIER
STACK, DYNA AMP),
GAIN Knob, VOLUME Knob, SOLO Switch, VOLUME (SOLO) Knob
<EQUALIZER>
BASS Knob, MIDDLE Knob, TREBLE Knob
<PRESENCE>
PRESENCE Knob
<EFX>
EFX Knob (CHORUS, FLANGER, PHASER, TREMOLO)
<DELAY/LOOPER>
TAP/REC/PLAY/DUB Switch,
DELAY/LOOPER Knob (WARM, CLEAR, LOOPER)
<REVERB>
REVERB Knob (SPRING, PLATE)
FOOT SWITCH TYPE Switch (FS-5L, FS-5U)
● Indicators
JC CLEAN Channel, LEAD Channel, SOLO, TUNER, EFX, DELAY/
LOOPER, TAP/REC/PLAY/DUB, REVERB
● Connectors
INPUT Jack (1/4” phone type),
AUX IN Jack (Stereo miniature phone type),
LINE OUT Jack (1/4” phone type),
RECORDING OUT/PHONES Jack (Stereo 1/4” phone type),
EXT SPEAKER (1/4” phone type),
FOOT SW Jack (CH SELECT, SOLO) (1/4” TRS phone type),
FOOT SW Jack (EFX, REVERB) (1/4” TRS phone type),
FOOT SW Jack (TAP/REC/PLAY/DUB, DELAY/LOOPER)
(1/4” TRS phone type)
● Power Supply
AC 117 V, AC220 V, AC 230 V, AC 240 V (50/60 Hz)
● Power Consumption
75 W
● Dimensions
440 (W) X 275 (D) X 440 (H) mm
17-3/8 (W) x 10-7/8 (D) x 17-3/8 (H) inches
● Weight
16 kg / 35 lbs., 5 oz.
● Accessory
Owner’s Manual
● Options
Foot Switch (BOSS FS-5L, FS-5U, FS-6)
Connection Cable (PCS-31)
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior notice.
* 0 dBu = 0.775 Vrms
Specifications

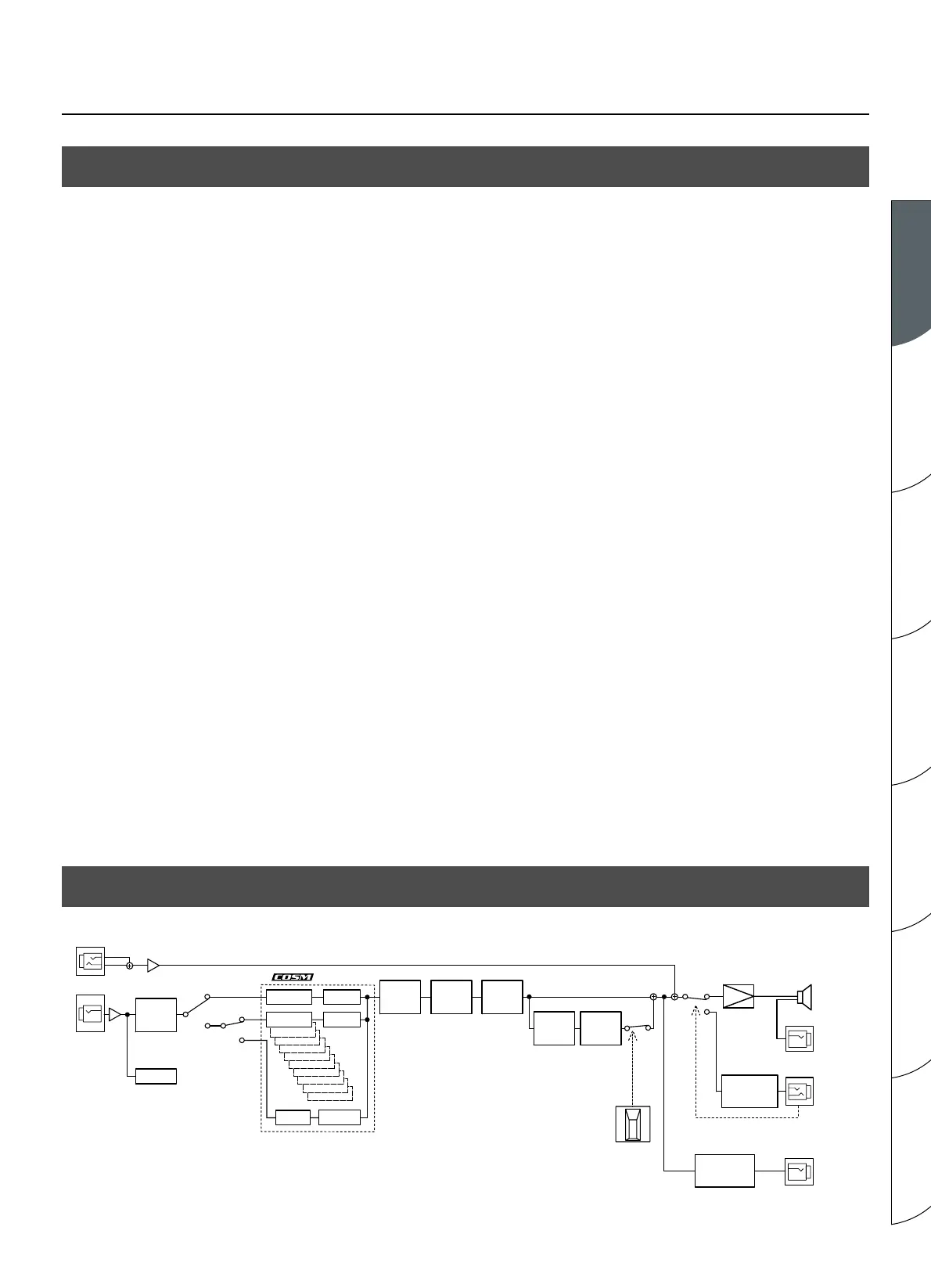

Block Diagram
DYNA AMP
R-FIER
AMPLIFIER
AUX IN
INPUT
BLACK PANEL
DLX COMBO
BRIT COMBO
TWEED
CLASSIC STACK
METAL
MUTE
POWER
AMP
SPEAKER
EXT SPEAKER
RECORDING OUT/
PHONES
CABINET &
SPEAKER
SIMULATOR
CABINET &
SPEAKER
SIMULATOR
JC CLEAN VOLUME
VOLUME
SELECT
EFX
CHORUS /
TREMOLO
DELAY
LOOPER
VOLUME
LINE OUT
SOLO
ACOUSTIC SIM
LEAD
EFX
FLANGER/
PHASER
REVERB
TUNER
LOOPER
* No sound is played through the unit’s
speaker while the phone jack is in use.
SOLO
VOLUME
LOOPER MUTE
FOOT SWITCH
