Roland CY-8 - CY-8

6
CY-8
Features
• Velocity sensitive cymbal pad provides rich
expression.
• Designed specially for cymbals, the pad offers
superior playing feel. Realistically reproduces the
cymbal’s characteristic “swinging” motion.
• You can use bow shots, edge shots, and choking
techniques.
Contents of the Box
Panel Description
Making the Settings

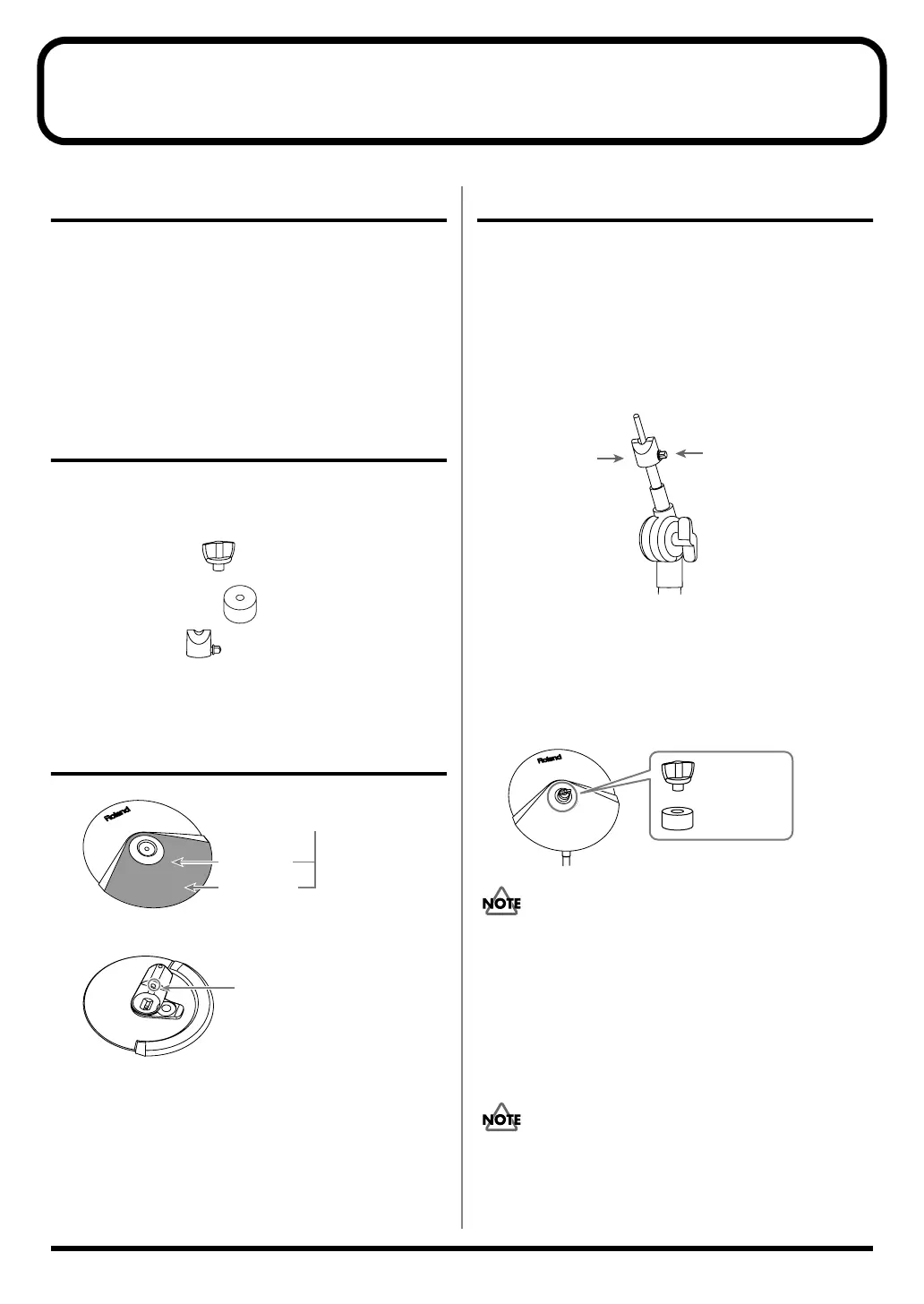

Attaching the Cymbal Pad to a Stand
Attach the CY-8 to a cymbal mount.
1. Use a commercially available tuning key to
tighten the stopper bolt.
The stopper keeps the cymbal pad from turning, and prevents
the cables from catching or getting tangled on the stand.
2.
Attach the CY-8 so the Roland logo is positioned
on the opposite side of the playing area.
3. Tighten the wing nut to obtain the desired
movement.
Use the included felt washer and the wing nut.
Take care to ensure that the cables do not touch the cymbal
units and/or the stand. A cable touching a cymbal unit or a
stand may cause double sounding or other incorrect
operation.
Connecting to a Percussion Sound
Module
921
To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the power
on all devices before making any connections.
❑ CY-8 (cymbal pad unit)
❑ Connection Cable (stereo)
❑ Wing Nut
❑ Felt Washer
❑ Stopper
■ Owner's Manual (this manual)
Bow Portion
Edge Portion
Pad Face
Output Jack
Stopper
(Be sure to
orient it correctly)
Tighten the bolt with
a commercially available
tuning key.
Wing Nut
Felt Washer
PD/CY/KD/FD-8_e 6 ページ ２００７年７月２０日 金曜日 午前９時４５分
