DS-90/90A Feb. 2000
3

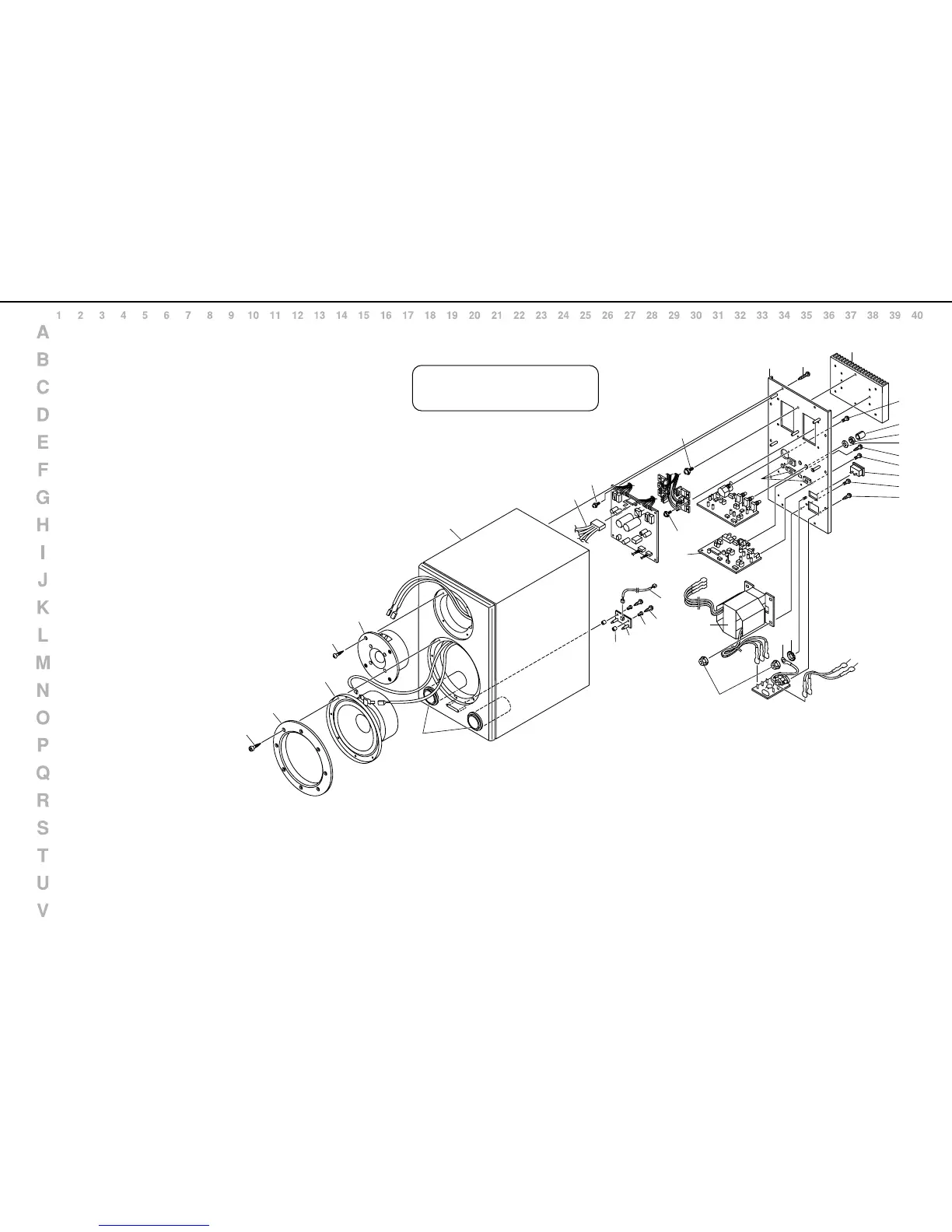

EXPLODED VIEW
[PARTS]
No. PART CODE PART NAME Q'ty
q K 17055177 CABINET ASSY (CABIN00016) 1
● 17055155 CABINET ASSY(CABIN00017) 1
w 17055182 BADGE SILVER LOGO "ROLAND" SML (HARDW00028) 1
e 17055183 LED SHEET "DIGITAL IN" LABEL (HARDW00030) 1
r 17055184 1'PORT TUBE (HARDW00032) 2
t 17055185 EDGE GRILL SPKR RING PAINTED PLASTIC (HARDW00034) 1
y 17055191 SPEAKER TWEETER 25 MM/8 OHM S0108C18 (SPEAK00019) 1
u 17055190 SPEAKER WOOFER 160 MM/4 OHM S0604F19 (SPEAK00018) 1
i 01897512 DA BOARD ASSY 1
o 01897534 ANALOG SHEET ASSY (230V/240V) 1
!0 H4019130 WIRING AWG-18 GND 70MM 1
!1 H2369418 LED SPACER LED-14T 2
!2 F2199507 LED BOARD SPACER RS-1 2
!3 F2199508 LED BOARD SPACER RS-57 2
!4 H4039102 WIRING AWG-20 UL1430 W BROWN 100MM 3
!5 H4039103 WIRING AWG-20 UL1430 W RED 100MM 3
!6 H4039104 WIRING AWG-20 UL1430 W ORANGE 100MM 3
!7 H4039105 WIRING AWG-20 UL1430 W BROWN 140MM 2
!8 H4039106 WIRING AWG-20 UL1430 W RED 140MM 2
!9 H4039107 WIRING AWG-20 UL1430 W ORANGE 140MM 2
@0 H4039108 WIRING AWG-20 UL1430 W BROWN 180MM 1
@1 H4039109 WIRING AWG-20 UL1430 W RED 180MM 1
@2 H4039101 WIRING AWG-20 UL1430 W ORANGE 180MM 1
@3 G3489210 WIRING W BLACK 90MM 1
@4 G3489211 WIRING W BROWN 90MM 1
@5 G3489206 WIRING 4P 60MM 1
@6 G3489207 WIRING 5P 120MM 1
@7 G3489208 WIRING 6P 150MM 1
@8
K G281713500 CHASSIS 1
● G281713501 CHASSIS 1
@9 G2467412 HEATSINK 1
#0 G2457147 TRANSFORMER 100V/117V 1
G2457148 TRANSFORMER 230V/240V 1
#1 01905145 SEESAW SWITCH (POWER) SDDJF10100 1
#2 G2247106 CUSHION 3
#3 G2537710 CAUTION SEAL FUSE CAUTION 117V 1
#4 G2537608 CAUTION SEAL GND CAUTION 1
#5 22485109 KNOB 248-109 3
#6 G348920501 WIRING 4P 490MM 1
#7 G348920901 WIRING VHR4N L600 + L530 1
[SCREWS]
No. PART CODE PART NAME Q'ty
a 17055188 WOOD SCREW-BRT 10-20x1' ZINC (SCREW00043) 8
b 17055187 SCREW 6-20x5/8' TORX PAN HEAD TYPE A-B BLK OX (SCREW00042) 4
c 17055186 SCREW #8x3/4' SHT MTL PAN HEAD PHILLIPS BLK OX (SCREW00006) 10
d 17055189 WOOD SCREW-ZINC #4x3/4' PAN HEAD PHILLIPS (SCREW00047) 2
40013001 SCREW M4x8 PAN W SEMS BZC 6
f 40012967 SCREW 3x10 PAN MACHINE SCREW W/SW+PW BZC 6
g 40013056 SCREW 3x6 PAN MACHINE W/SW+SMALL PW ZC 5
h K 40010245 SCREW 3x6 BINDING BZC 1
● 40010245 SCREW 3x6 BINDING BZC 2
I 40011312 SCREW 3x8 BINDING TAPTITE P FE BZC 4
j 40012501 SCREW 4x12 BINDING TAPTITE P FE BZC 2
k 40013012 SCREW M4x10 PAN SEMS FE BZC 4
l 40011767 FRANGE HEX NUT M4 FECM 5
m 40011889 EXTERNAL TOOTH WASHER M4 FECM 1
17048630 VR ACCESSORY NUT M9 3
o 17048631 VR ACCESSORY WASHER M9 3
K = DS-90, ● = DS-90A
a
t
b
u
y
q
#7
g
e
@8
c
@9
i
#5
n
o
i
h
#1
k
j
#2
i
f
#6
#0
!3
!1
!2
d
l
!0
m
@4
@3
r
Note : The cabinet structure is slightly different between the
DS-90 and DS-90A. All other parts are indentical.
