Roland e-MIX STUDIO SP-808EX User Manual

3
Apr. 2000 SP-808EX

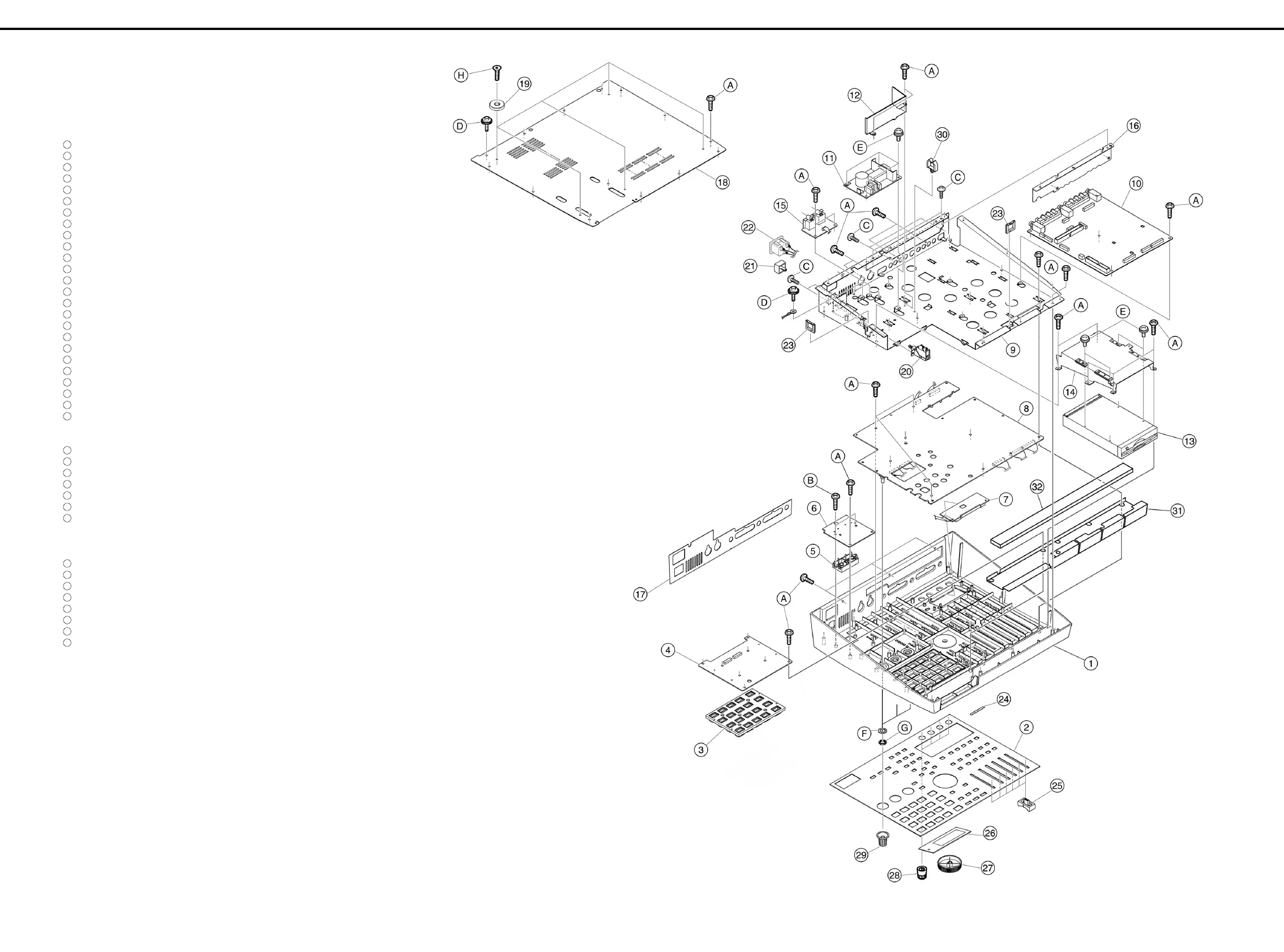

EXPLODED VIEW ／分解図
／分解図／分解図
／分解図
[PARTS]
No. PART CODE PART NAME Q’ty
02121978 TOP CASE 1
02121990 TOP PANEL 1
01450990 RUBBER SW 1
71016045 SWITCH BOARD ASSY 1
01348578 BEAM ESCUTCHEON 1
70909489 BEAM BOARD ASSY 1
01348490 LCD UNIT RCM6038T-A 1
70909012 PANEL BOARD ASSY 1
01348501 SUB CHASSIS 1
71676878 MAIN BOARD ASSY 1
01451678 SWITCHING REGULATOR A1KW1AA265 1
01458678 SHIELD PANEL 1
01789789 ZIP DRIVE 250MB WHITE 1
01457178 HD HOLDER 1
71016034 MIDI BOARD ASSY 1
02121989 EXP COVER 1
01349967 REAR PANEL 1
01348590 BOTTOM COVER 1
01782789 VM RUBBER FOOT 4
13129139 AC PUSH SWITCH SDDLB1-A-D-2 TV-5 5A/250V 1
22495565 F S-BUTTON MX BLK 1
01458878 WIRING AC ASSY 1
00902790 CORD BUSHING EDS-1208U 2
40346489 STATUS SEAL 1
01349423 U S-KNOB M1 LCG/DCG (TRACK) 4
01349434 U S-KNOB M1 MRD/LCG (MASTER) 1
01569801 U S-KNOB M1 BLU/LCG (PAD) 1
02126834 DISPLAY COVER 1
22485303 D R-KNOB L BLK (VALUE) 1
22485188 M R-KNOB MF BLK (INPUT) 4
01343112 J R-KNOB MF BLK/LCG (EFFECT) 3
01561323 HOOK CLAMP UAMS-09-0 1
02127567 BLIND SHEET 1
02129001 SHEET SPACER 1
[SCREWS]
No. PART CODE PART NAME Q’ty
40011101 SCREW 3x8 BINDING TAPTITE B BZC 36
40012256 SCREW 3x10 BINDING TAPTITE B ZC 2
40012534 SCREW 3x6 BINDING TAPTITE S BZC 6
40342989 M4x8 LO2 BZC 2
40012945 SCREW M3x6 PAN MACHINE W/SW+PW BZC 4
******** M9 SPACER INNER GEAR TYPE 1
******** M9 NUT THIN TYPE 1
40011156 SCREW 3x8 FLAT TAPTITE B BZC 5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
A
B
C
D
E
F
G
H
