EM-2000
Oct, 1998
LEFT CONTACT PCB ASSY w/RUBBER ASSY 7695005000

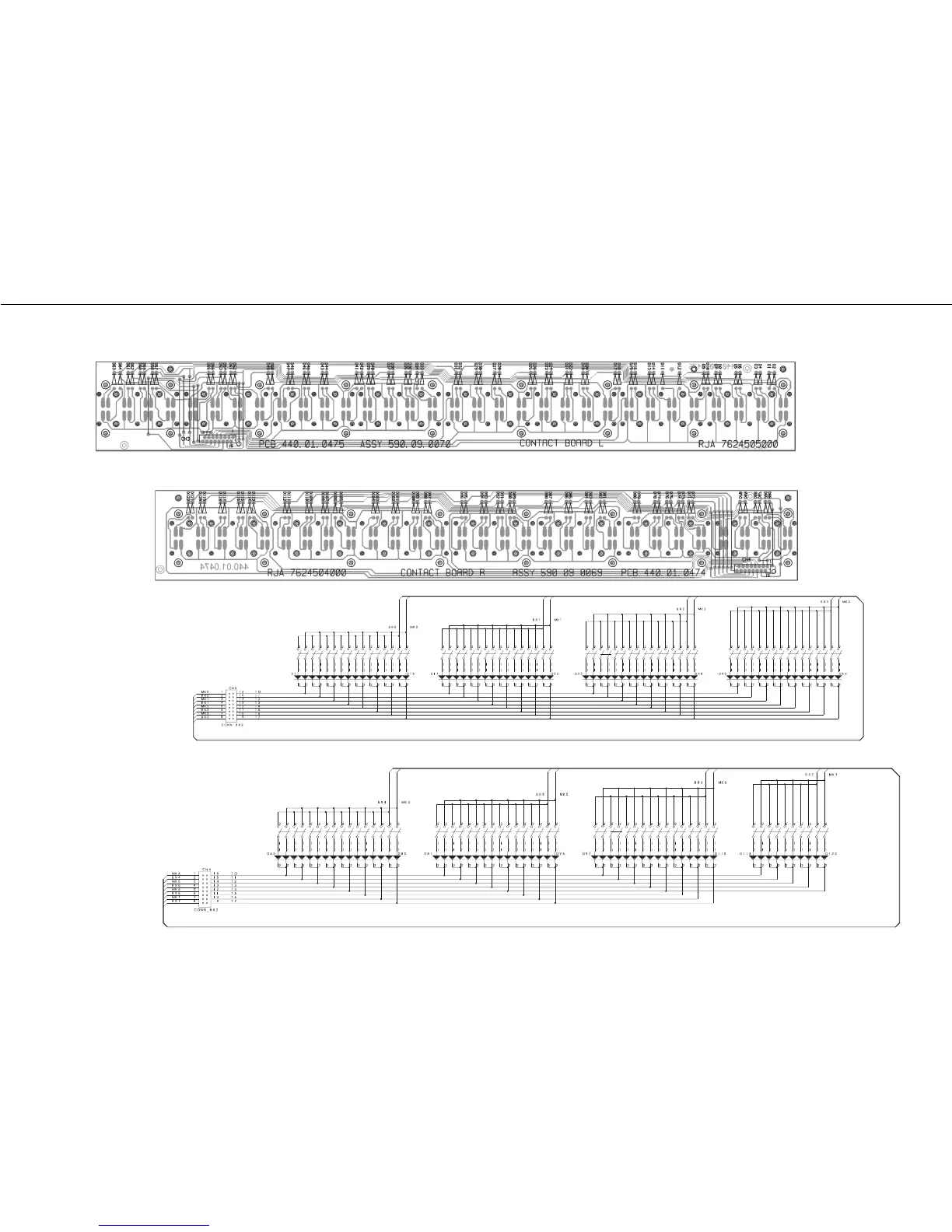

CIRCUIT DIAGRAM (LEFT CONT .PCB ASSY)
CIRCUIT DIAGRAM (RIGHT CONT. PCB ASSY)
RIGHT CONTACT PCB ASSY w/RUBBER
ASSY 7695004000
View from component side
View from component side
