Roland Fantom XR Service Notes

9
Fantom-XR

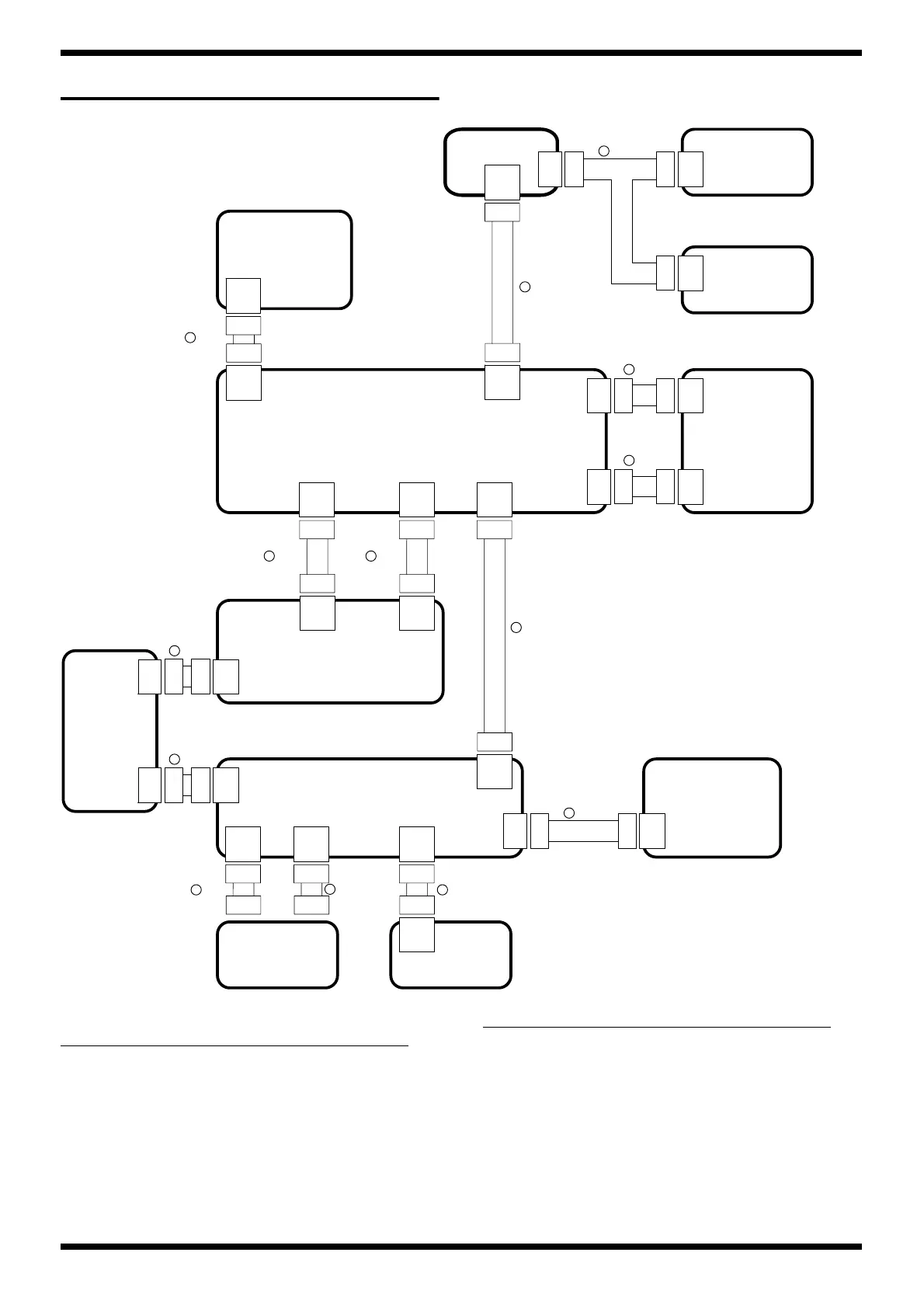

WIRING DIAGRAM
fig.wiring
CN11 CN6
CN3
CN10
LCD
ENCODER BOARD
SUB BOARD
JACK BOARD
PANEL BOARD
CN5
CN16
CN1
CN8
CN11
CN23
EXP BASE BOARD
INLET BOARD
PWER SW BOARD
MAIN BOARD
5PINL2PINK
CN4
CN5
28PINM
CN5
CN8
40PIN E
CN4
CN7
34PIND
CN9
CN1
CN8
2PIN
A
PHONES BOARD
CN6
CN2
3PINI
CN7
CN2
15PINH
2PING28PINF
CN18
CN2
50PINC
28PINJ
CN10
CN2
7PINB
PC CARD BOARD
POWER SUPPLY UNIT
N
NO
PART CODE PART NAME DESCRIPTION
A. 03566634 WIRING W1
B. 03565889 WIRING W2
C. 03565934 BAN CARD BNCD-S-P=0.50-K-50-500
D. 03565967 BAN CARD BNCD-P=1.00-K-34-50
E. 03565956 BAN CARD BNCD-P=1.00-K-40-50
F. 03453667 BAN CARD BNCD-P=1.00-K-28-50
G. 03565901 WIRING W4
H. 03565890 WIRING W3
I. 02341723 WIRING 3X50-P2.0-PHR-PHR-F
J. 03565945 BAN CARD BNCD-P=1.00-K-28-120
K. 03565912 WIRING 2X80-P2.0-PHR-PHR-F
L. 03565923 WIRING 5X60-P2.0-PHR-PHR-F
M. 03565945 BAN CARD BNCD-P=1.00-K-28-120
N. This wiring is inculded LCD UNIT
NO PART CODE PART NAME DESCRIPTION
