Roland GR-1 User Manual

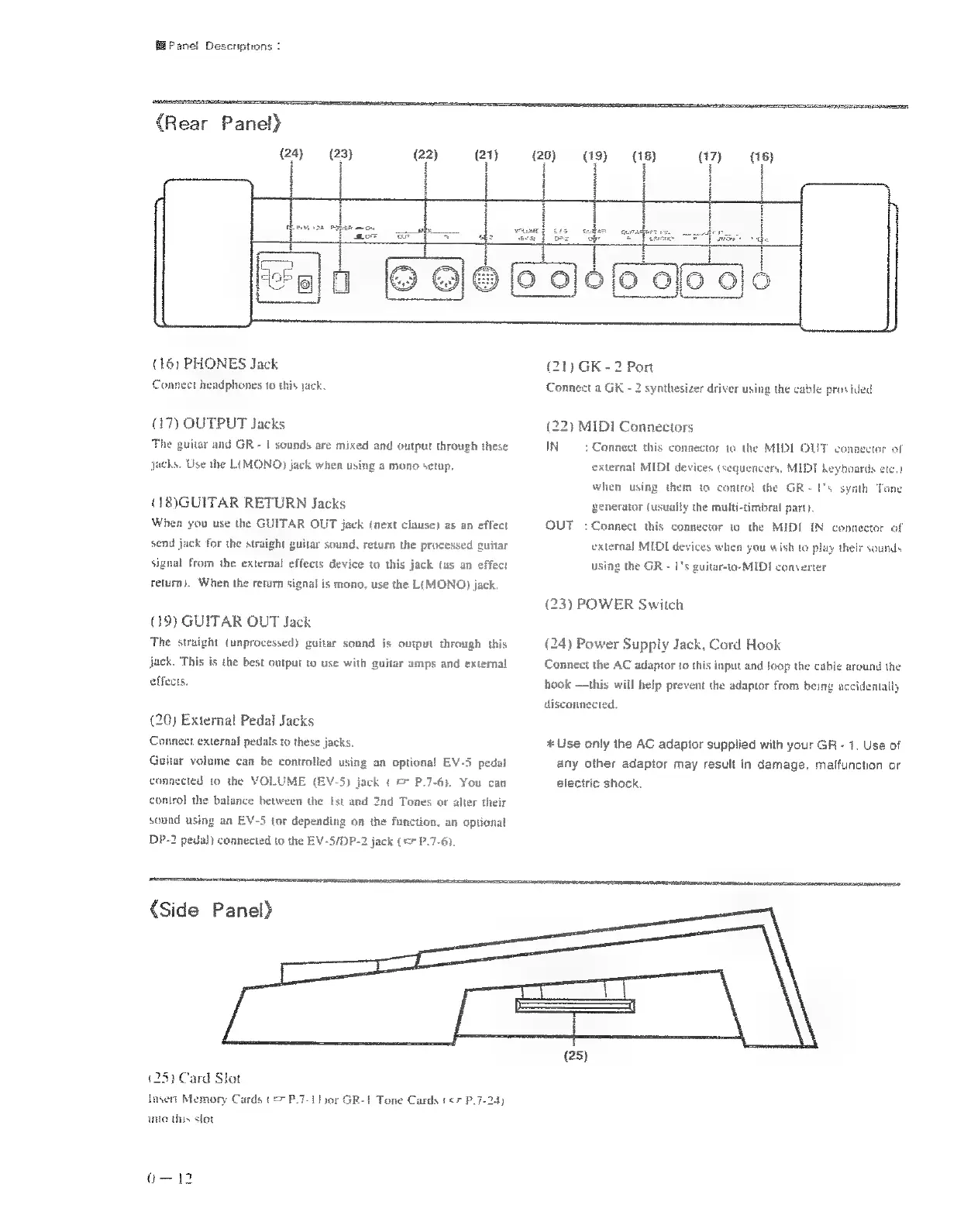

Pane! Descriptions :
(Rear Panel)
(24) (23) (22) QU
| i i i
i j i
(20) 8) a8 7. 8)
Tas
i
(16) PHONES Jack
Connect headphones to thi
(17) QUTPUT Jacks
The guitar and GR - 1 sounds are mixed and output through these
jacks. Use the LIMONO) jack when u
g a mono setup,
(18)GUITAR RETURN Jacks
When
you
use
the
GUITAR
OUT
jack
(next
clause)
as
an
effect
send jack for the straight guitar sound, return the prc guitar
signal from the external effects device to this jack (as an effect
return). When the return signal is mono, use the LIMONO) jack.
(19) GUITAR OUT Jack
The straight (unprocessed) guitar sound is output through this
jack. This is the best output to use with guitar amps and external
effects.
(20) External Pedal Jacks
Connect external pedals to these jacks.
Guitar volume can be controlled using an optional EV-5 pedal
connected 10 the VOLUME (EV-5) jack ( &r P.7-6), You can
control the balance between the [st and 2nd Tones or alter their
sound using an EV-5 tor depending on the function. an optional
DP-2 pedal) connected to the EV-5/DP-2 jack ( «c P.7-6).
(21) GK - 2 Pon
Connect a GK - 2 synthesizer driver using the cable provided
(22) MIDI Connectors
IN : Connect this connector to the MIDI OUT connector of
external MIDI devices (sequencers, MIDI keyboards etc.)
when using them to control the GR - Us synth Tone
generator (usually the multi-timbral part).
OUT : Connect this connector to the MIDI IN connector of
rnal MIDI devices when you wish to play their sounds
using the GR - 1's guitar-to- MIDI converter,
(23) POWER Switch
(24) Power Supply Jack, Cord Hook
Connect the AC adaptor to this input and loop the cable around the
hook —this will help prevent the adaptor from being accidentally
disconnected.
* Use only the AC adaptor supplied with your GR - 1. Use of
any other adaptor may result in damage, malfunction or
electríc shock.
(Side Panel)
(25) Card Slot
Insert Memory Cards (57 P.7-1 Dor GR-E Tone Cards (7 P.7-24j
into this slot.
