Roland Groovesampler SP-808 User Manual

右左右左
右 左右 左
2
JACK YKC21-3045
(13449650)
JACK YKC21-3044
(00458801)
TORX178A
(01343001)
TOTX178
(01239078)
D-SUB CONNECTOR
DBLC-J25SAF-20L9F
(13429314)
SP808-OP1
EXP COVER
(01457634)
WIRING AC ASSY
(01458878)
JACK YKC21-3881
(01347789)
JACK LGR4609-7000
(00569278)
REAR PANEL
(01349967)
MIDI SCOKET
YKF51-5054
(13429825)
F S-BUTTON MX BKL
(22495565)
AC PUSH SWITCH
SDDLB1-A-D-2
(13129139)
M R-KNOB MF BLK/RED
(01459589)
12M/M ROTARY POT.
EVJY95FOIB14 10KB
(01452701)
M R-KNOB MF BLK/RED
(01459589)
9M/M ROTARY POT.
EVUF2KLB14 10KB L=12.5
(01340234)
DISPLAY COVER
(01348512)
LCD RCM6038T-A
(01348490)
D R-KNOB L BLK
248-303
(22485303)
ROTARY ENCODER
EC16B24104
(01124478)
U S-KNOB M1 LCG DCG
(01349423)
60M/M SLIDE POT.
EWA Q1A C10 B54
(01342934)
U S-KNOB M1 MCG/LCG
(01459534)
60M/M SLIDE POT.
EWA Q1A C10 B54 50KB
(01342934)
U S-KNOB M1 RED/LCG
(01459545)
60M/M SLIDE POT.
EWA Q1A C10 B54
(01342934)
LED SLR-332VR3F
(01011656)
PHOTE DIODE TPS706
(01342778)
BEAM ESCUTCHEON
(01348578)
LED TLN105B
(01342789)
TOP PANEL
(01349934)
J R-KNOB MF BLK RED
(01452423)
9M/M ROTARY POT.
RK09L1140 10KB L=17.5
(01457234)
RUBBER SW
(01450990)
TOP CASE
(01348412)
ZIP DRIVE
(01561390)

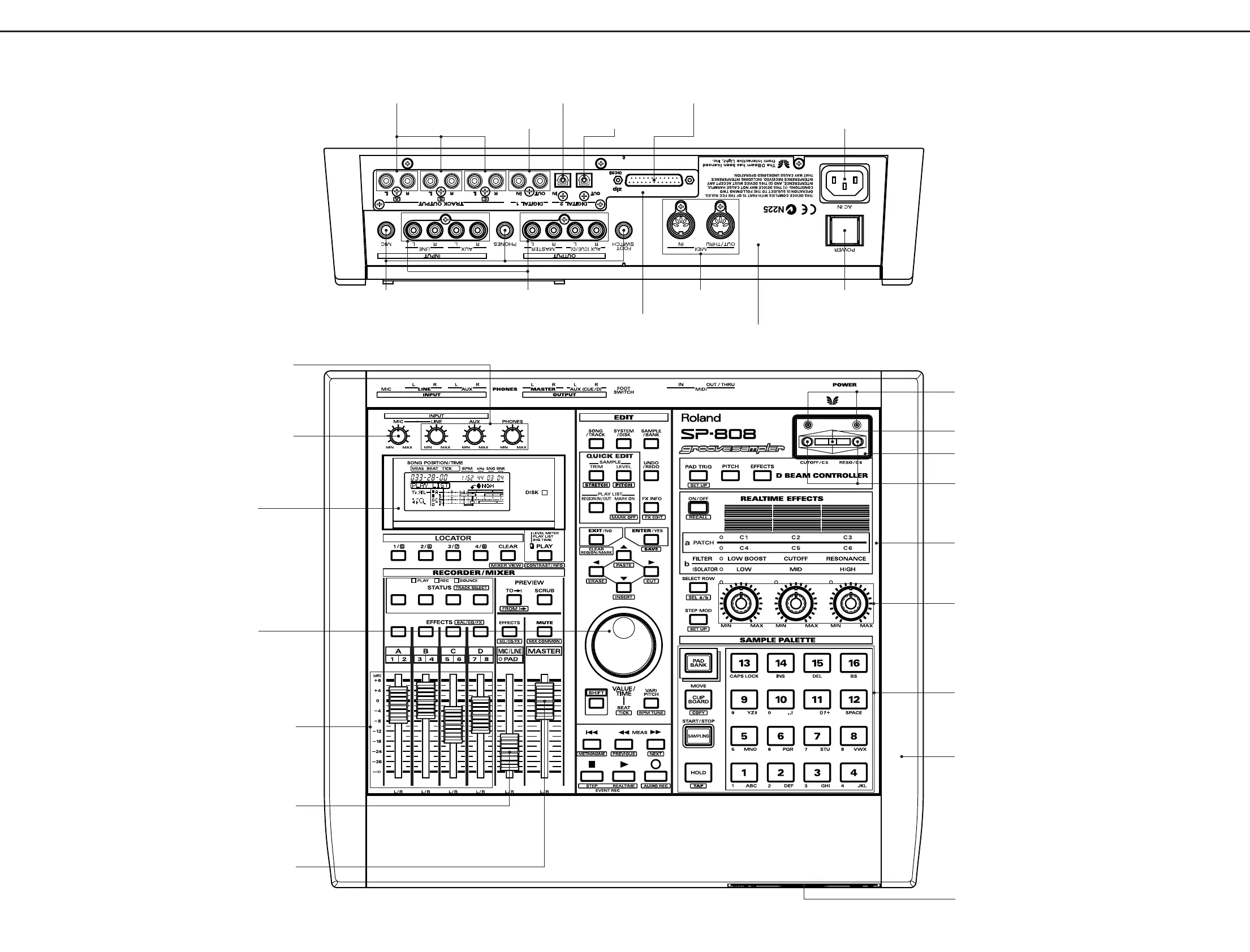

LOCATION OF CONTROLS／パネル配置図 (SP-808Pro)
Aug, 1998
SP-808/808Pro
(REAR VIEW)
(TOP VIEW)
