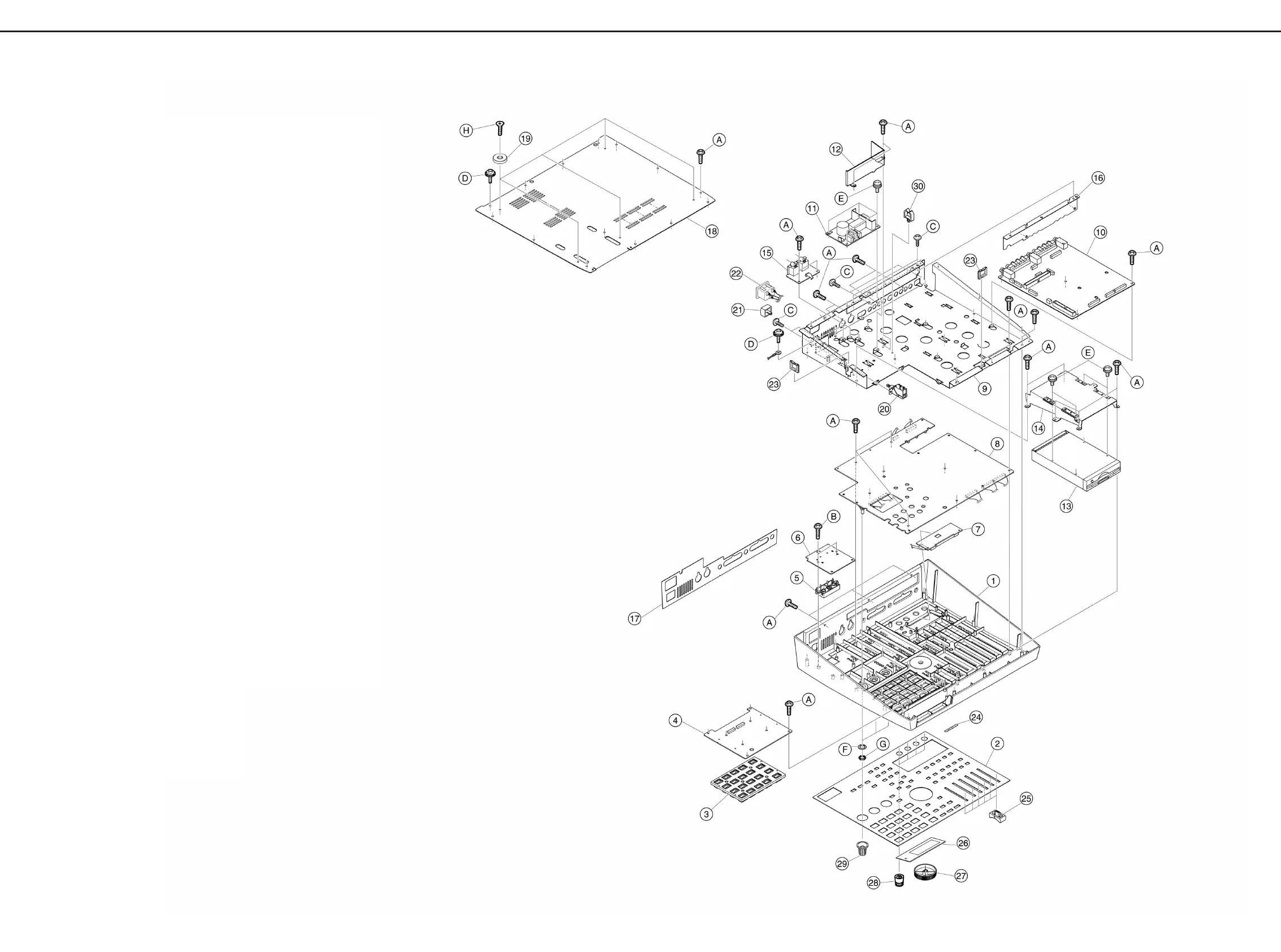

EXPLODED VIEW／分解図 (SP-808)
[PARTS]
No. PART No. PART NAME
q 01348412 TOP CASE
w 01349934 TOP PANEL
e 01450990 RUBBER SW
r 71016045 SWITCH BOARD
t 01348578 BEAM ESCUTCHEON
y 70909489 BEAM BOARD
u 01348490 LCD UNIT RCM6038T-A
i 70909012 PANEL BOARD
o 01348501 SUB CHASSIS
!0 70909001 MAIN BOARD
!1 01127590 SWITCHING REGULATOR A1KW1AA240
!2 01458678 SHIELD PANEL
!3 01561390 ZIP DRIVE JU-811T03
!4 01457178 HD HOLDER
!5 71016034 MIDI BOARD
!6 01348545 EXP COVER (SP-808 only)
!7 01349967 REAR PANEL
!8 01348590 BOTTOM COVER
!9 22355160 FOOT D25
@0 13129139 AC PUSH SWITCH SDDLB1-A-D-2 TV-5 5A/250V
@1 22495565 BUTTON F S-BUTTON MX BLK (POWER)
@2 01458878 WIRING AC ASSY
@3 00902790 CORD BUSHING EDS-1208U for AC CORD
@4 17048436 STATUS SEAL 04484-202
@5 01349423 KNOB U S-KNOB M1 LCG/DCG (TRACK)
01459534 KNOB U S-KNOB M1 MCG/LCG (PAD)
01459545 KNOB U S-KNOB M1 RED/LCG (MASTER)
@6 01348512 DISPLAY COVER
@7 22485303 KNOB D R-KNOB L BLK (VALUE)
@8 01459589 KNOB M R-KNOB MF BLK/RED (INPUT)
@9 01452423 KNOB J R-KNOB MF BLK/RED (EFFECTS)
#0 01561323 HOOK CLAMP UAMS-09-0
[SCREW]
A 40011101 M3x8mm Binding Taptight B BZC
B 40012256 M3x10mm Binding Taptight B ZC
C 40012534 M3x6mm Binding Taptight S BZC
D
********
M4x8mm LO2 BZC
E 40012945 M3x6mm Pan Machine Screw W/SW+PW BZC
F
********
M9 SPACER INNER GEAR TYPE
G
********
M9 NUT THIN TYPE
H 40011156 M3x8mm Flat Taptight B BZC
Aug, 1998
