KEYBOARD PARTS LIST
fig.keys.eps
10
2
6 7 8
4
5
1
3
9

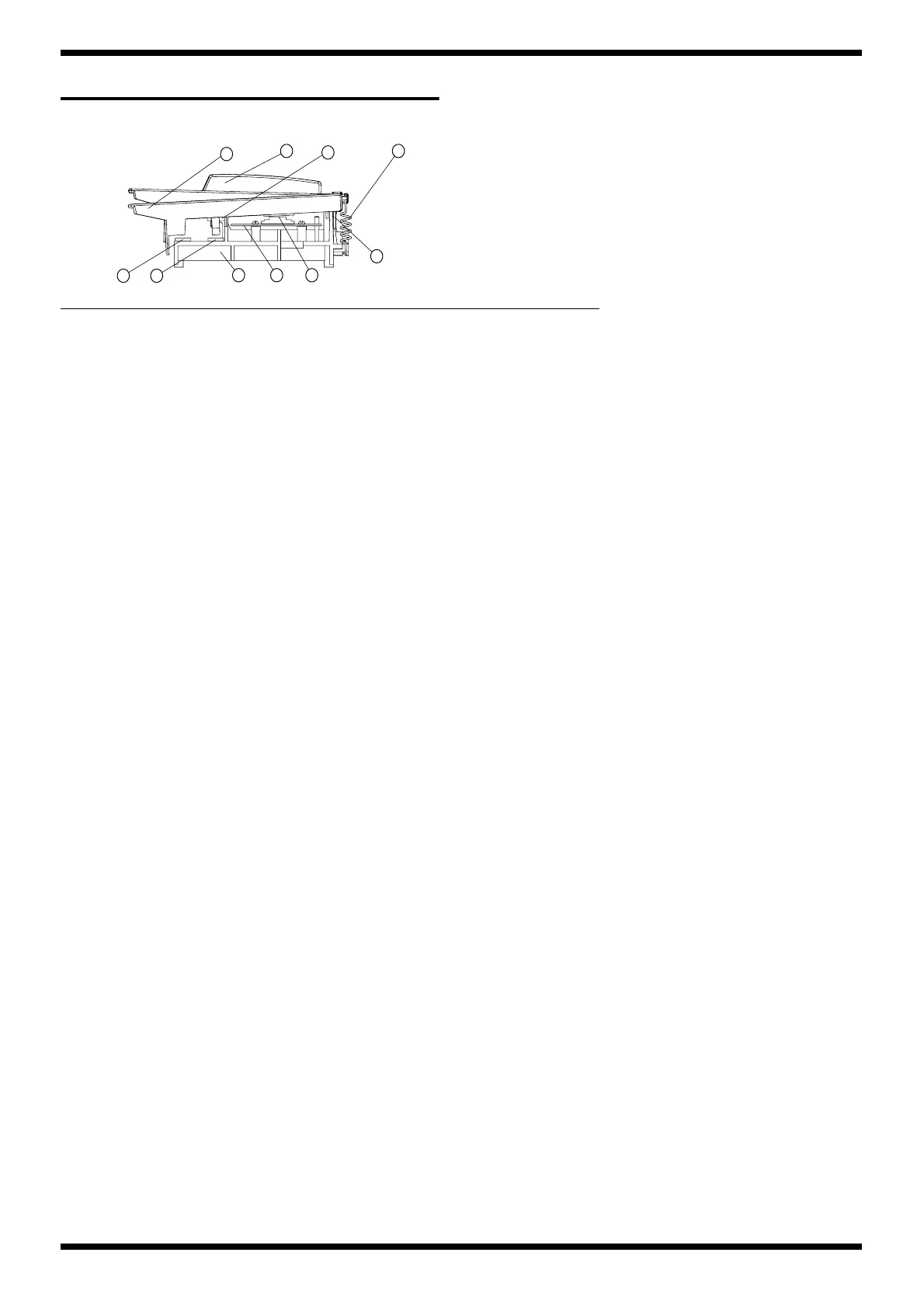

A detailed KEYBOARD ASSY
No PART CODE PART NAME DESCRIPTION Q’TY
1 03786378 NATURAL KEY C FOR MSK-2 5
1 03786389 NATURAL KEY D FOR MSK-2 5
1 03786390 NATURAL KEY E FOR MSK-2 5
1 03786401 NATURAL KEY F FOR MSK-2 5
1 03786412 NATURAL KEY G FOR MSK-2 5
1 03786423 NATURAL KEY A FOR MSK-2 5
1 03786434 NATURAL KEY B FOR MSK-2 5
1 03786445 NATURAL KEY C’ FOR MSK-2 1
2 03786456 SHARP KEY FOR MSK-2 25
3 03786312 KEY FELT MSK-2 HOOK T2.0MM L828XW5.5 1
4 03456967 COILED SPRING MSK-1 NATURAL KEY 36
4 03456978 COILED SPRING MSK-1 SHARP KEY 25
5 03786301 KEY FELT MSK-2 BACK T4.0MM L840XW6.0 1
6 03456856 RUBBER SW KEYBOARD 12P FOR MSK-1 4
6 03456867 RUBBER SW KEYBOARD 13P FOR MSK-1 1
7 03786345 PWB KEYBOARD LO ASSY FOR MSK-2 1
7 03786356 PWB KEYBOARD HI ASSY FOR MSK-2 1
8 ******** CHASSIS KEYBOARD FOR MSK-2 1
9 03786334 KEY FELT MSK-2 BOTTOM M T2.0MM L840XW10 1
10 03786323 KEY FELT MSK-2 BOTTOM L T2.0MM L840XW15 1
