Panel Descriptions
7
ENGLISH
ENGLISH
ENGLISH ENGLISH ENGLISH ENGLISH
Rear Panel
1.
MIDI Out/In connectors
Connect to external MIDI devices to exchange perfor-
mance data (p. 30).
2.
Input jacks
These jacks can be connected to another sound generating
device or an audio device, so that the sound of that device
will be output from the HP103e/102e’s speakers (p. 29).
3.
Output jacks
Allows you to output the piano’s sound to sound rein-
forcement equipment to obtain a more powerful sound.
These can also be connected to a tape recorder or other
recording device to record a performance (p. 29).
4.
Headphones Jacks
A set of headphones can be connected here (p. 9).
5.
Pedal connector
Connect the pedal cable of the special stand to this con-
nector (p. 8).
6.
AC Inlet
Connect the supplied power cord here.
123
5.
6.
4.

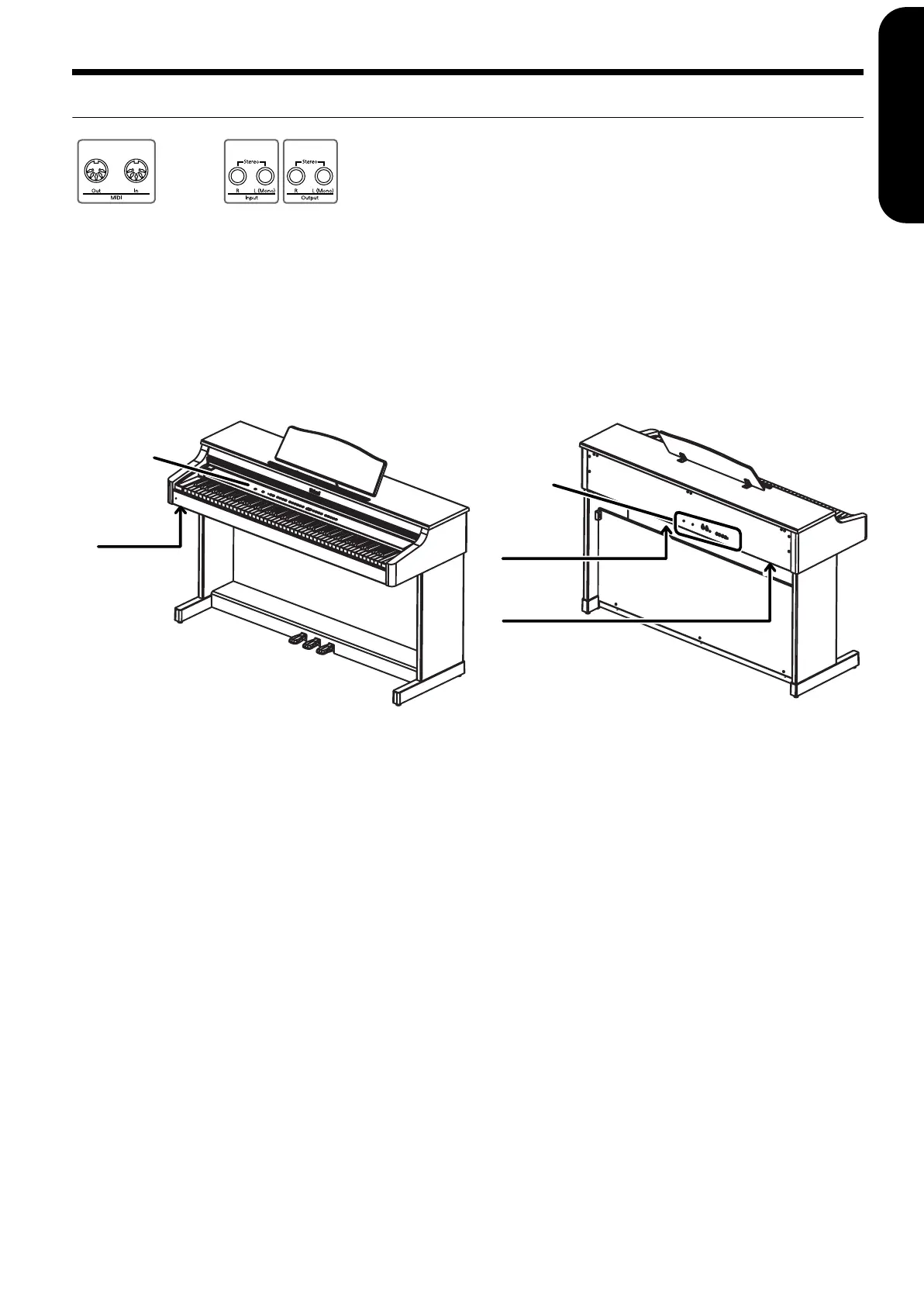

Front Panel
Headphones
Jack
Rear Panel
Pedal Jack
AC Inlet
(Pictured: HP103e)
HP103_e.book Page 7 Sunday, September 12, 2004 1:37 PM
