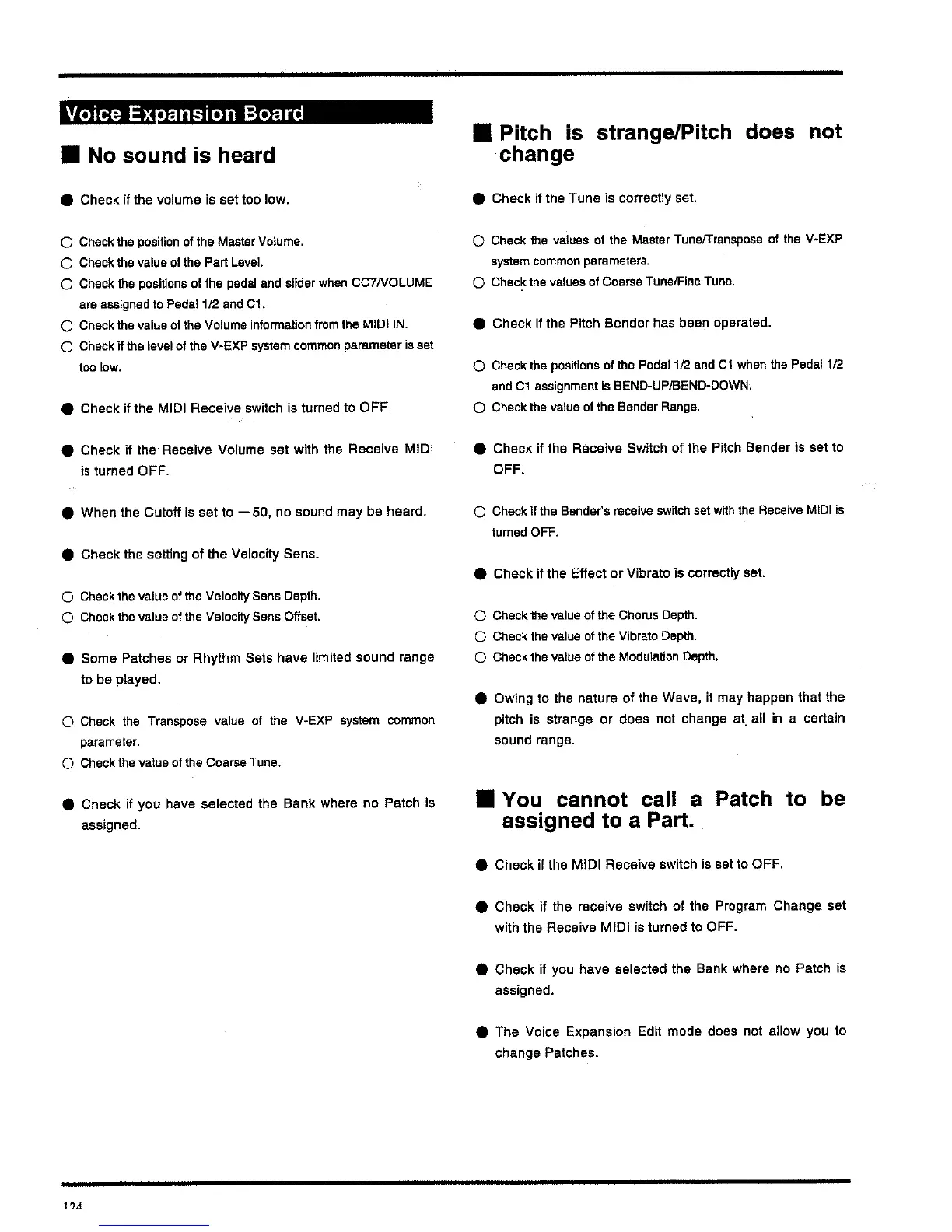

Roland JV-90 - Voice Expansion Board Troubleshooting: no Sound Is Heard; Voice Expansion Board Troubleshooting: Pitch Is Strange;Pitch Does Not Change; Voice Expansion Board Troubleshooting: You Cannot Call a Patch to be Assigned to a Part

160 pages
