KC-100
Dec, 1997
[PARTS]
No. PART No. PART NAME
q G281711901 CHASSIS
w G246770101 HEATSINK
e G2457140 POWER TRANSFORMER 100V/117V
G2457139 POWER TRANSFORMER 230V/240V
r G3497123 AC CORD VCTF 100V
G349712401 AC CORD SJT 117V
G3497125 AC CORD SY010 BLK 230V
G3497127 AC CORD 57226604 230VE
G3497126 AC CORD FC-305 230VA
t 22497565 BUTTON POWER SW
y 7098605000 AC KNOB
u 12369410RT LINE CORD STRAIN RELIEF 1702B
i F2257201 FUSE BARRIER(117V ONLY)
o 01341534 MAIN BOARD ASSY 230/240V
!0 01341534 MAIN BOARD ASSY 230/240V
!1 01341534 MAIN BOARD ASSY 230/240V
!2 01341534 MAIN BOARD ASSY 230/240V
!3 2215075600 JACK NUT #756
!4 G2257113 TO-3P INSULATING SHEET
a 40011767 M4 FLANGE NUT ZC
b 40011889 M4 EXT.TOOTH WASHER ZC
c ******** Pin (B-6)
d 40011756 M3 FLANGE NUT ZC
e H5019411 M3x20 BINDING w/INT.TOOTH WASHER BZC
f 40010345 M4x10 BINDING BZC
g 40010434 M3x10 BINDING MACHINE SCREW W/SW BZC
h 40010334 M4x8 BINDING BZC
i 40010423 M3x8 BINDING w/INT.TOOTH WASHER BZC
j 40011312 M3x8 BINDING TAPTIGHT P BZC
k H5019404 M3x6 BINDING w/SPRING WASHER BZC(117V ONLY)
l ******** V.R.Accessory Washer M8
m ******** V.R.Accessory Nut M8
n G2157502 STANDOFF M3x20

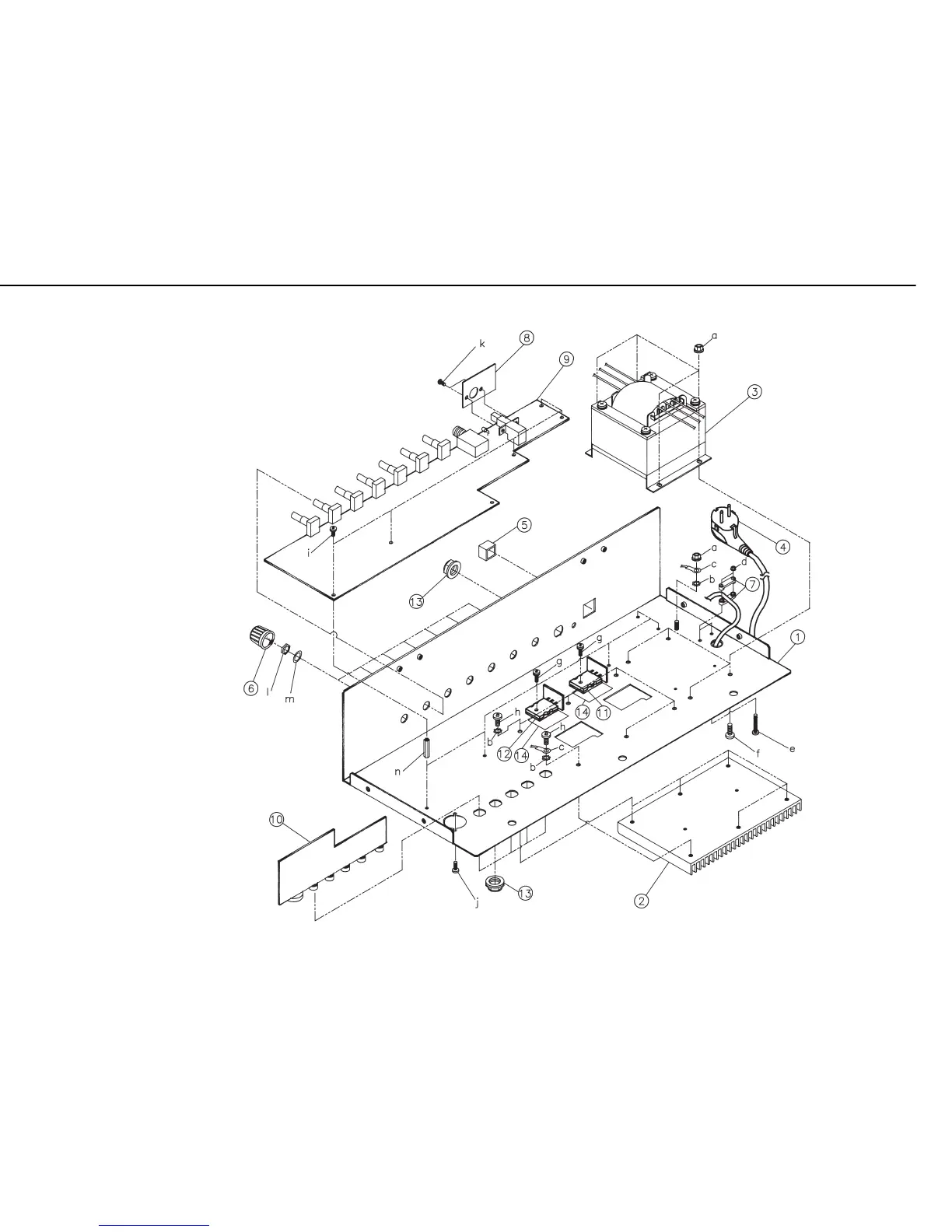

CHASSIS EXPLODED VIEW
