5

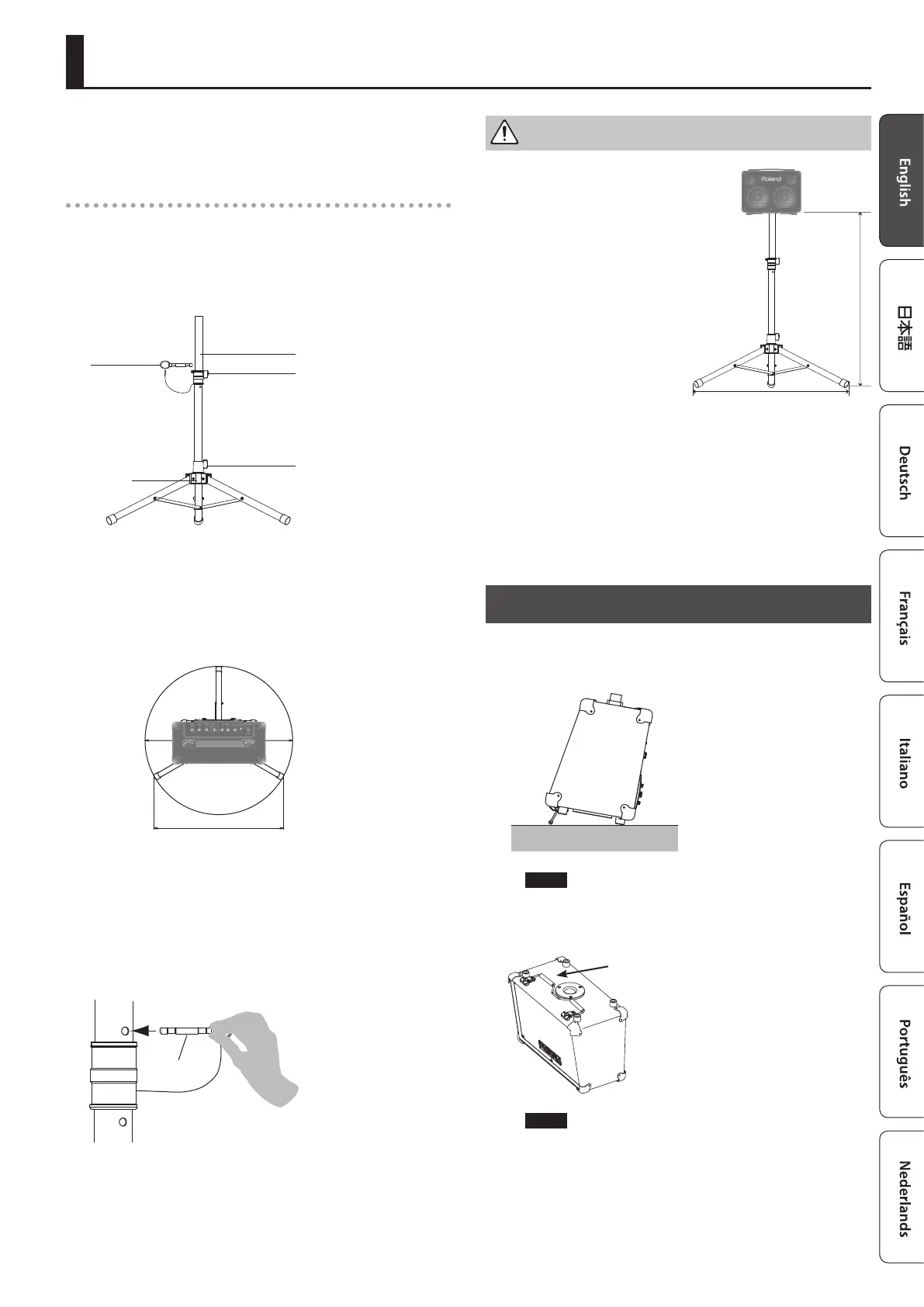

Using a Speaker Stand
By using this unit with the ST-A95 speaker stand (sold separately),
it can be positioned at the ideal height for monitoring or use as a
simple PA system.
Attaching the ST-A95 stand
* You must obtain the assistance of at least one other person
when attaching the unit to the speaker stand, or when
adjusting the height of the speaker stand with the unit
attached.
* When setting up, take care not to pinch your ngers.
Stopper
Upper tube
Height adjustment knob
Tripod knob
Tripod
1. Loosen the tripod knob, and open the tripod.
After you’ve opened the tripod suciently, tighten the tripod
knob.
* As shown in the illustration below, open the tripod so that its
feet are more than 98 cm (38-5/8”) apart. The tripod will be
unstable if it is not opened wide enough.
Leg spread: 98 cm or
more (38-5/8”)
Diameter:
112 cm
or more
(44-1/8”)
2. Loosen the height adjustment knob, and extend
the upper pipe.
3. Insert the stopper into the upper tube to obtain the
desired height, up to a maximum height of 140 cm
(55-1/8”) for the stand.
Stopper
* The stopper must be inserted when using the system.
4. Tighten the height adjustment knob.
5. Insert the unit onto the upper tube.
WARNING
5 The KC-220 is designed to
be used only in combination
with a Roland-manufactured
speaker stand (ST-A95). Do
not use it with any other
stand.
5 As shown in the illustration on
the right, adjust the speaker
stand to a height of no more
than 140 cm, and open the
tripod to a spread of 98 cm or
more.
5 Adjusting the speaker stand
to a height greater than 140
cm or the tripod to a spread of
less than 98 cm may allow the
system to fall over, resulting in damage or personal injury.
5 If you use the unit with a speaker stand, do not place it on an
unstable or tilted location. You must place the system on a
stable, horizontal location.
5 Cables connected to the unit should have enough slack, so that
they will not cause an accident if someone trips over them.
5 To prevent accidents caused by falling objects, do not place
anything on top of a unit that is mounted on a speaker stand.
Using the KC-220’s Arm Stand
When using the KC-220 at a low position such as on the oor,
extending the arm stand will make the sound from the speakers
easier to hear.
NOTE
5 If you use the arm stand, you must place the KC-220 on a
horizontal surface.
5 Fold the arm stand if you’re not using it.
Arm stand
NOTE
5 Do not lift or carry the KC-220 by grasping its arm stand.
5 When using the arm stand, do not place objects on the KC-220,
or sit or stand on the KC-220.
5 Take care not to pinch your ngers when folding the arm stand.
98 cm or more (38-5/8”)
140 cm or
less (55-1/8”)
