Roland KC-60 - Appendices; Block Diagram and Specifications

11
Appendices

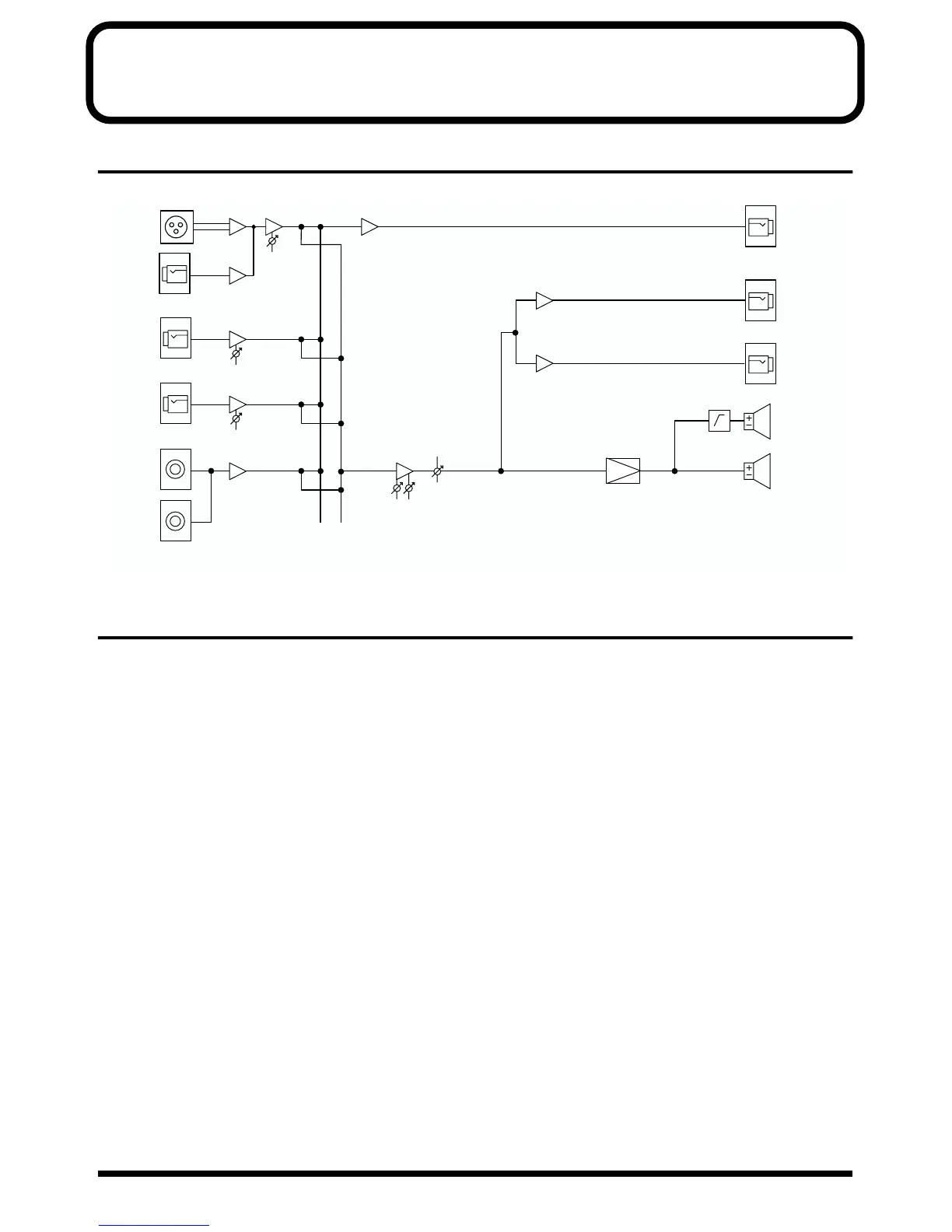

Block Diagram
Main Specifications
Rated Power Output
40 W
Nominal Input Level (1 kHz)
Input
Channel 1 (MIC/LINE): -50 – -20 dBu
Channel 2, 3 (LINE): -20 dBu
AUX IN: -10 dBu
Nominal Output Level
LINE OUT: +4 dBu
SUBWOOFER OUT: +4 dBu
* 0 dBu = 0.775 Vrms
Speakers
25 cm (10 inches) x 1
Tweeter x 1
Controls
Channel 1 (MIC/LINE) Volume Knob
Channel 2 (LINE) Volume Knob
Channel 3 (LINE) Volume Knob
Equalizer: LOW Knob, HIGH Knob
VOLUME Knob
POWER Switch
Indicator
POWER
Connectors
Channel 1 Input Jack (XLR type, 1/4” phone type)
Channel 2 Input Jack (1/4” phone type)
Channel 3 Input Jack (1/4” phone type)
AUX IN Jack (RCA phono type)
LINE OUT Jack (1/4” phone type)
SUBWOOFER OUT Jack (1/4” phone type)
PHONES Jack (1/4” TRS phone type, mono signal output)
Power Supply
AC 117 V, AC 230 V, AC 240 V
Power Consumption
45 W
Dimensions
420 (W) x 300 (D) x 410 (H) mm
16-9/16 (W) x 11-13/16 (D) x 16-3/16 (H) inches
Weight
12.5 kg
27 lbs 9 oz
Accessory
Owner’s Manual
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior
notice.
TWEETER
WOOFER
LOW
HIGH
POWER AMP
HIGH PASS FILTER
MASTER VOL
CH1
MIC/LINE
CH 3
LINE
CH1
MIC/LINE
BALANCED
LINE OUT
SUBWOOFER
OUT
PHONES
CH 1 VOL
HOT
COLD
CH 3 VOL
CH 2 VOL
AUX IN
L
AUX IN
R
LINE OUT
SPEAKER
CH 2
LINE
