c:^
(D

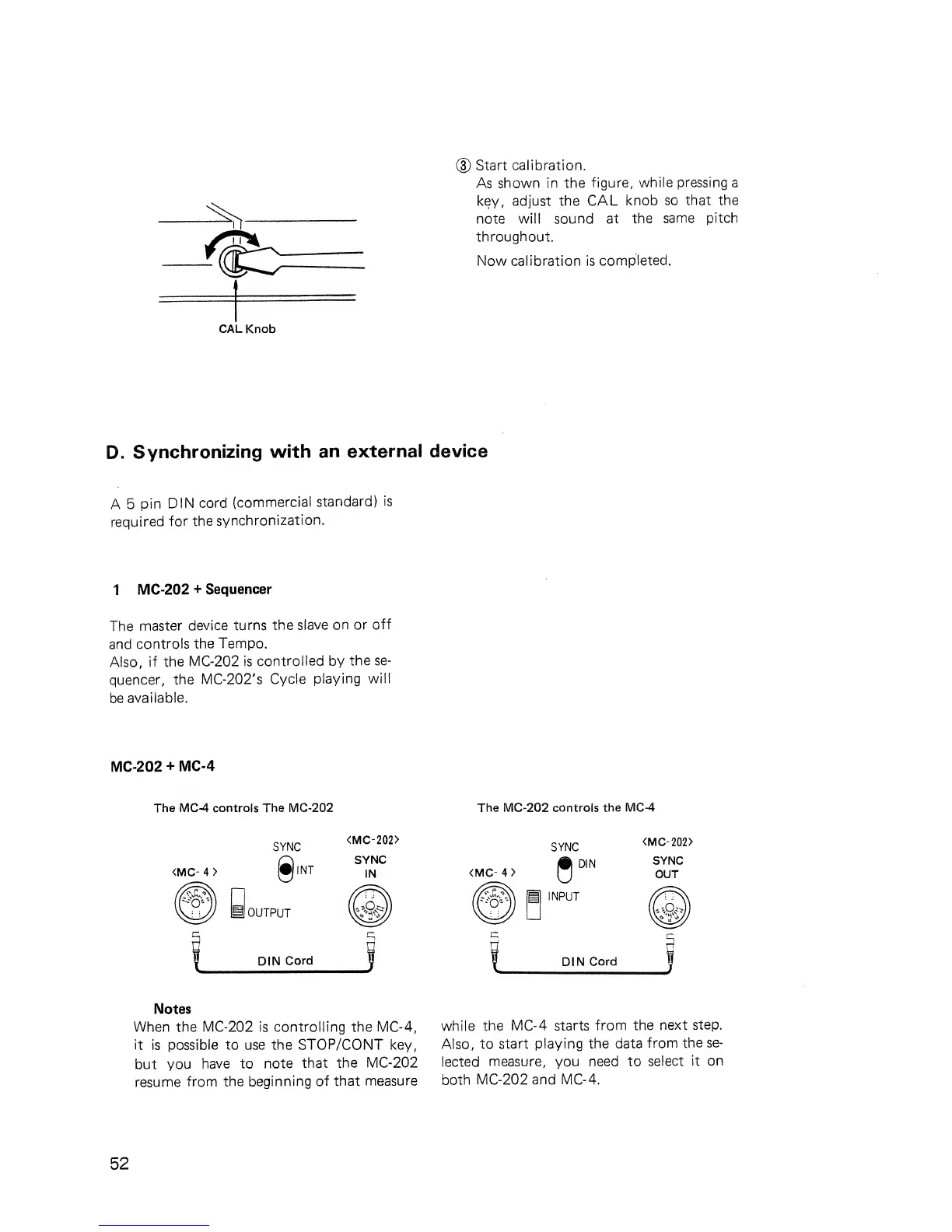

Start
calibration.
As
shown in the
figure,
while pressing
a
key, adjust
the CAL
knob
so that the
note
will
sound
at
the
same pitch
throughout.
Now calibration
is
completed.
CAL
Knob
D.
Synchronizing
with an
external device
A
5
pin
DIN
cord
(commercial
standard)
is
required
for
the
synchronization.
1
IVIC-202
+
Sequencer
The
master
device
turns the
slave
on or
off
and
controls
the
Tempo.
Also,
if the
l\/lC-202 is
controlled by
the se-
quencer,
the
l\/IC-202's
Cycle
playing will
be
available.
MC-202
+
MC-4
The MC-4
controls The MC-202
The
MC-202
controls
the MC-4
SYNC
<MC-202>
<MC-
4
>
INT
OUTPUT
DIN
Cord
SYNC
<MC-202>
<MC-4>
DIN
INPUT
DIN
Cord
Notes
When the MC-202 is controlling the MC-4,
it
is
possible to use
the
STOP/CONT key,
but
you
have to
note
that the MC-202
resume
from
the
beginning of
that measure
while
the MC-4 starts
from
the
next step.
Also, to
start playing
the data
from the
se-
lected
measure, you need to
select it
on
both
MC-202 and MC-4.
52
