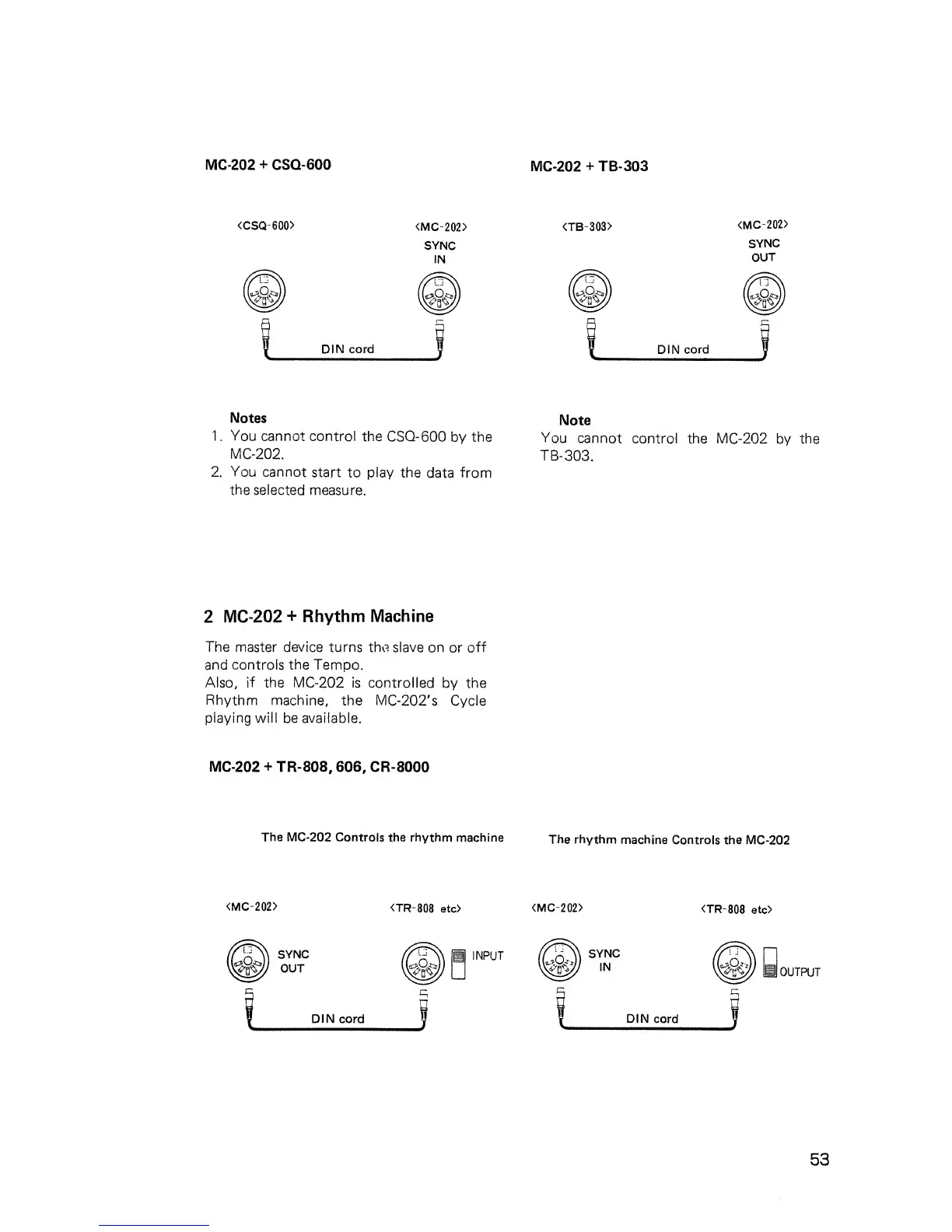

Roland MC-202 - B. Rear Panel Layout

IVIC-202
+
CSQ-600
MC-202
+
TB-303
<CSQ-600>
<MC-202>
SYNC
IN
<TB-303>
<MC-202>
SYNC
OUT
DIN cord
DIN
cord
Notes
1
.
You
cannot control
the
CSQ-600
by the
MC-202.
2.
You
cannot
start
to
play
the
data from
the selected measure.
Note
You
cannot
control
the MC-202
by
the
TB-303.
2 IVIC-202
+
Rhythm Machine
The
master
device
turns tho slave
on or off
and controls
the
Tempo.
Also,
if
the
MC-202
is controlled
by
the
Rhythm machine,
the MC-202's
Cycle
playing will
be
available.
MC-202
+
TR-808,
606,
CR-8000
The !\/IC-202
Controls the rhythm
machine
The rhythm
machine
Controls the MC-202
<MC-202>
<TR-808
etc>
<MC-202>
<TR-808
etc>
SYNC
OUT
DIN cord
INPUT
SYNC
IN
DIN cord
B
OUTPUT
