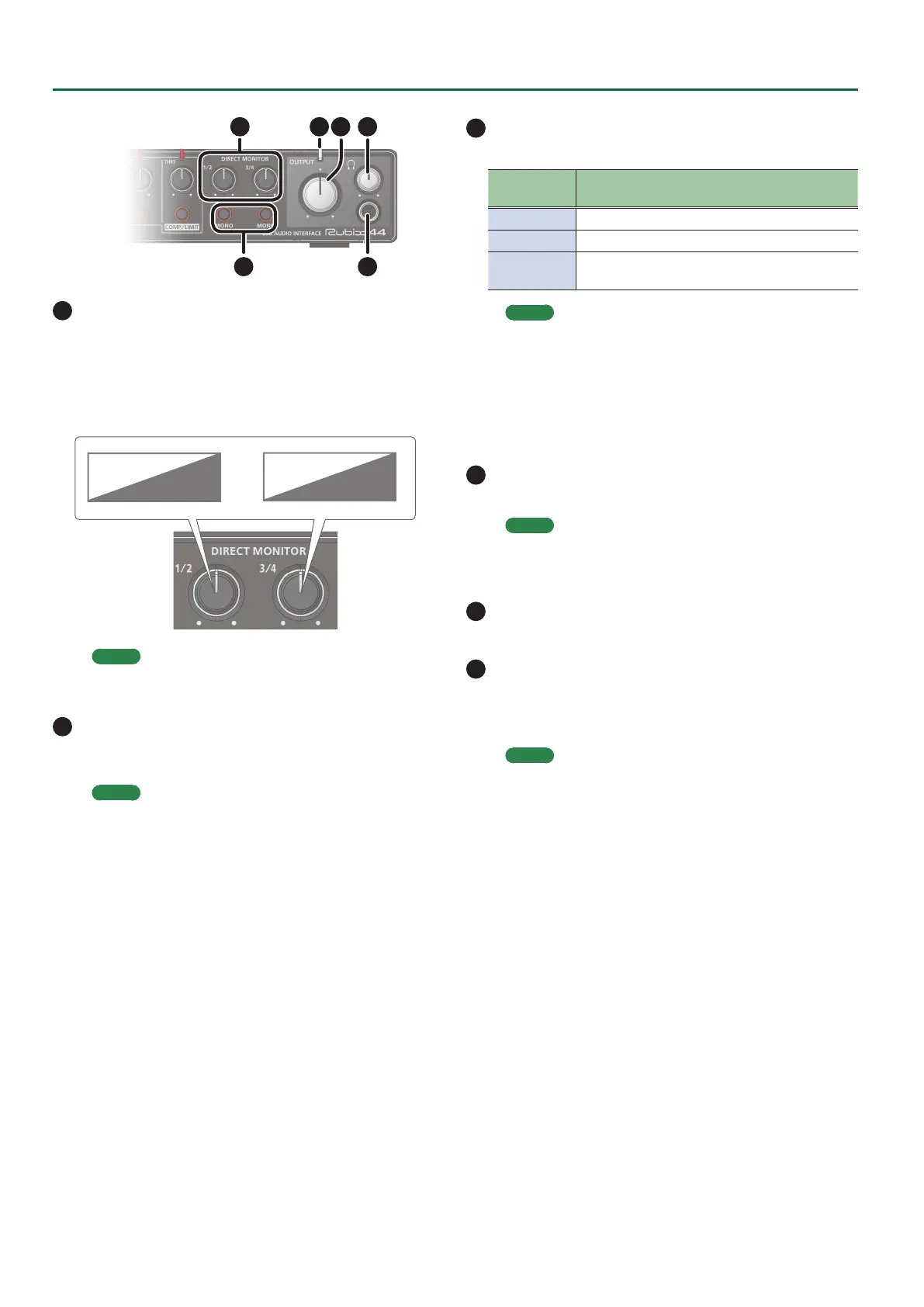

Panel Descriptions
1410
1211 139
9
DIRECT MONITOR [1/2], [3/4] knobs
Adjust the balance at which the audio signals that are input to the
INPUT (1L, 2R) jacks and INPUT (3L, 4R) jacks are output to
OUTPUT (1L, 2R).
When using soft monitoring on your DAW, turn these knobs all the
way to the left.
Output balance
INPUT (3L, 4R)
100%
0%
INPUT (1L, 2R)
MEMO
Sometimes you might hear noise when turning this knob, but
this is not a malfunction.
10
[MONO] button
If this is turned on, the audio signal that is input to the INPUT (1L, 2R)
jacks (or INPUT (3L, 4R) jacks) is monitored in mono.
MEMO
5 When a guitar or microphone is connected to the INPUT 1L
jack and nothing is connected to the INPUT 2R jack, set the
[MONO] button to “ON.”
5 Even when set to “MONO,” a stereo audio signal is output
from the Rubix44’s USB port.
11
Power indicator
Indicates the status of the connection with a USB device.
Power
indicator
Status
Lit Connected to a computer or iPad.
Unlit Not connected to a computer or iPad.
Rapid
blinking
The power will soon be turned o automatically
by the auto power o function.
MEMO
This unit automatically powers-o in the following conditions
(Auto O function).
5 The unit is not connected to a computer or tablet
5 There has been no audio input for 10 hours
Five minutes before the power turns o automatically, the
power indicator blinks rapidly. After the unit switches o, turn
the power on if you want to use the Rubix44 again.
12
[OUTPUT] knob
Adjusts the output level of the audio signal.
MEMO
Adjusting the [OUTPUT] knob does not change the
volume that is output to the Q (headphones) jack or the
OUTPUT (3L, 4R) jacks.
13
[Q] (Headphone) knob
Adjusts the output level of the Q jack.
14
Q (Headphone) jack
Used to connect headphones.
The audio signal selected by the [PHONES SOURCE] switch is
output.
MEMO
Even if headphones are connected, sound will be output from
the OUTPUT (1L, 2R) jacks.
