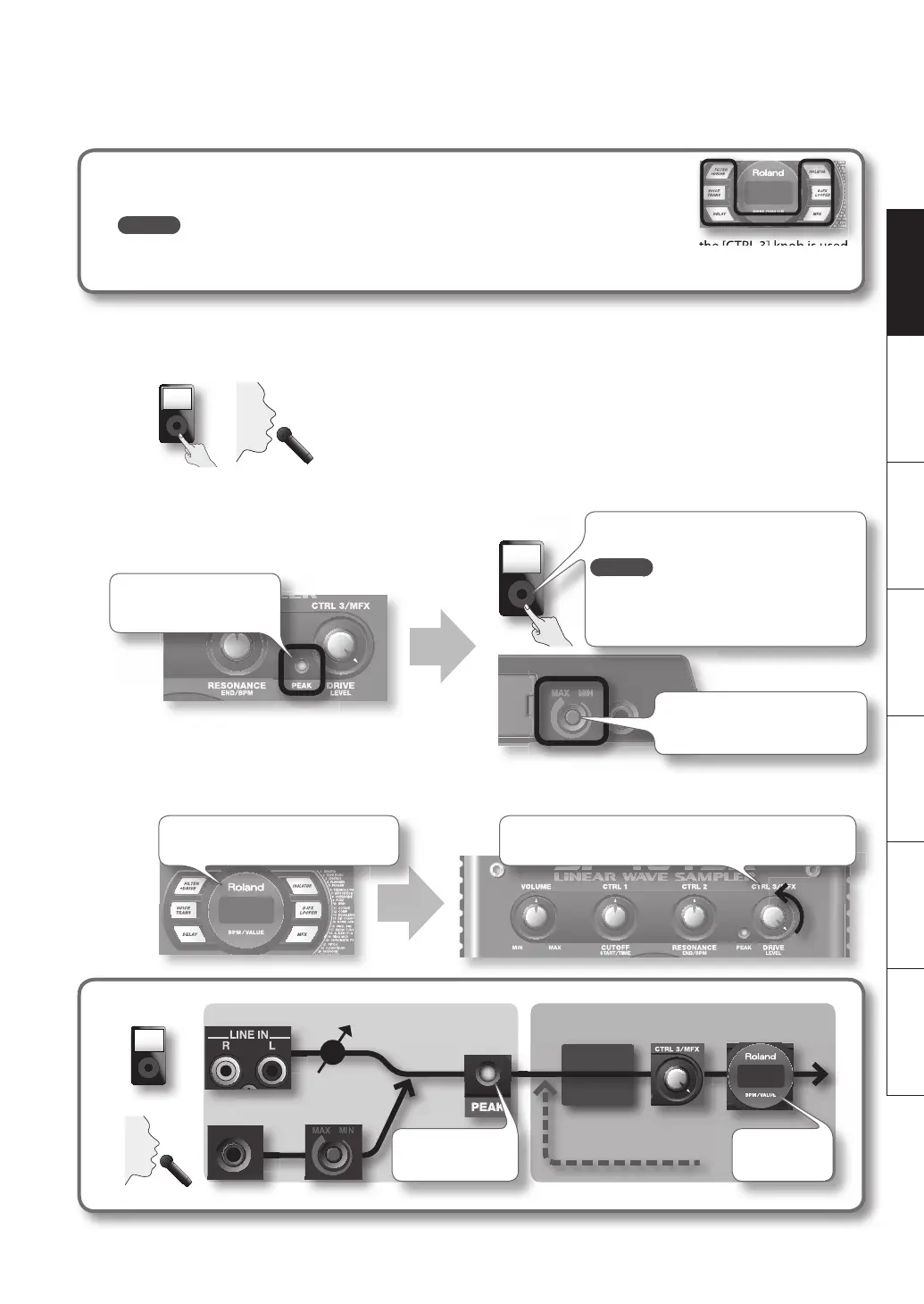

Applying an e ect while you sample
By pressing an e ect button at this time, you can sample the sound processed by the e ect.
MEMO
In this case, you can use the [CTRL 1] and [CTRL 2] knobs to adjust the e ect settings. Because the [CTRL 3] knob is used
to adjust the digital input level, it cannot be used to adjust the e ect settings.
In this case, you can use the [CTRL 1] and [CTRL 2] knobs to adjust the e ect settings. Because the [CTRL 3] knob is used
In this case, you can use the [CTRL 1] and [CTRL 2] knobs to adjust the e ect settings. Because the [CTRL 3] knob is used
In this case, you can use the [CTRL 1] and [CTRL 2] knobs to adjust the e ect settings. Because the [CTRL 3] knob is used
6. Adjust the recording level
6-1. Produce sound on the device that’s connected to the SP-404SX (if you’re using a mic, vocalize into the
mic).
6-2. Adjust the volume of the device (e.g., portable music player) connected to the SP-404SX so that the
PEAK indicator lights occasionally.
Adjust the volume of your audio source (e.g.,
portable music player)
MEMO
If the volume of your device is not adjustable,
and the PEAK indicator stays lit, set the SP-
404SX’s input gain to “-10 dB” as described on p. 39.
If you’re using a mic, turn the [ MIC
LEVEL] knob to adjust the level.
The PEAK indicator should
light occasionally
6-3. If the display illumination lights red, the internal digital input level is excessive; turn the [CTRL 3] knob
toward the left until the display does not illuminate red.
If this lights red, the digital input level is
too high!
Turn the [CTRL 3] knob all the way to the right, and then turn it
toward the left until the red illumination no longer appears.
Signal fl ow
LINE IN jacks
[CTRL 3]
knob
Display illumination
MIC IN jack
PEAK
indicator
Input Gain
Refer to p. 39
[MIC IN]
knob
Eff ects
Resampling
Analog signal Digital signal
Adjust so this
lights occasionally
If lit red, level
is too high!

Roland SP-404SX Specifications

General

Display type	LED
Built-in display	Yes
Display number of characters	3
Bit rate	16 bit
Sample rate	44.1 kHz
Number of pads	13
Number of samples	120
Maximum polyphony (notes)	12
Battery type	AA
Battery voltage	9 V
Power source type	AC, Battery
Number of batteries supported	6
Compatible memory cards	SD
Included memory card size	1 GB

Weight and Dimensions

Depth	257 mm
Width	178 mm
Height	72 mm
Weight	1200 g
