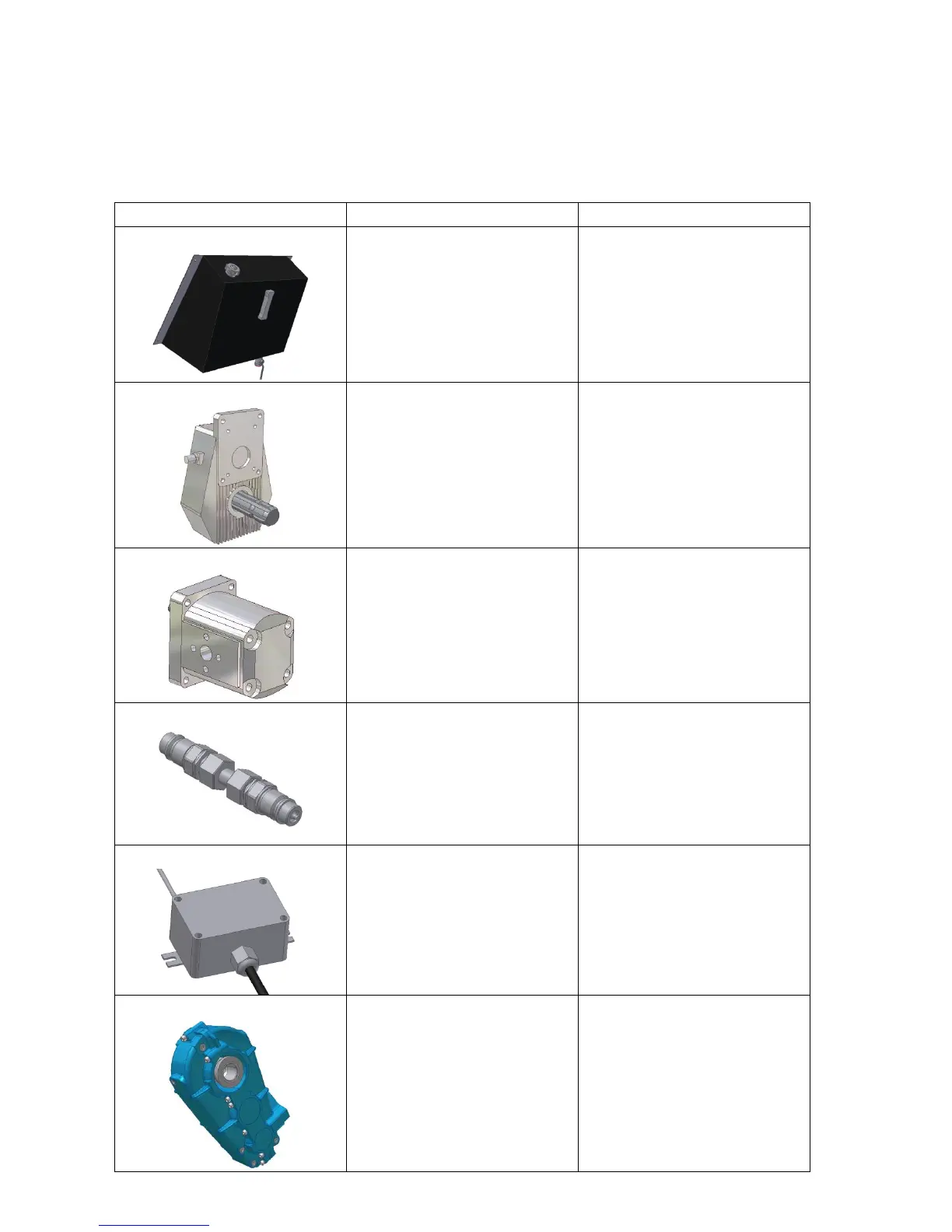

This table explains the function of the components that make up the 18 existing
types of feeds. In the column "relevant system" there are numbers that use the line
advances (for example a two section distributor is used in the feeds 121, 122, 123,
221, 222, 223).
Element
Function
Relevant system
Reservoir
Contains about 80litres of oil
to power the pump (1 oil
change / year or every 200
hours)
Viscosity index: 46
211, 212, 213, 221,
222, 223, 231, 232, 233
Gear box
Allows the PTO running
at 1000 rpm to drive the
pump at 3000 rpm (1 oil
change / year or every
200 hours)
Qty: 0.3 litres max
Viscosity index: 400
211, 212, 213, 221,
222, 223, 231, 232, 233
Pump
Pumps the oil from the
reservoir for distribution
at a rate of 50 l / min at
1000 rpm (PTO)
211, 212, 213, 221,
222, 223, 231, 232, 233
Connector set K1
This set allows
connection and
disconnection of the
pump controller. It is
imperative for its
protection
211, 212, 213, 221,
222,
223, 231, 232, 233
Terminal
Connects all the various
sensors wires into one
harness
112, 113, 122, 123,
132, 133, 212, 213,
222, 223, 232, 233
Réducteur 1/40
Reduces the motor
speed so that the belt
runs at feed rate.
All models
