Procedure for mounting the silage doors (option Rollmax)
Before installing your silage door, you must remove the beater frame of your
spreader. The operation must be performed by your ROLLAND dealer, the only
ones authorised, trained and to have the tools.
Procedure for removal of the tool frame
Disconnect the secondary drive shaft

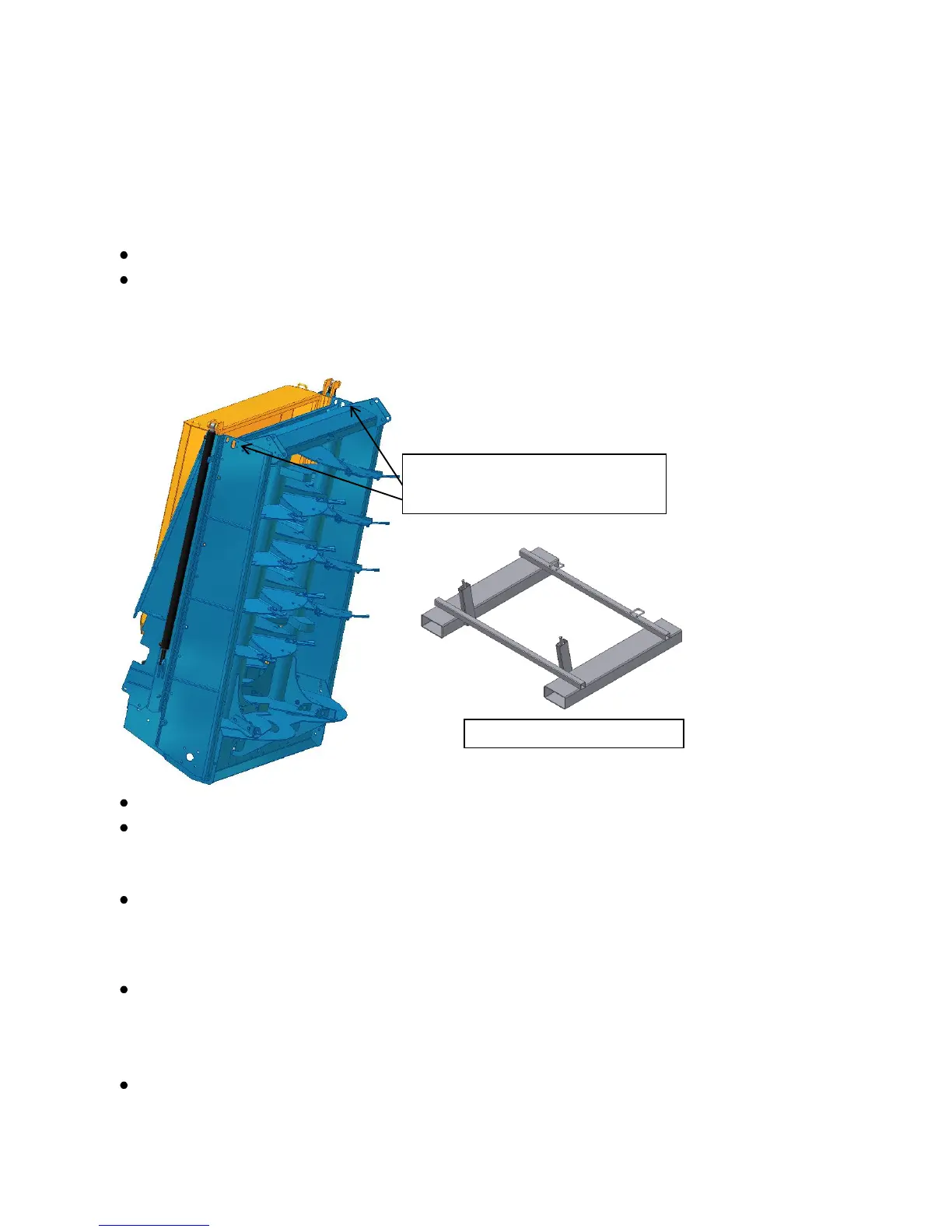

Using slings, hook the framework to an overhead crane (minimum
capacity 2.5 tons for the slings and the crane). The attachment points are
specified in the following diagram. The weight of each subassembly is
specified by stickers.
Loosen and remove the fixing bolts of the body.
Remove the frame using the crane and place it on its support. Fix it to
the support, using the nuts and strap(s) provided. After checking the tightness
and stability, the slings can be removed.
In the absence of a frame support, place the frame flat on the floor on
the hatch side.
Silage panels :
After having smeared with grease, install the rear posts. The grease
facilitates their mounting and demounting because adjustments are optimized
to ensure the tightness of the assembly. Fix to the body of the spreader using
the bolts provided.
Then install the panel (weight approximately 80 kg) using a hoist or a
loader. Lock in place with the pins provided.
